Probe L4-121 2.0L DOHC VIN A MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Master Window/Door Lock Switch
Master Window/Door Lock Switch

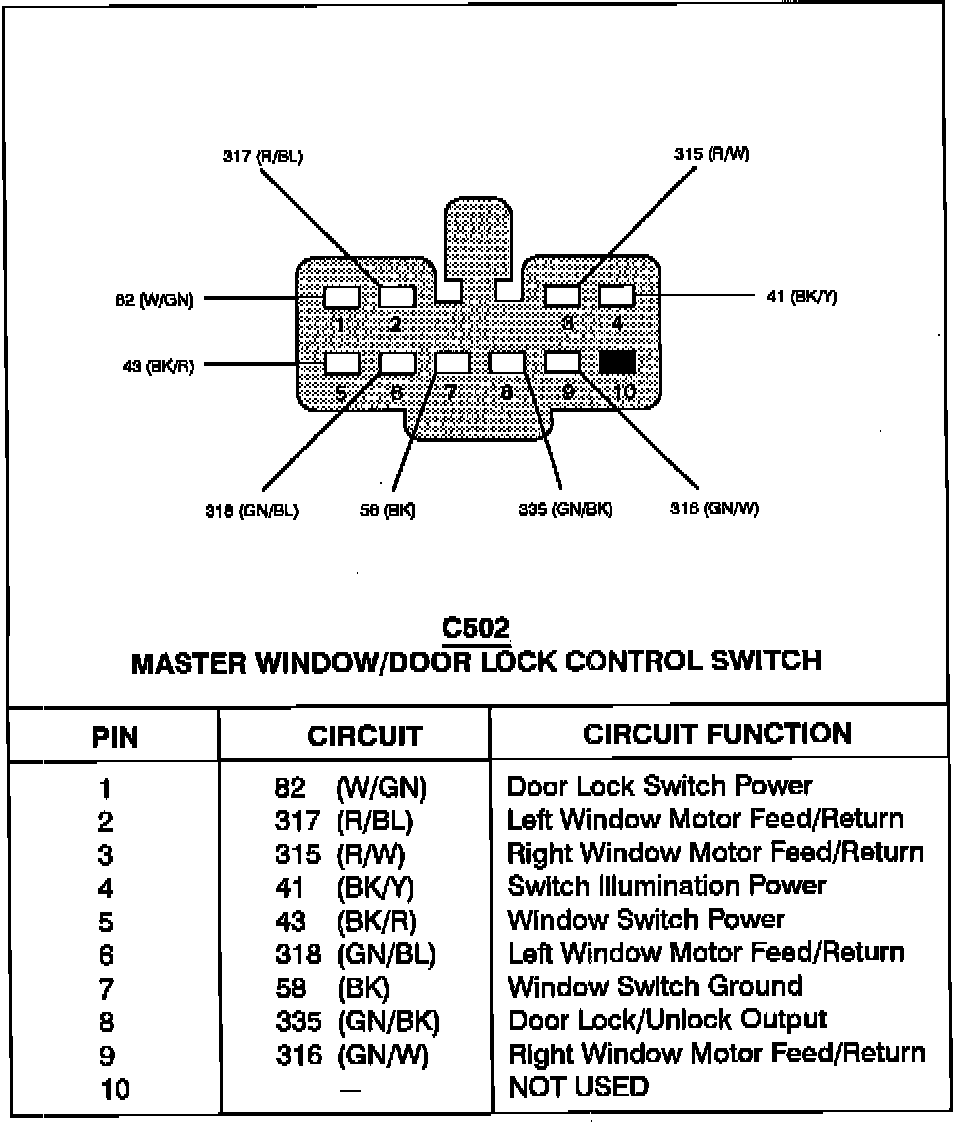

Master Window Control/Door Lock Switch:
