Ford
>>
1994
>>
Probe L4-121 2.0L DOHC VIN A MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor Relay
>>
Low Speed Cooling Fan Relay
Low Speed Cooling Fan Relay

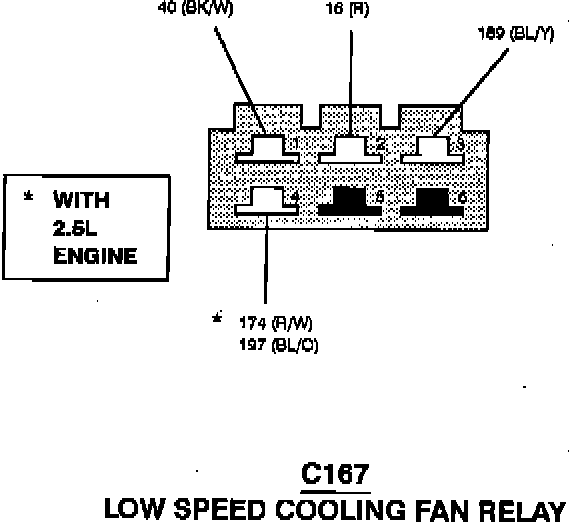

Low Speed Cooling Fan Relay:
