System Diagram
System Diagram

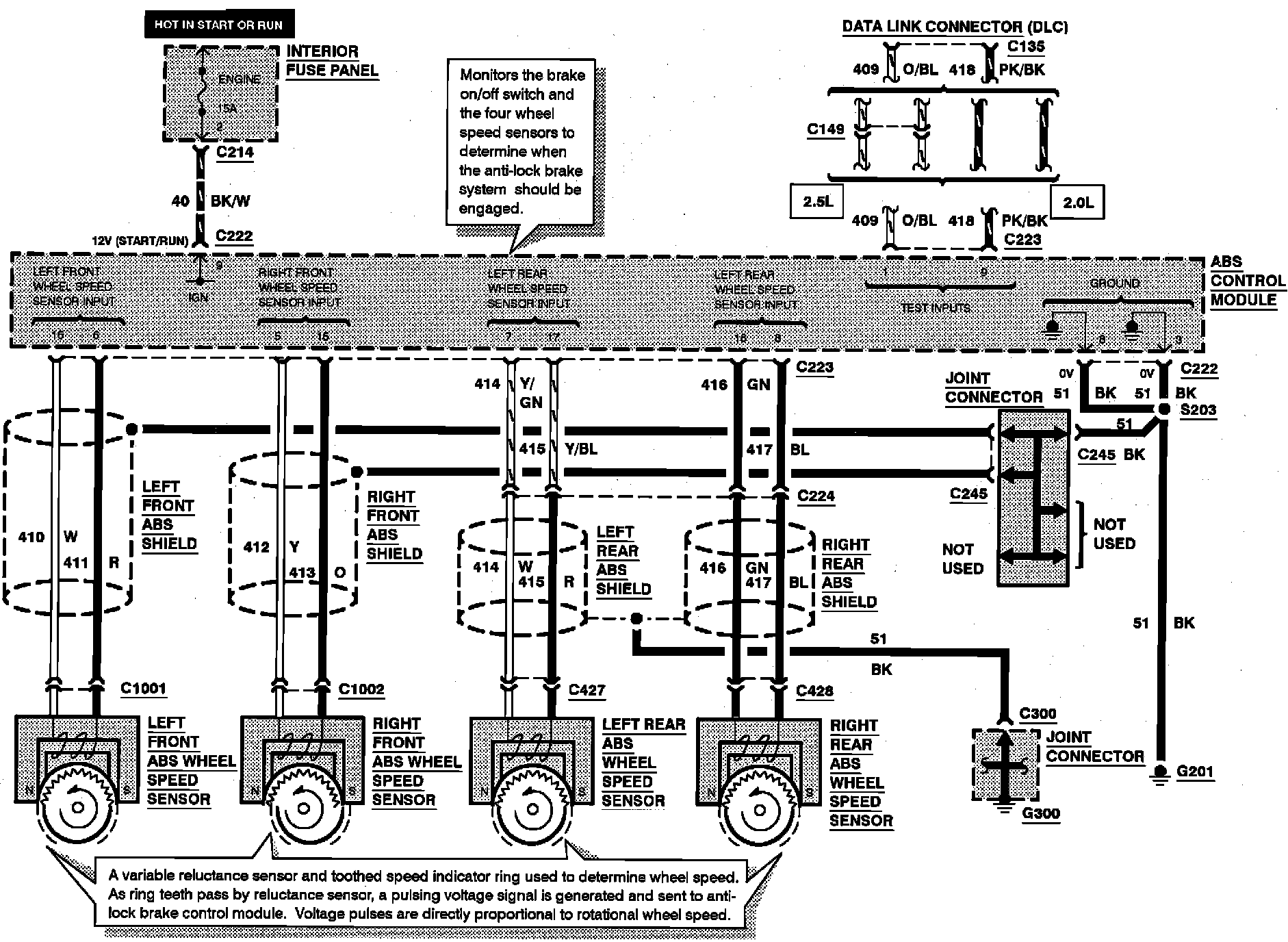

Anti-lock Brake System:

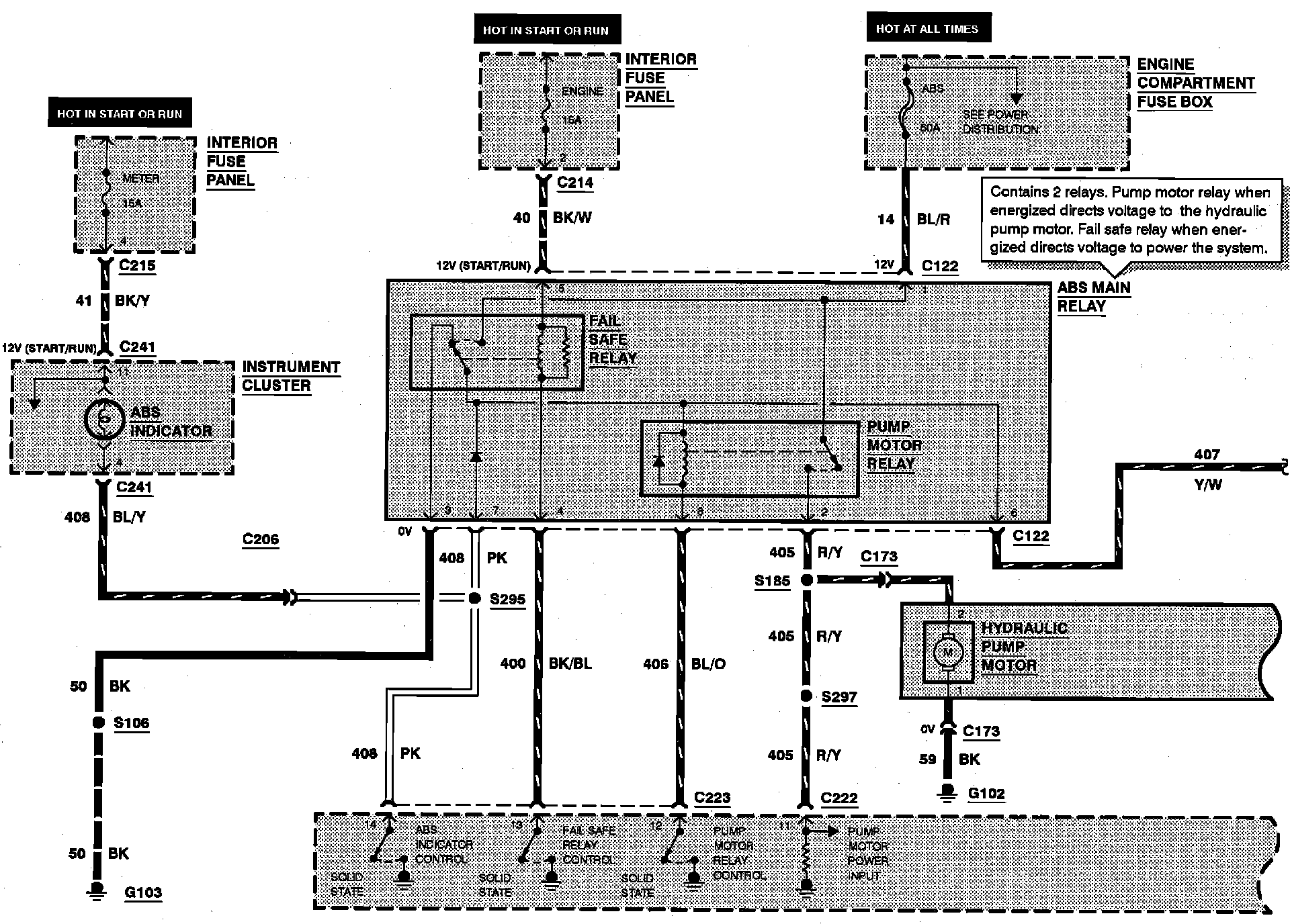

Anti-lock Brake System:

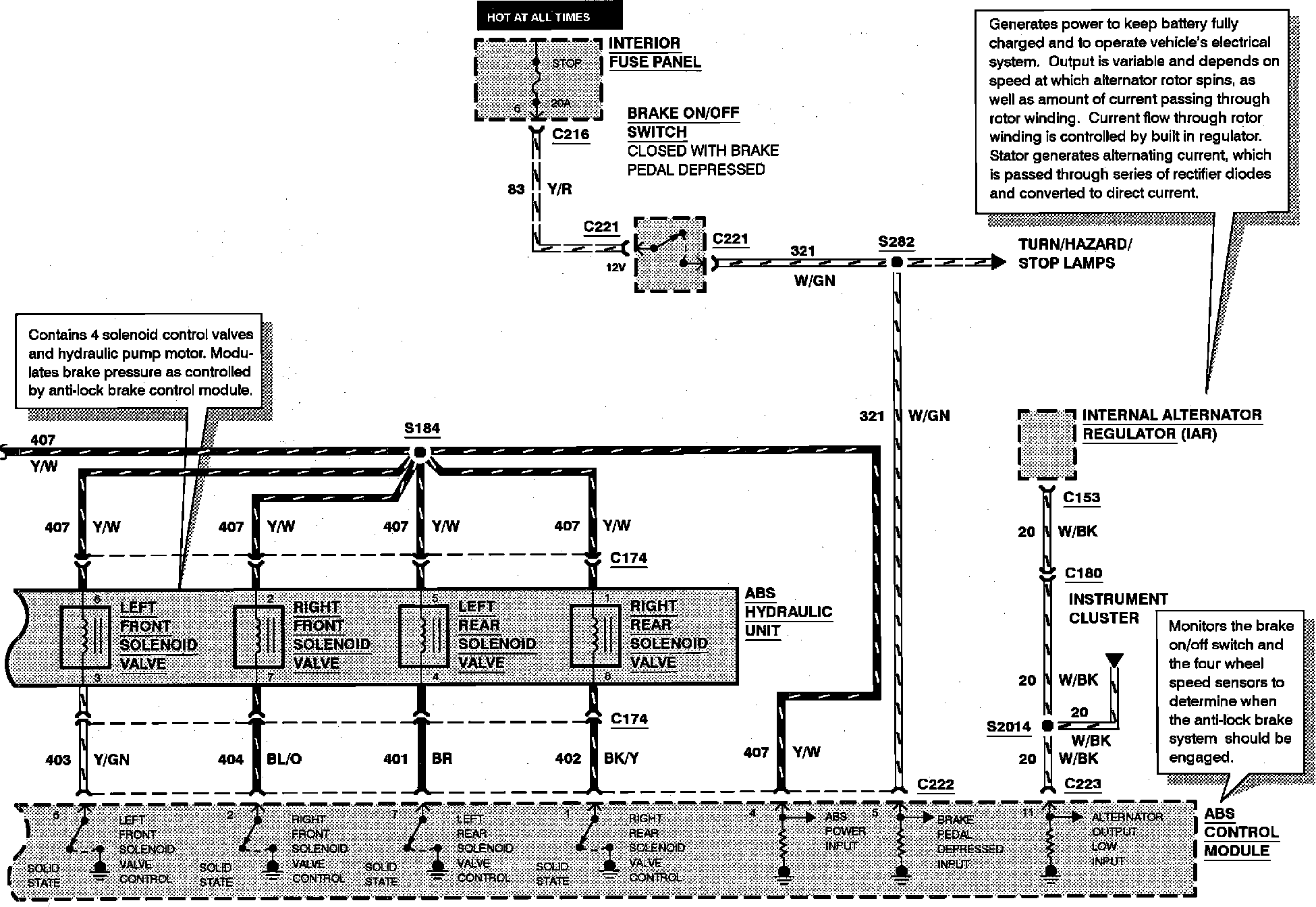

Anti-lock Brake System:
