Home >> Ford >> 1994 >> Probe L4-121 2.0L DOHC VIN A MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

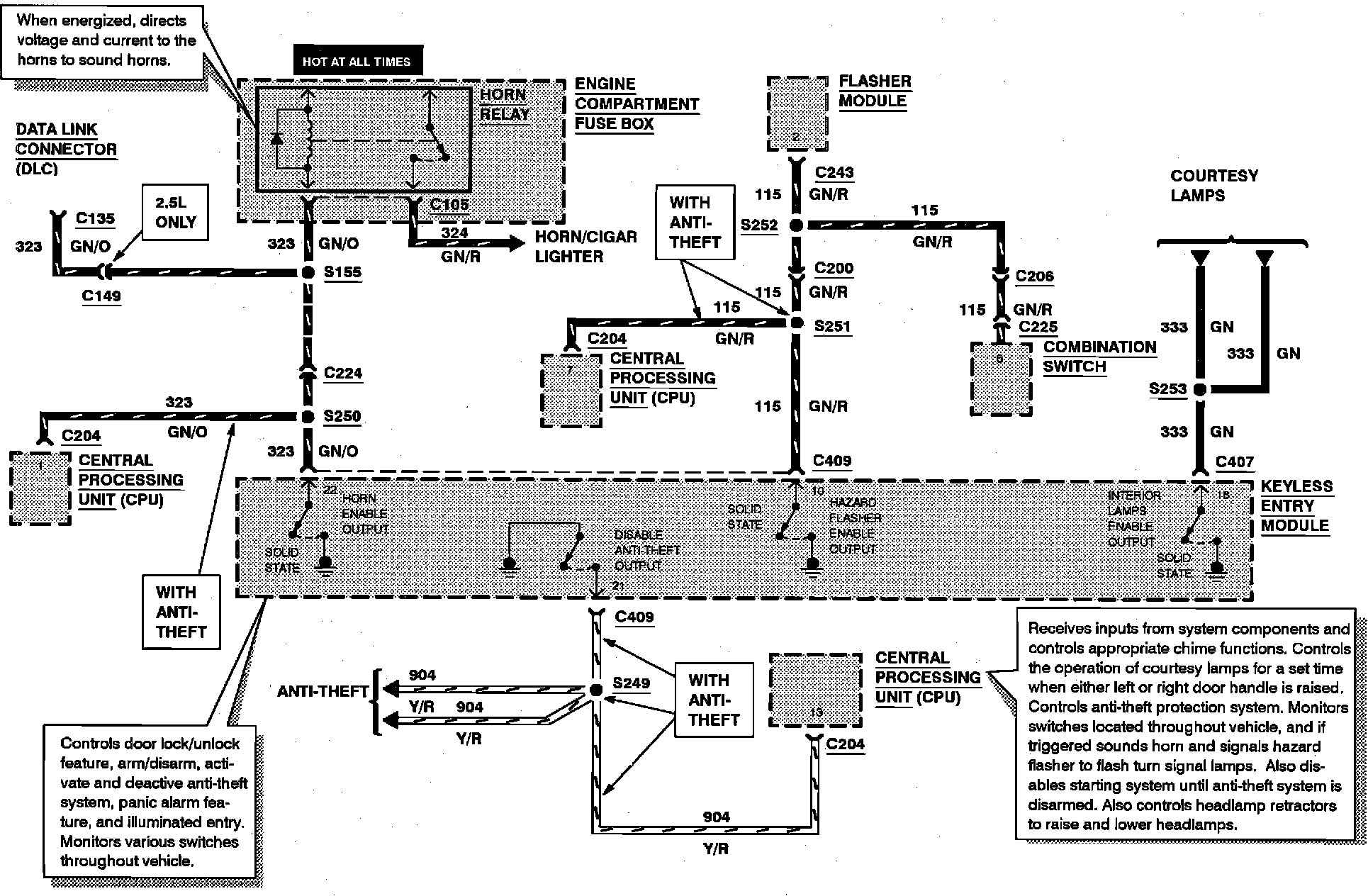

Remote Keyless Entry:



Remote Keyless Entry:
