Fuse STOP

Fuse STOP - Protects the following Circuits :
- Horns
- Stop Lamps
- Shift Lock

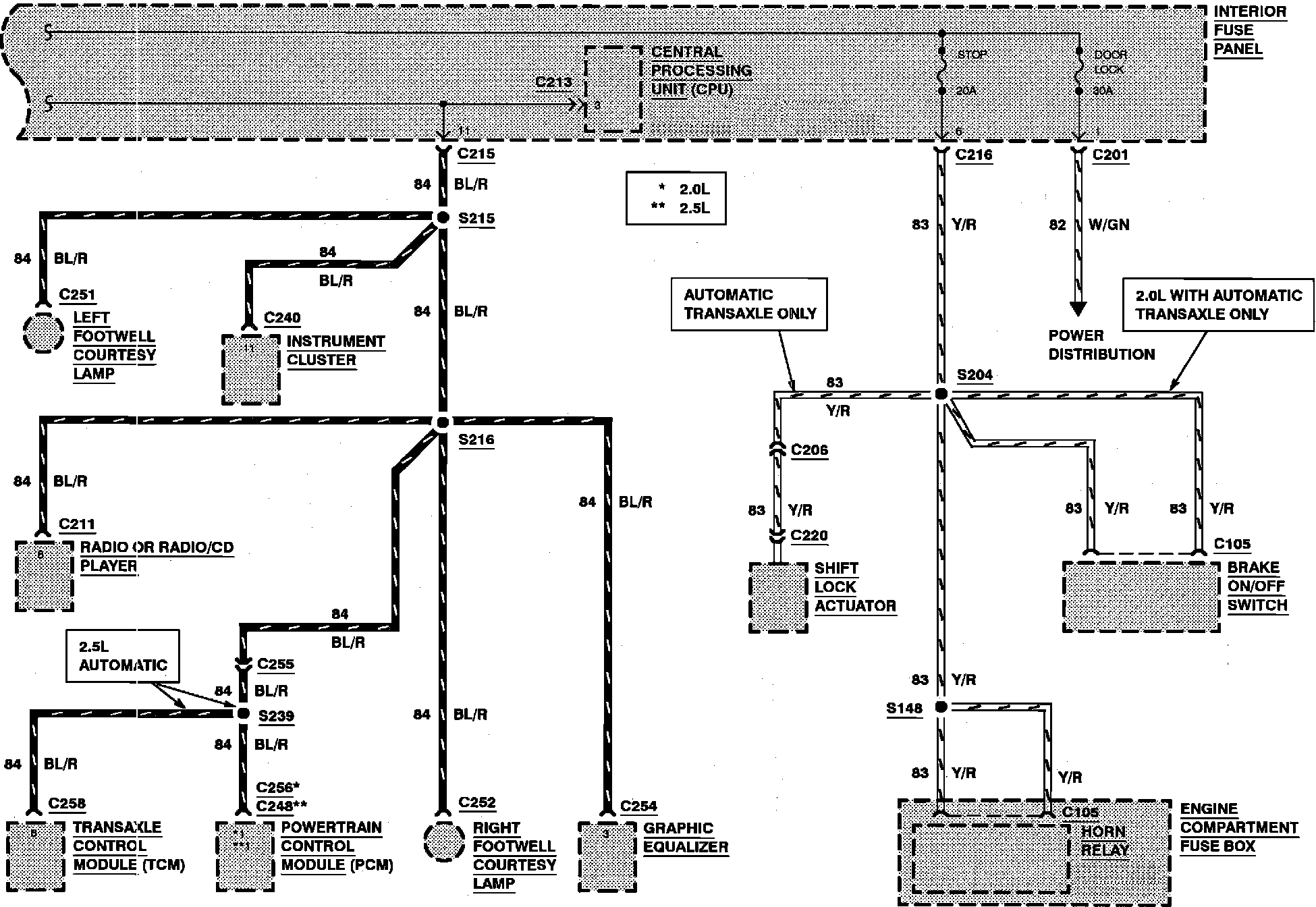

Power Distribution:
