Manual

Electronic Engine Controls:

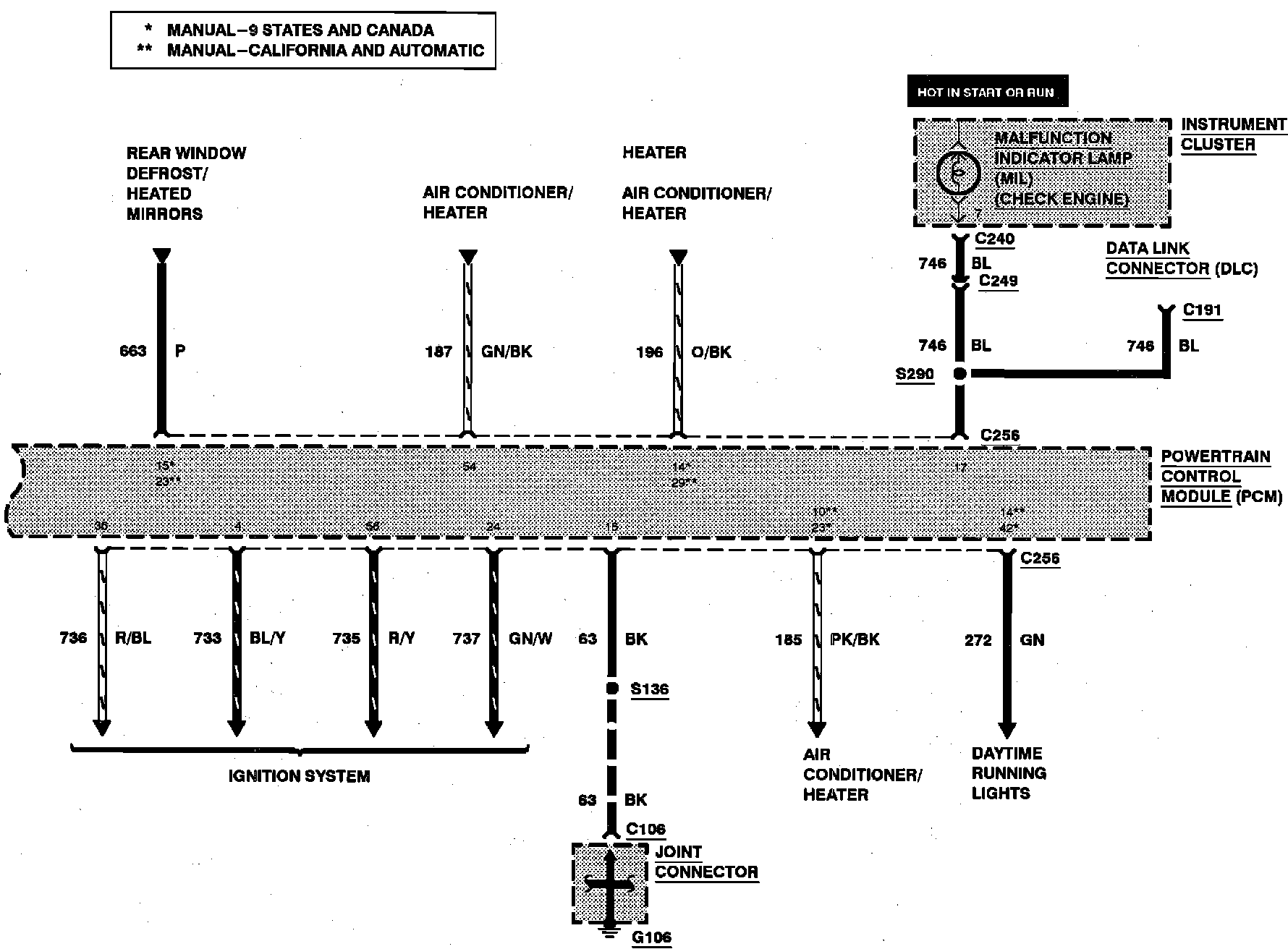

FUEL PUMP RELAY
INERTIA FUEL SHUTOFF (IFS) SWITCH
PCM POWER RELAY

Electronic Engine Controls:

HEATED OXYGEN SENSOR (HO2S)
MASS AIR FLOW (MAF) SENSOR

Electronic Engine Controls:

EGR SOLENOID VALVE (VACUUM)
FPRC SOLENOID VALVE
FUEL INJECTORS
IDLE AIR CONTROL (IAC) SOLENOID VALVE

Electronic Engine Controls:

CANISTER PURGE (CANP) SOLENOID VALVE
EGR SOLENOID VALVE (VENT)

Electronic Engine Controls:

EGR VALVE POSITION (EVP) SENSOR (CALIFORNIA ONLY)
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
INTAKE AIR TEMPERATURE (IAT) SENSOR
THROTTLE POSITION SENSOR

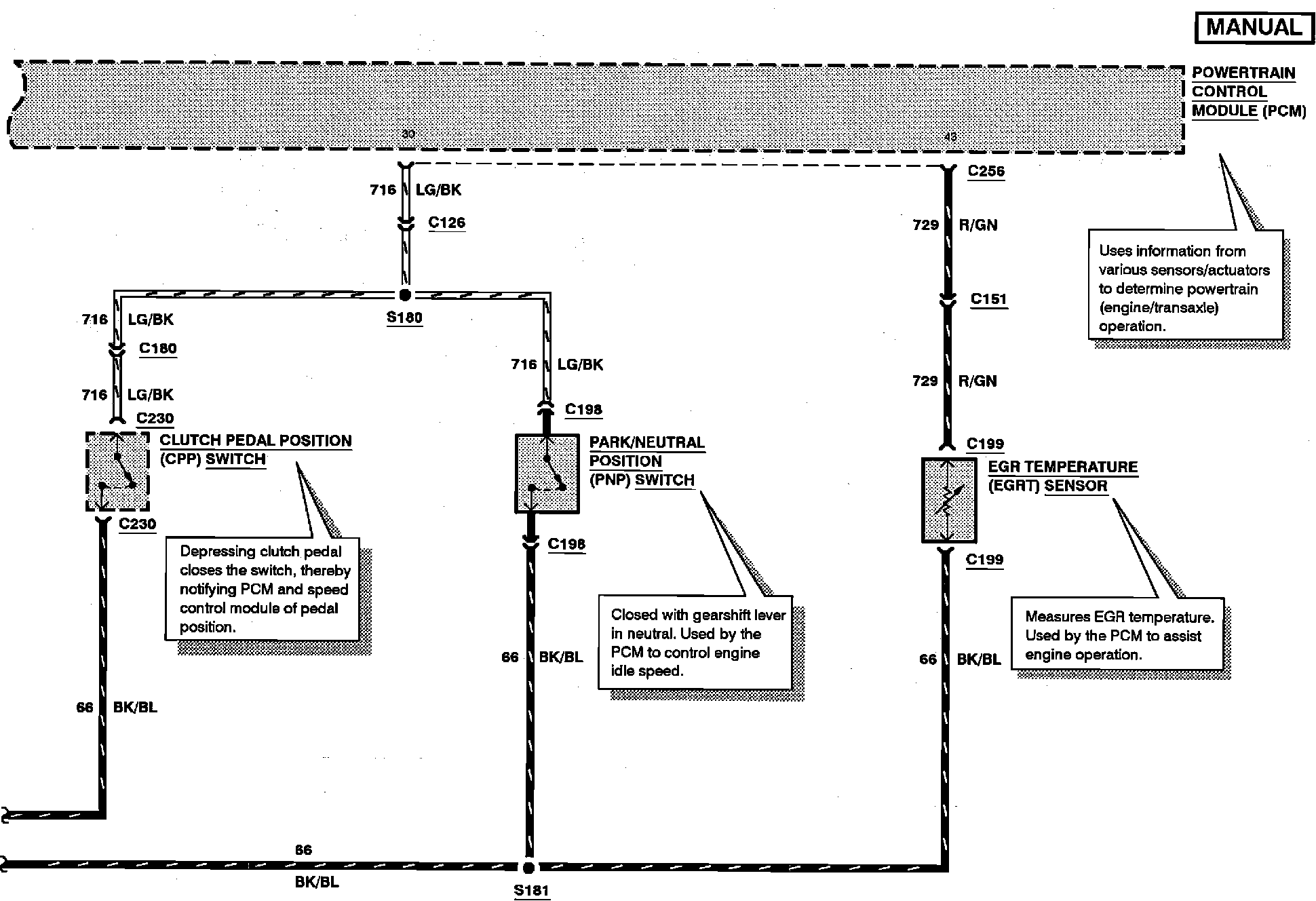

Electronic Engine Controls:

CLUTCH PEDAL POSITION (CPP) SWITCH
EGR TEMPERATURE (EGRT) SENSOR
PARK/NEUTRAL POSITION (PNP) SWITCH

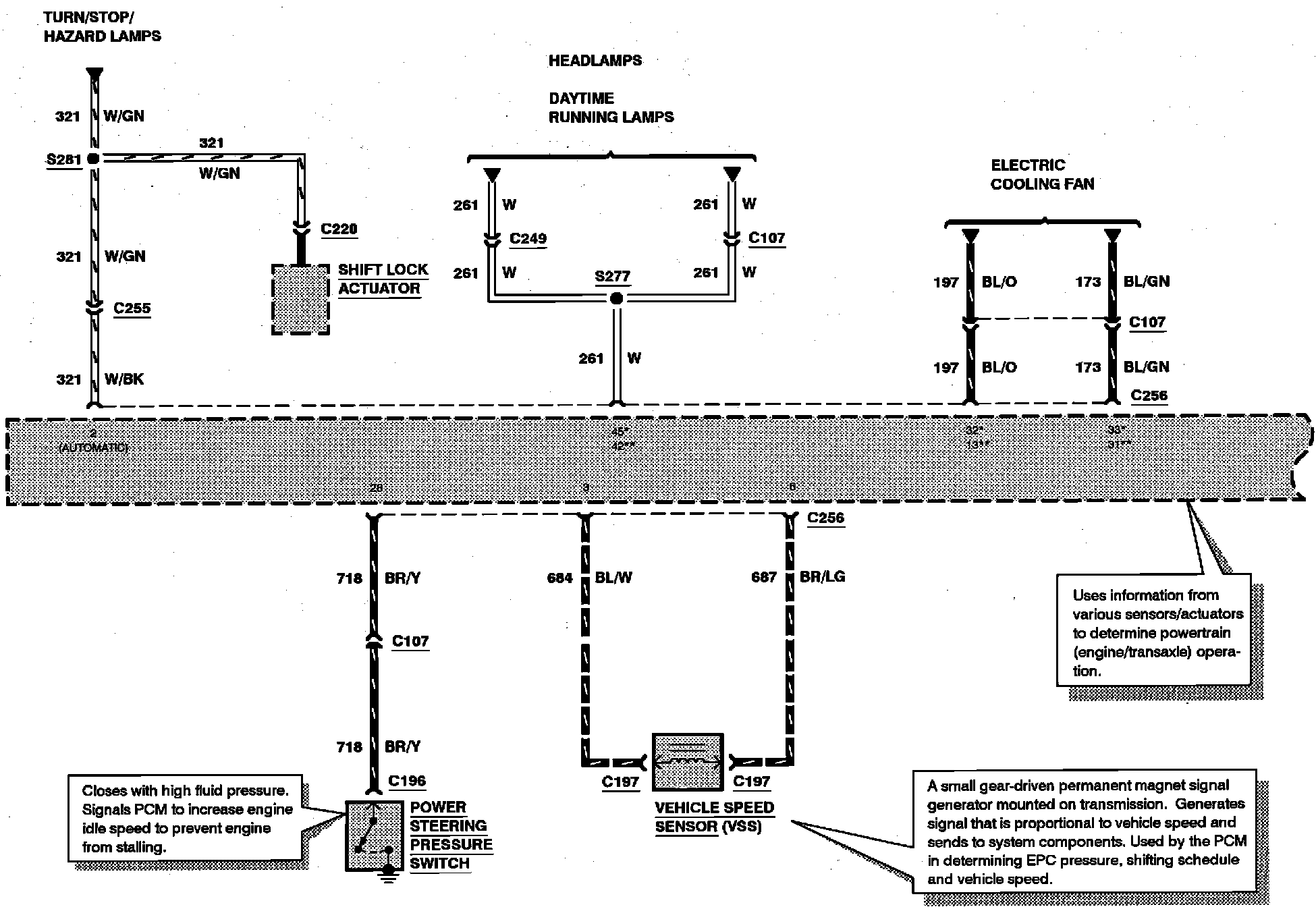

Electronic Engine Controls:

POWER STEERING PRESSURE SWITCH
VEHICLE SPEED SENSOR (VSS)
