Radio (With CD Player Graphic Equalizer & Subwoofer)

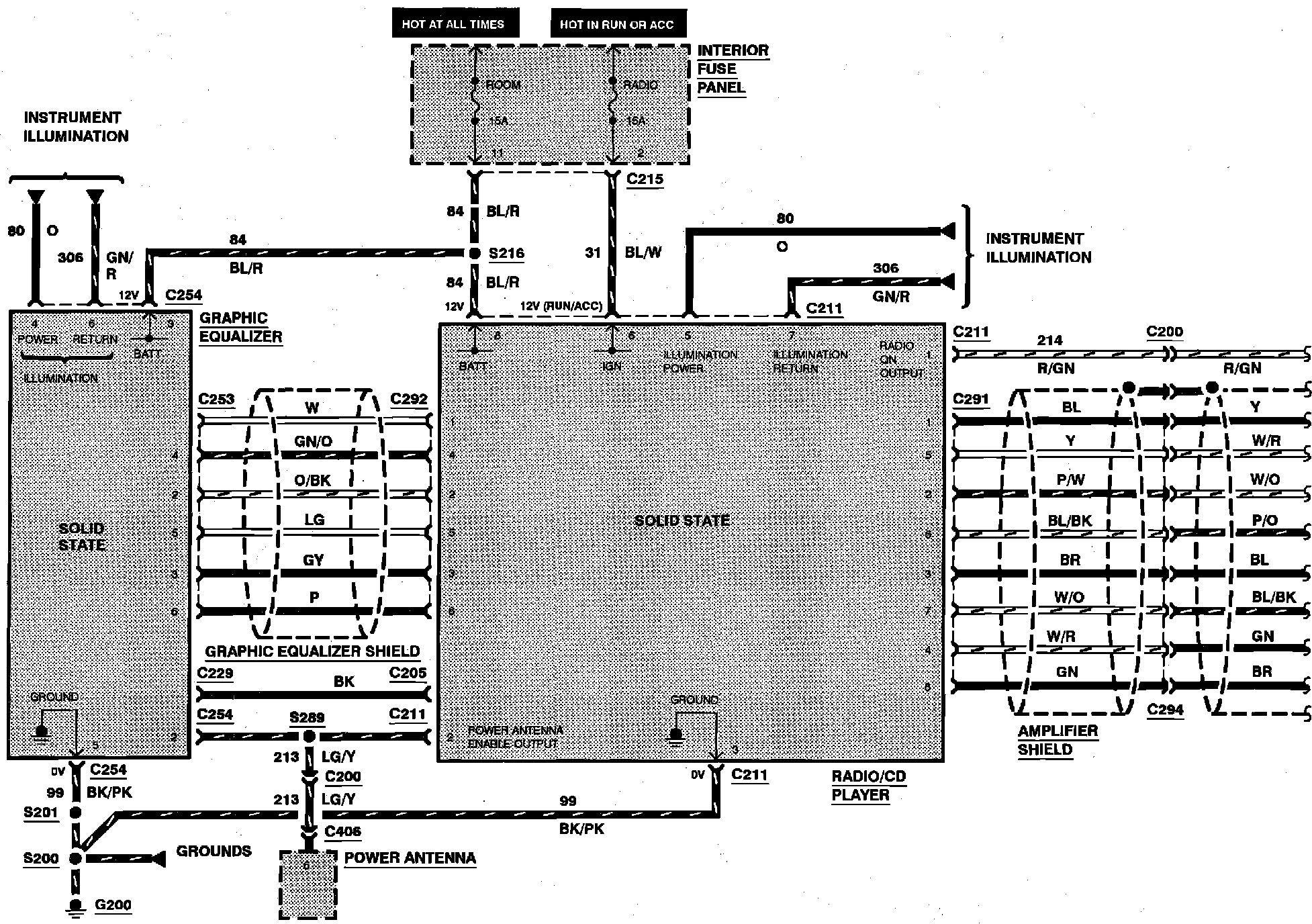

Radio (Premium Sound With CD Player, Graphic Equalizer And Subwoofer):

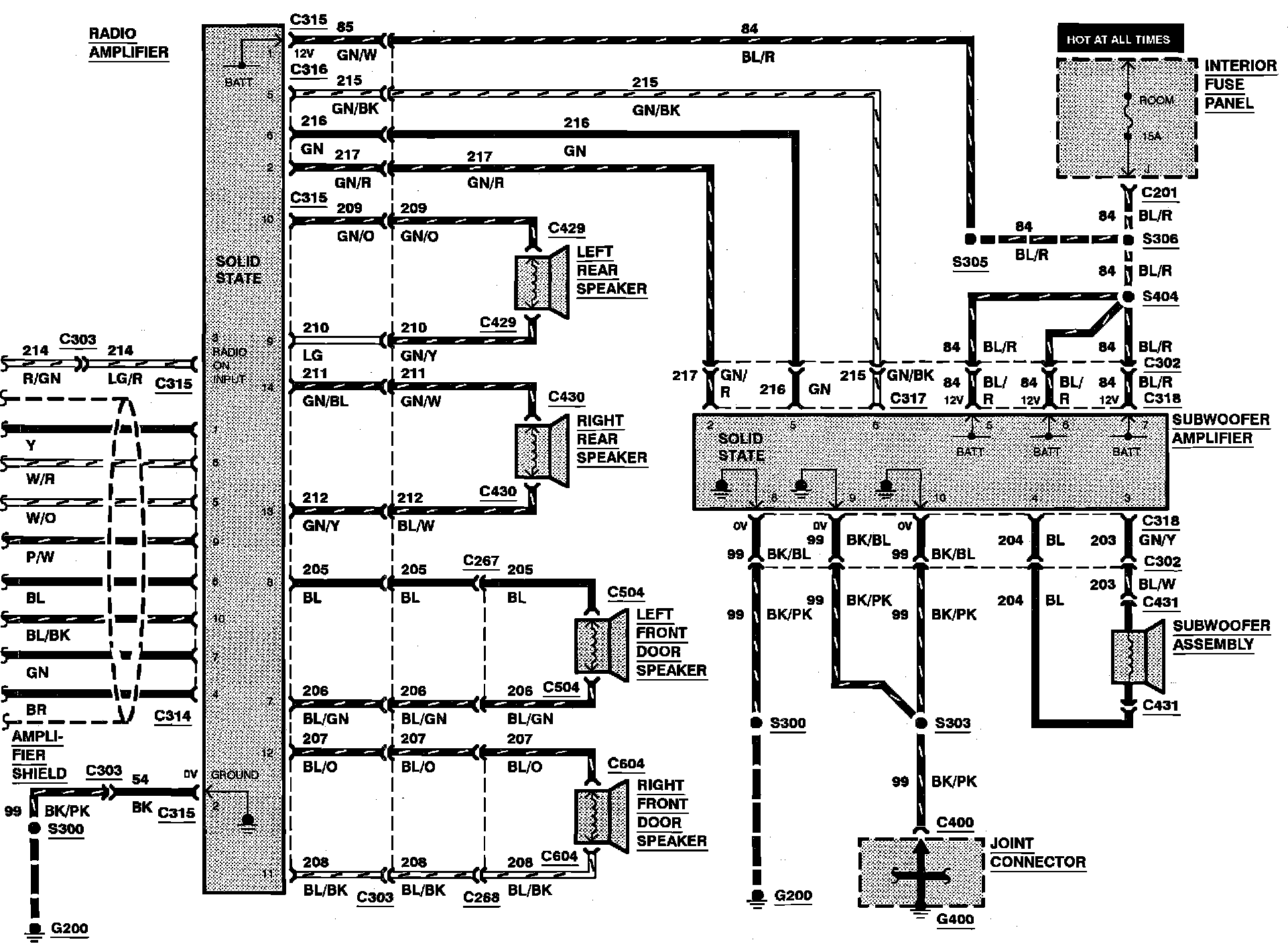

Radio (Premium Sound With CD Player, Graphic Equalizer And Subwoofer):
