Behind Instrument Panel Views

Component Locations:

A/C-HEATER CONTROL ASSEMBLY (WITH A/C)
ANTI-THEFT CONTROL UNIT
BLOWER ASSEMBLY
CENTRAL PROCESSING UNIT (CPU)
CIGAR LIGHTER
GRAPHIC EQUALIZER
HEATER CONTROL ASSEMBLY (WITHOUT A/C)
INSTRUMENT CLUSTER
INTERIOR FUSE PANEL
LIFTGATE WASHER SWITCH
LIFTGATE WIPER SWITCH
PARK RANGE SWITCH
RADIO OR RADIO/CD PLAYER
REAR WINDOW DEFROST SWITCH
SHIFT LOCK ACTUATOR
SPEED CONTROL SWITCH ASSEMBLY

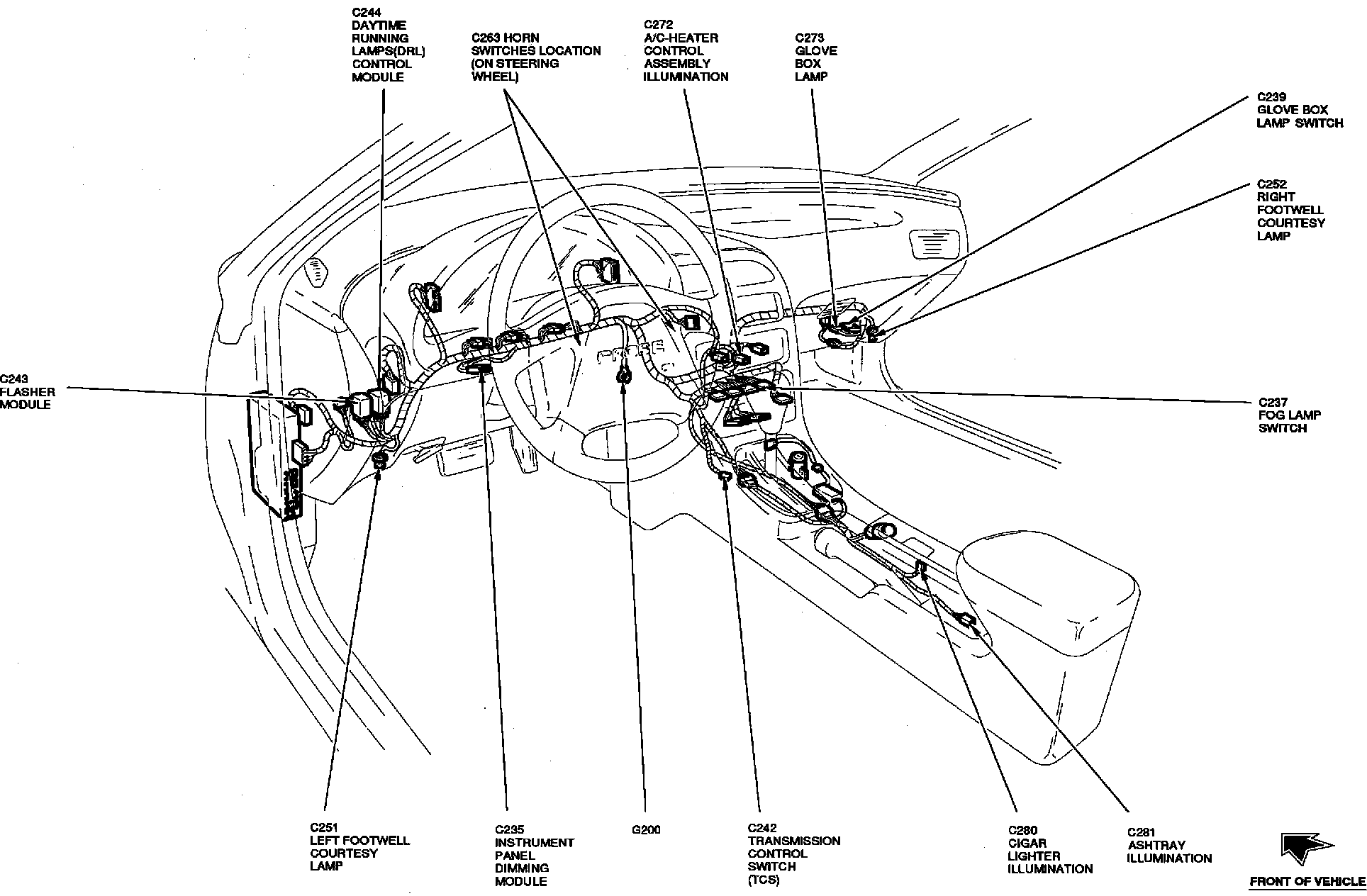

Component Locations:

A/C-HEATER CONTROL ASSEMBLY ILLUMINATION
ASHTRAY ILLUMINATION
CIGAR LIGHTER ILLUMINATION
DAYTIME RUNNING LAMPS (DRL) CONTROL MODULE
FLASHER MODULE
FOG LAMP SWITCH
GLOVE BOX LAMP
GLOVE BOX LAMP SWITCH
HORN SWITCHES (ON STEERING WHEEL)
INSTRUMENT PANEL DIMMING MODULE
LEFT FOOTWELL COURTESY LAMP
RIGHT FOOTWELL COURTESY LAMP
TRANSMISSION CONTROL SWITCH (TCS)
