Block Diagrams

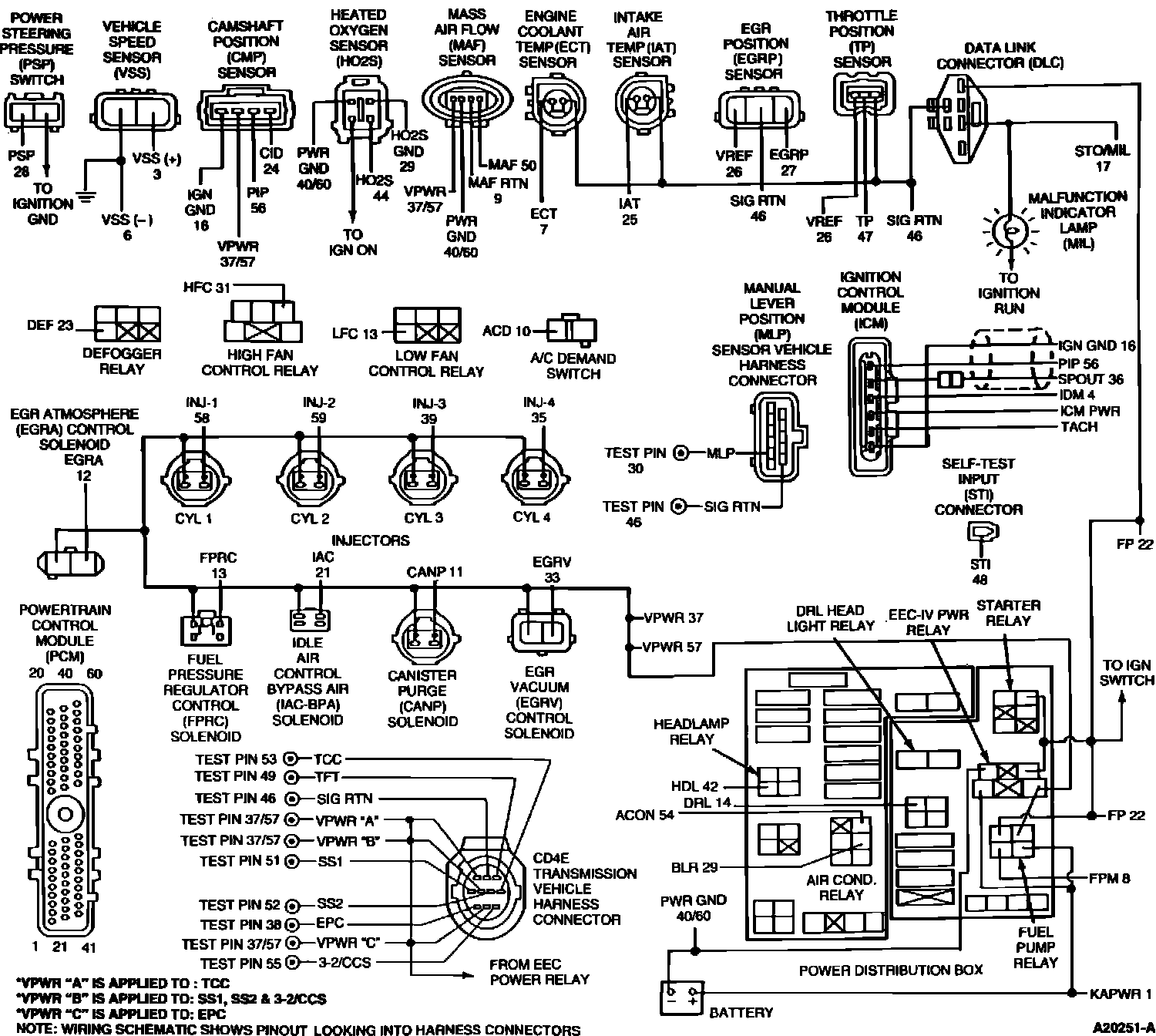

49 STATES

Electrical Schematic:

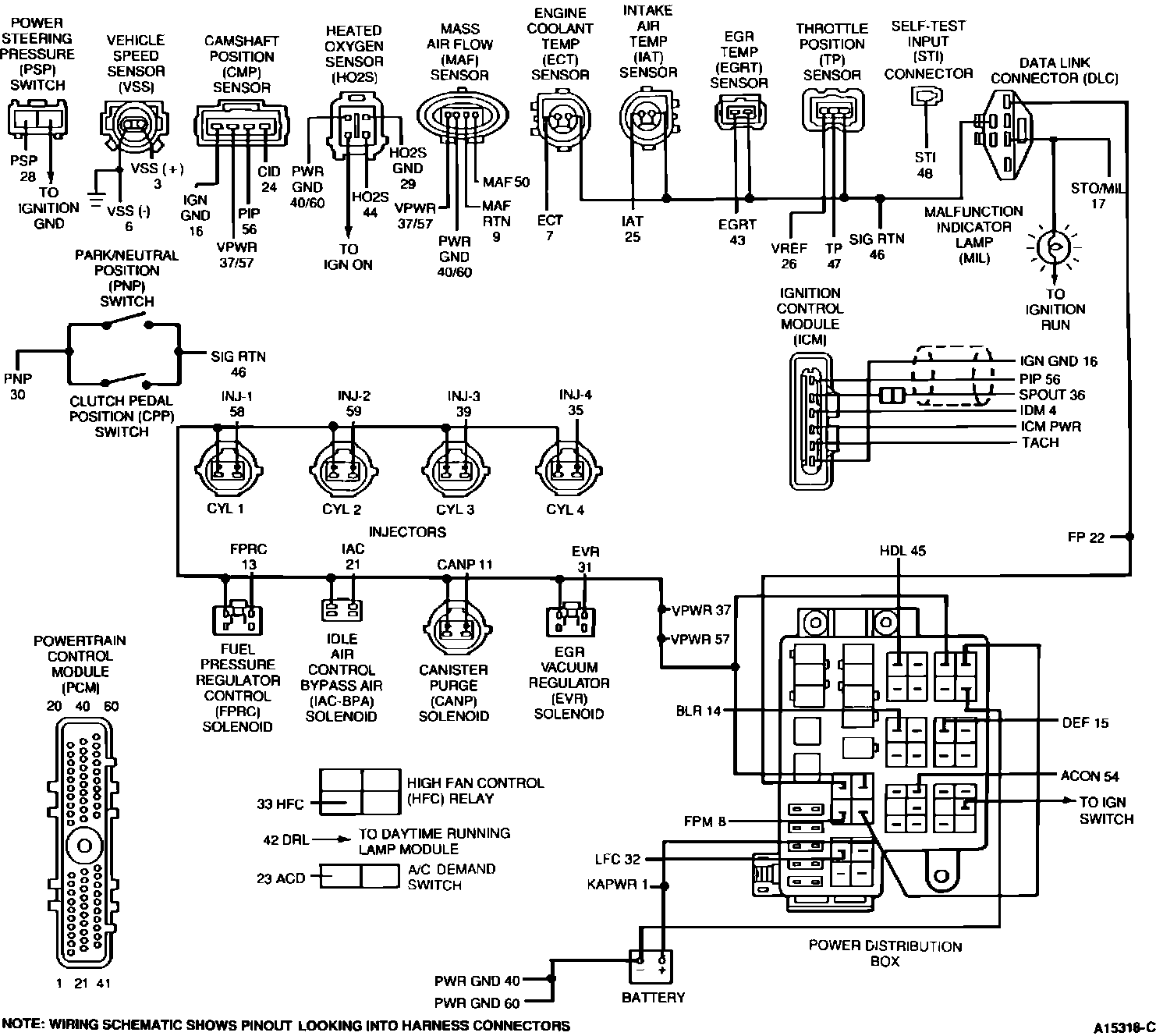

CALIFORNIA, M/T

Electrical Schematic:






CALIFORNIA, A/T


Electrical Schematic:
