Air Cleaner Housing: Service and Repair
REMOVAL1. Disconnect the battery ground cable.
2. Remove the engine air cleaner intake tube.
3. Disconnect the Mass Air Flow (MAF) sensor connector and the Intake Air Temperature (IAT) sensor connector.
4. Loosen the engine air cleaner tube clamp between the MAF sensor and the air cleaner to intake manifold tube.
5. Remove the engine air cleaner upper cover.
6. Remove the four MAF sensor bolts.
7. Remove the MAF sensor from the engine air cleaner upper cover.
8. Remove the IAT sensor from the engine air cleaner upper cover.
9. Remove the air cleaner element.
Engine Air Cleaner Housing:

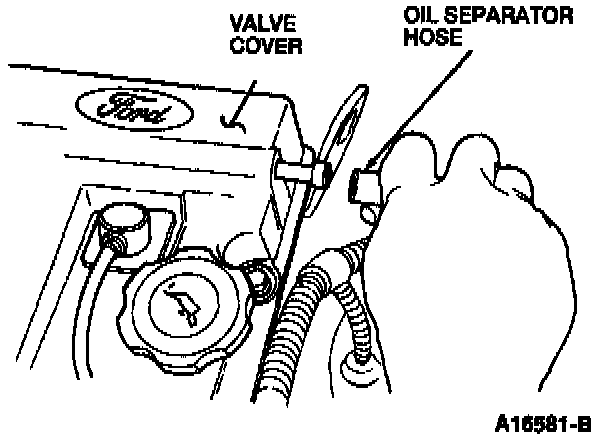

Oil Separator Hose:
10. Remove the two engine air cleaner lower cover nuts and bolts.
11. Remove the engine air cleaner lower cover.
INSTALLATION
To install, reverse the removal procedure. Tighten the engine air cleaner lower cover bolts and nuts to 19-25 Nm (14-19 lb ft). Tighten the MAF sensor bolts to 8-10 Nm (71-88 lb in). Tighten the IAT sensor to 11-16 Nm (96-144 lb in).
