Connector Views Used With Pinpoint Tests

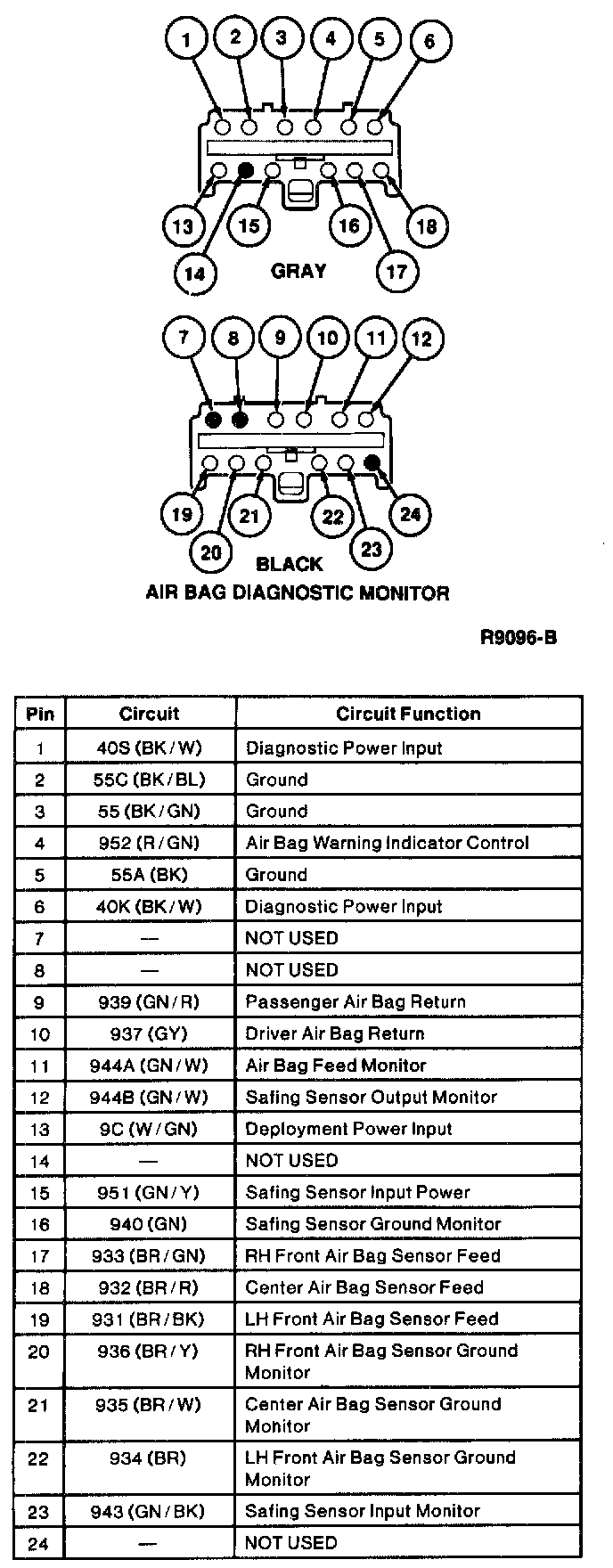

Air Bag Diagnostic Monitor:



Center Air Bag Sensor:

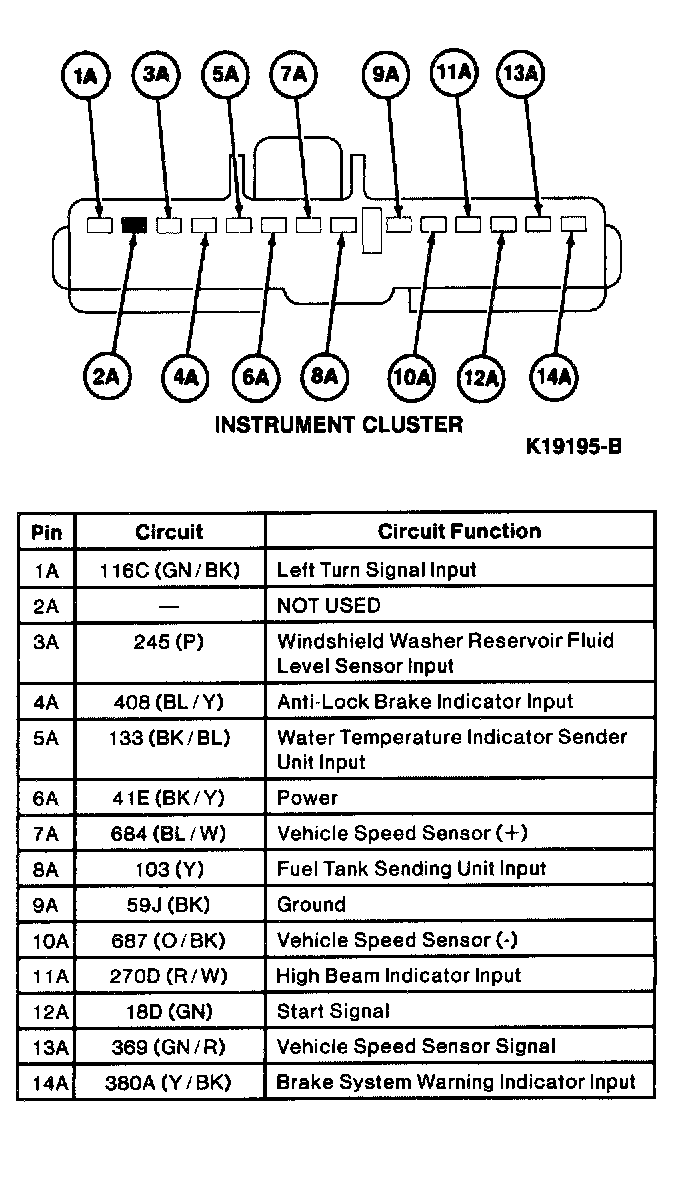

Instrument Cluster (1 Of 2):

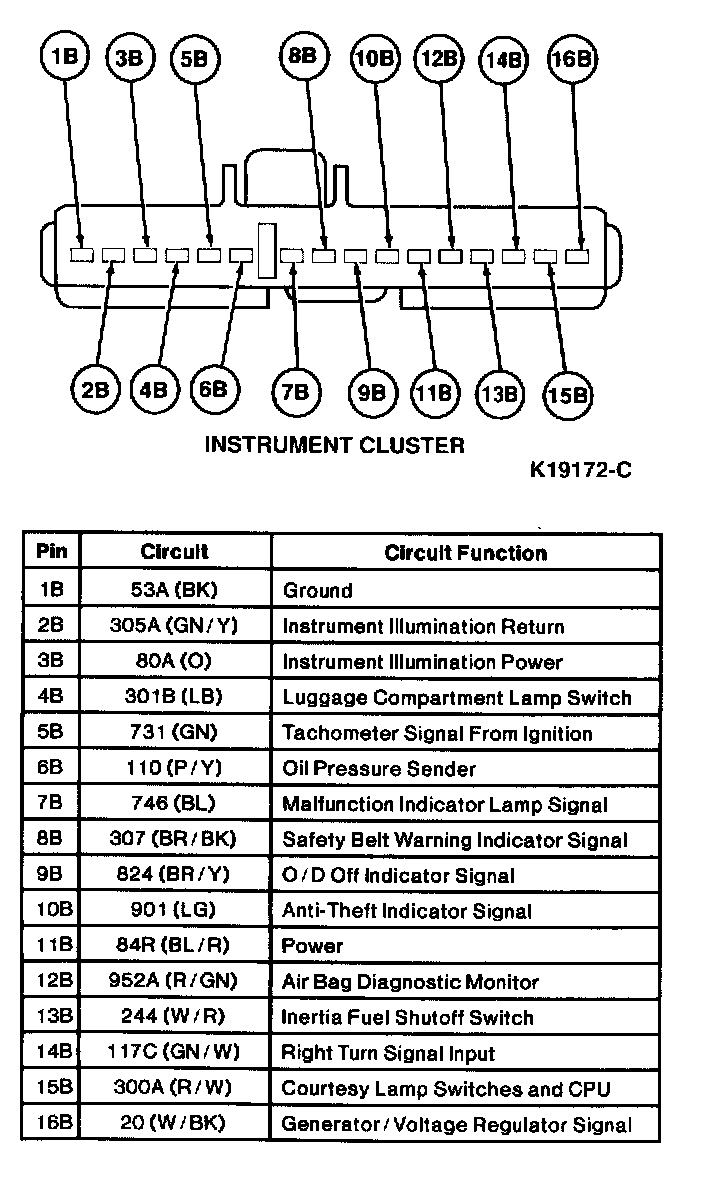

Instrument Cluster (2 Of 2):

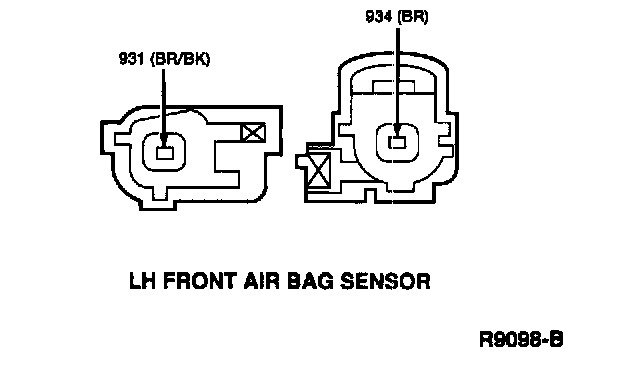

LH Front Air Bag Sensor:

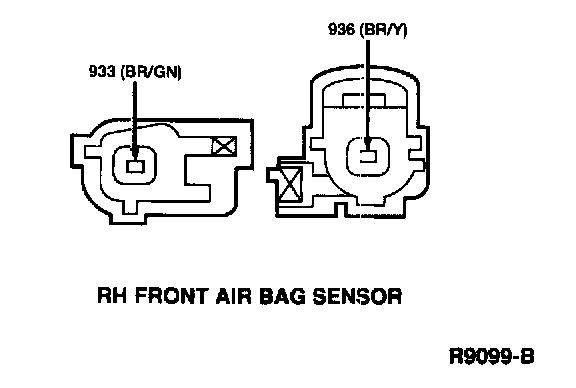

RH Front Air Bag Sensor:

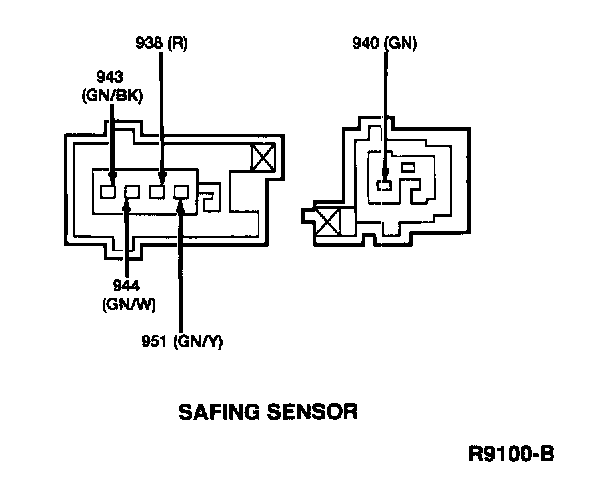

Safing Sensor:
