Home >> Ford >> 1994 >> Probe L4-121 2.0L DOHC VIN A MFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Switch >> Testing and Inspection

Windshield Washer Switch: Testing and Inspection

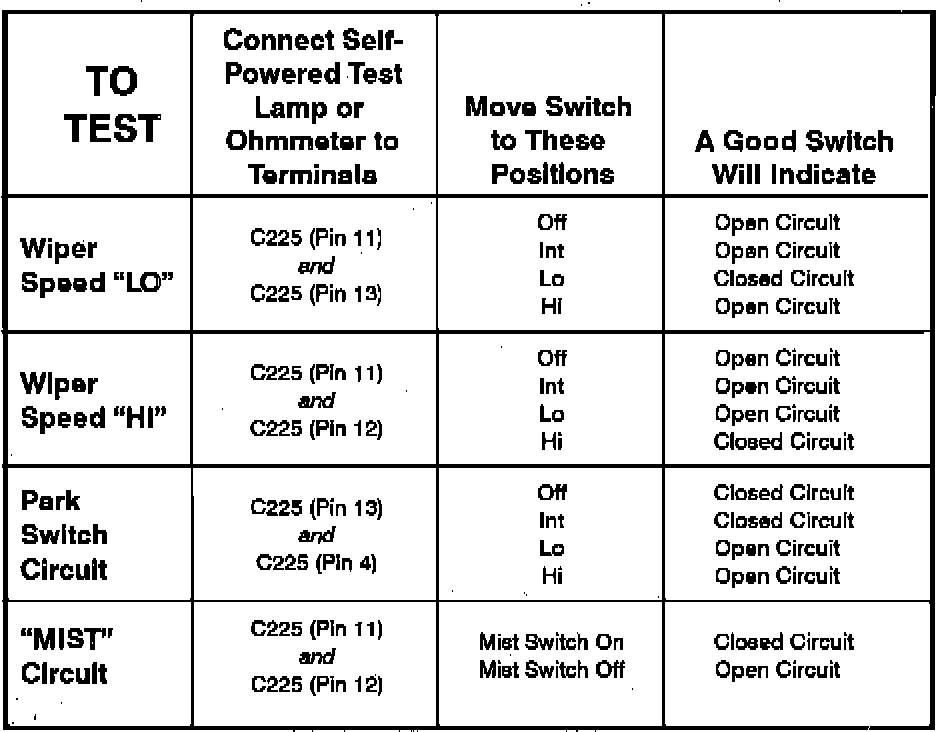

Component Testing Procedure

Component Testing Procedure:

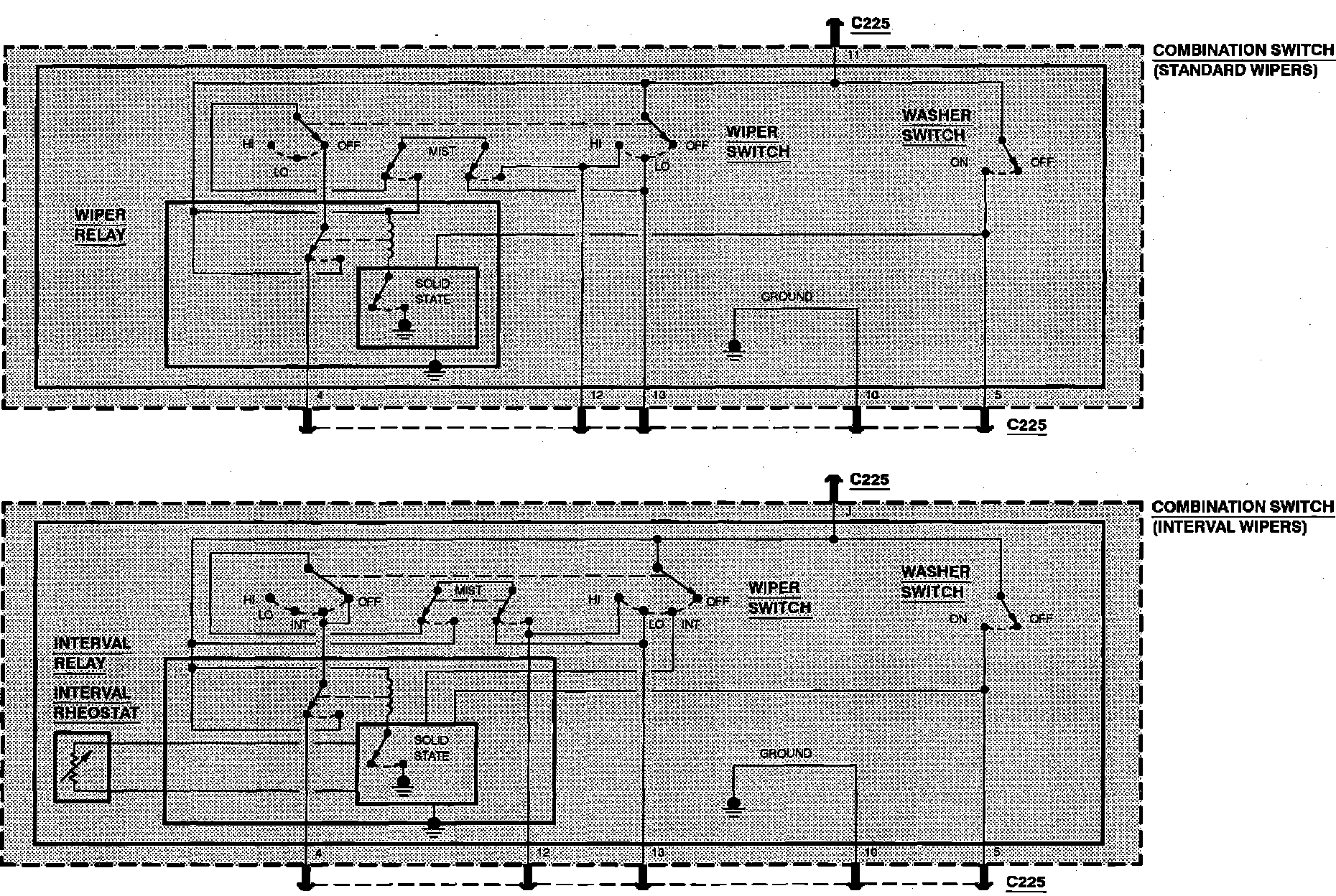

Schematic

Schematic:
