Home >> Ford >> 1994 >> Taurus V6-182 3.0L DOHC SHO >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Diagrams

Cruise Control Module: Diagrams

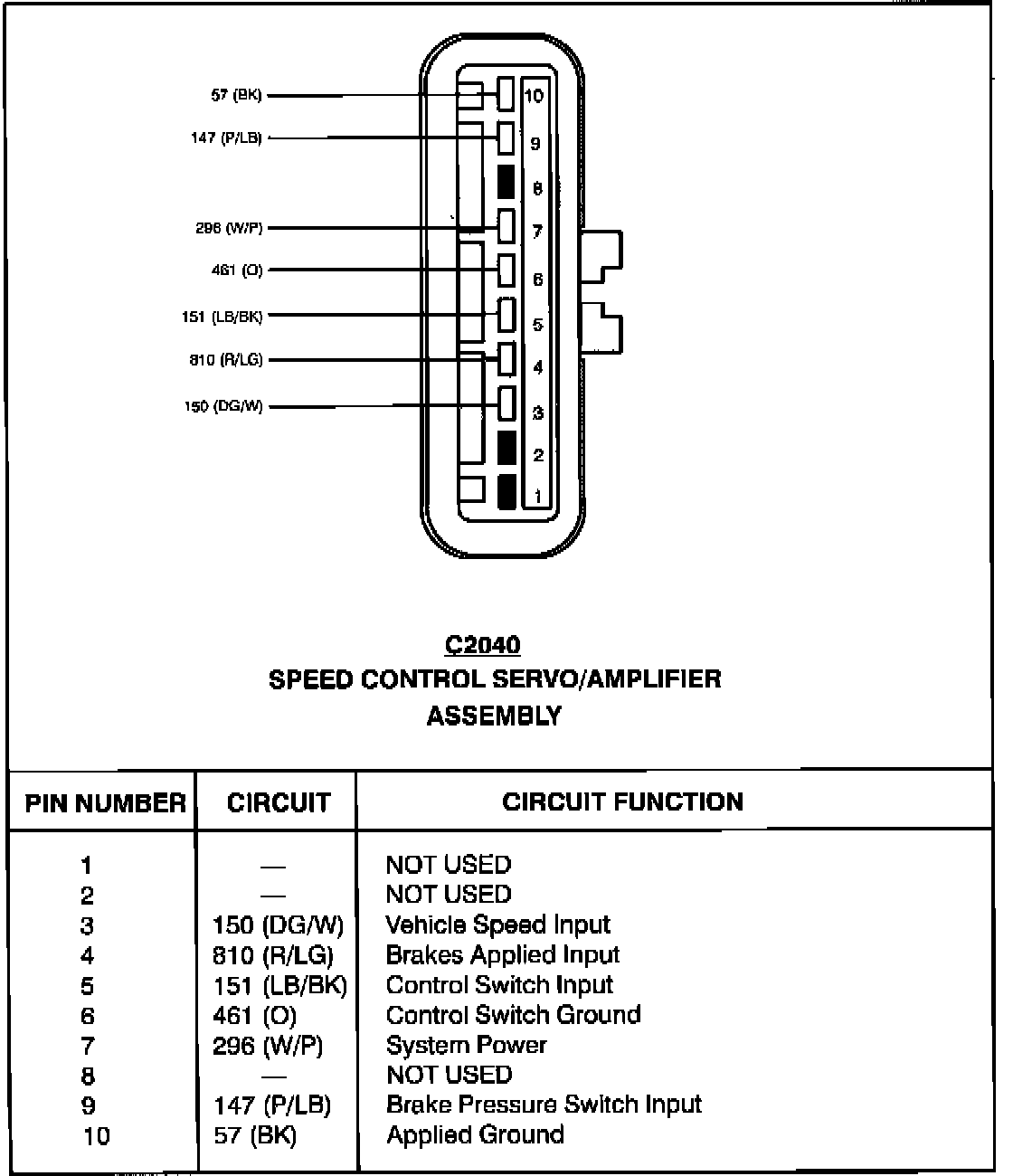

Speed Control Servo/Amplifier Assembly:
