Drive Belt: Service and Repair

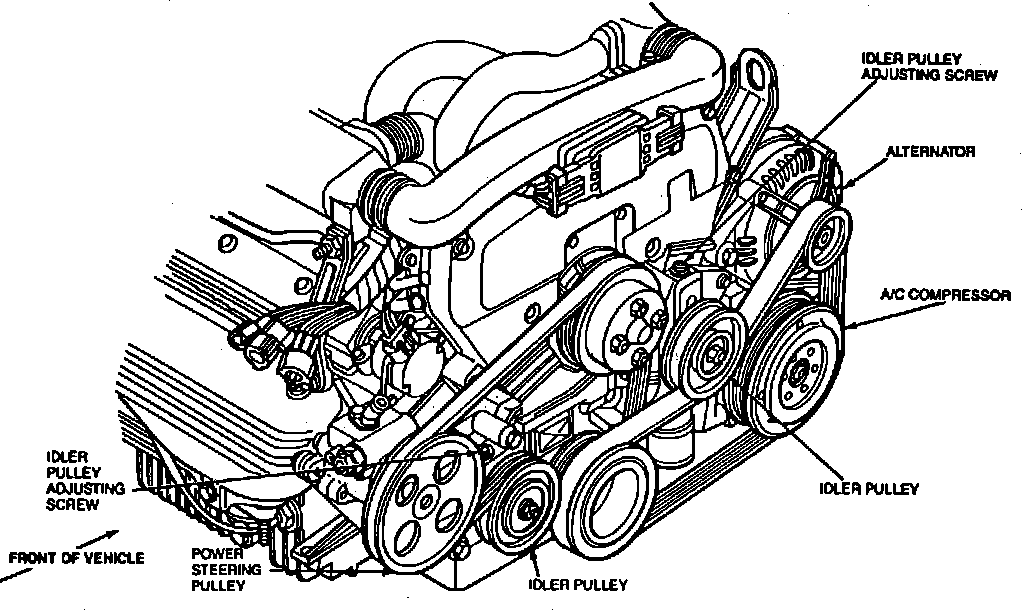

Fig. 23 Serpentine Drive Belt Routing:

1. Disconnect battery ground cable.
2. Loosen idler pulley nut.
3. Loosen idler adjusting screw until belt can be removed.
4. Reverse procedure to install.
