Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 1994 >> Taurus V6-182 3.0L FF >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> System Diagrams

System Diagrams

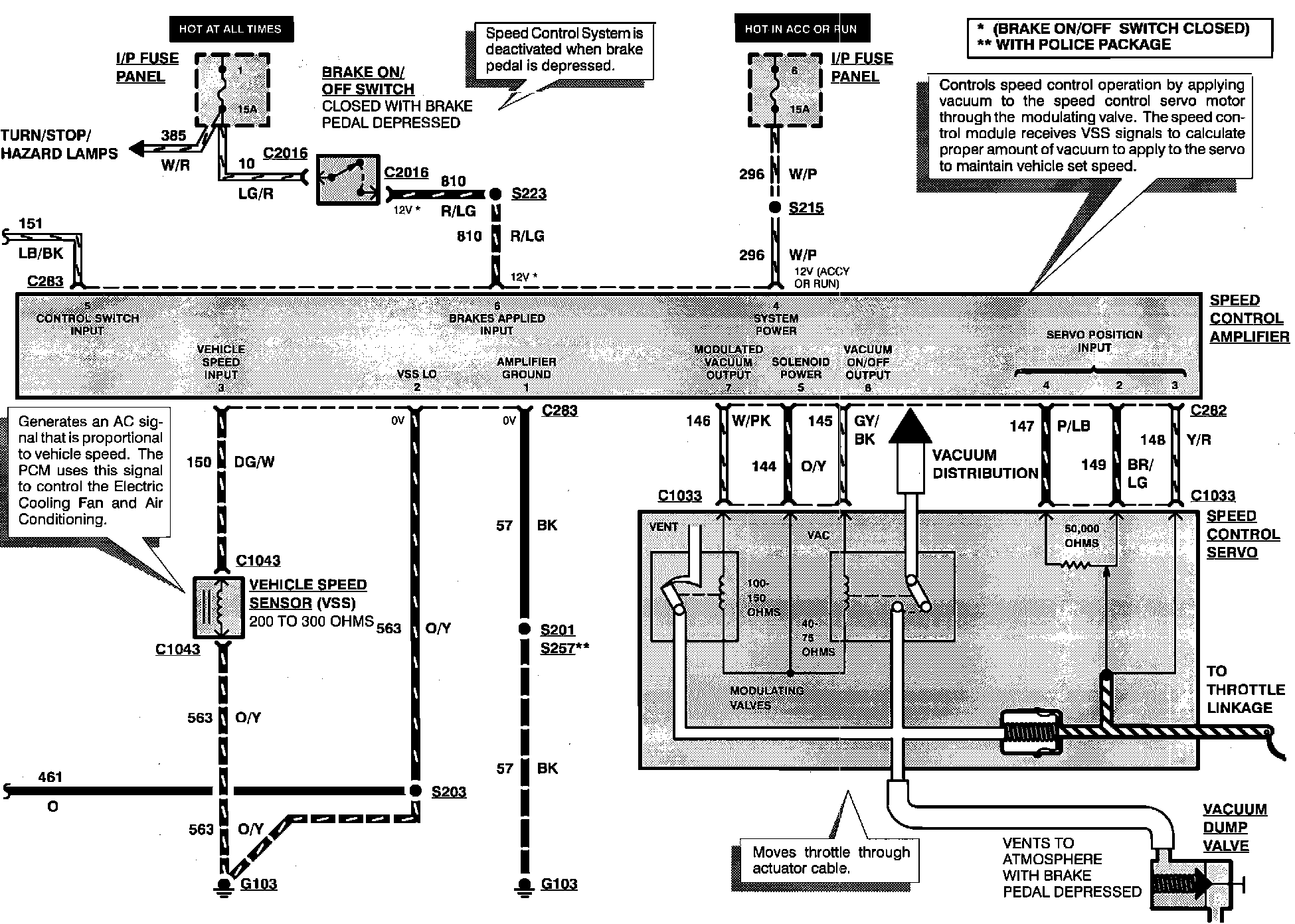

Speed Control:

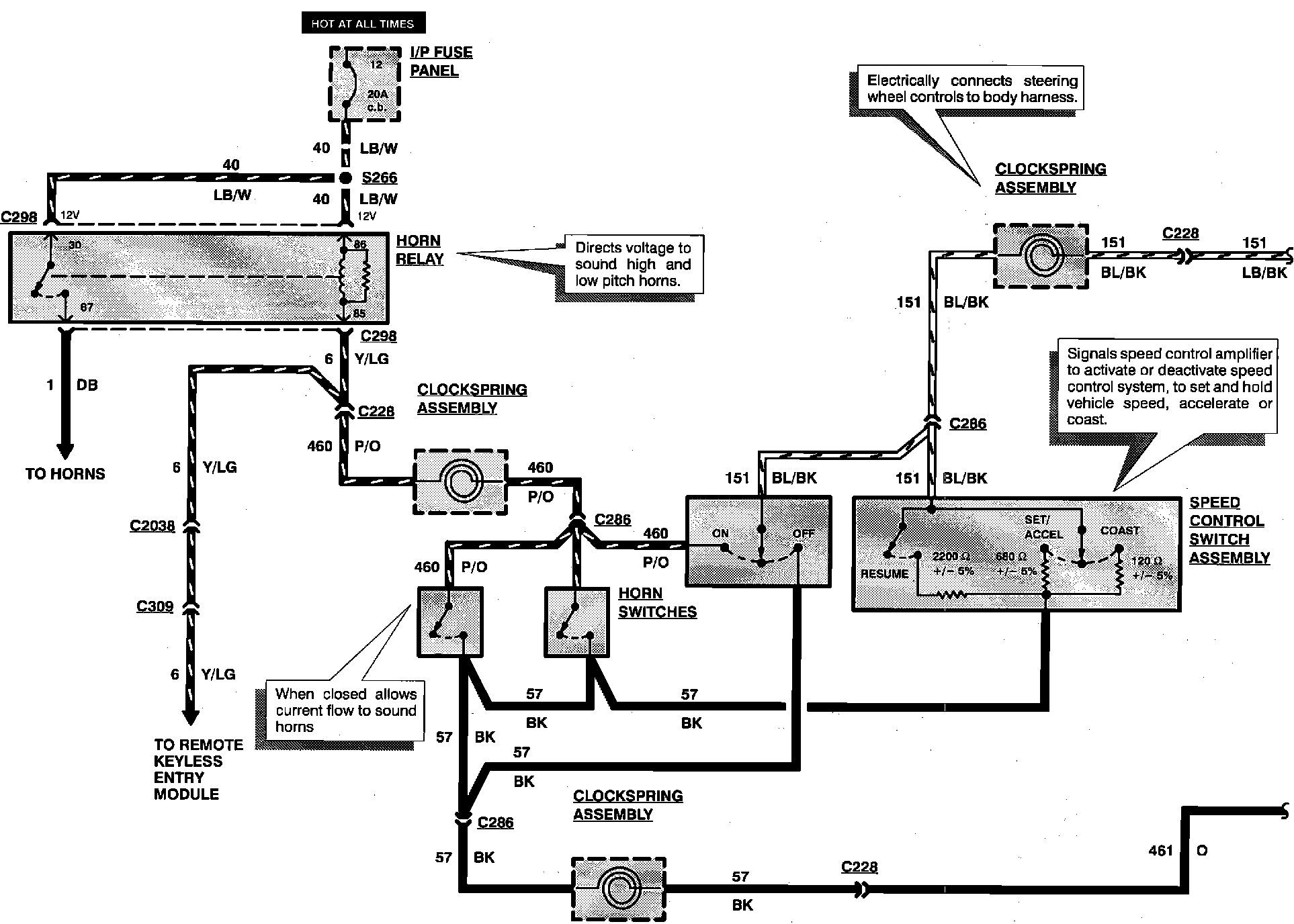

Speed Control:
