Home >> Ford >> 1994 >> Taurus V6-182 3.0L FF >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Diagram

System Diagram

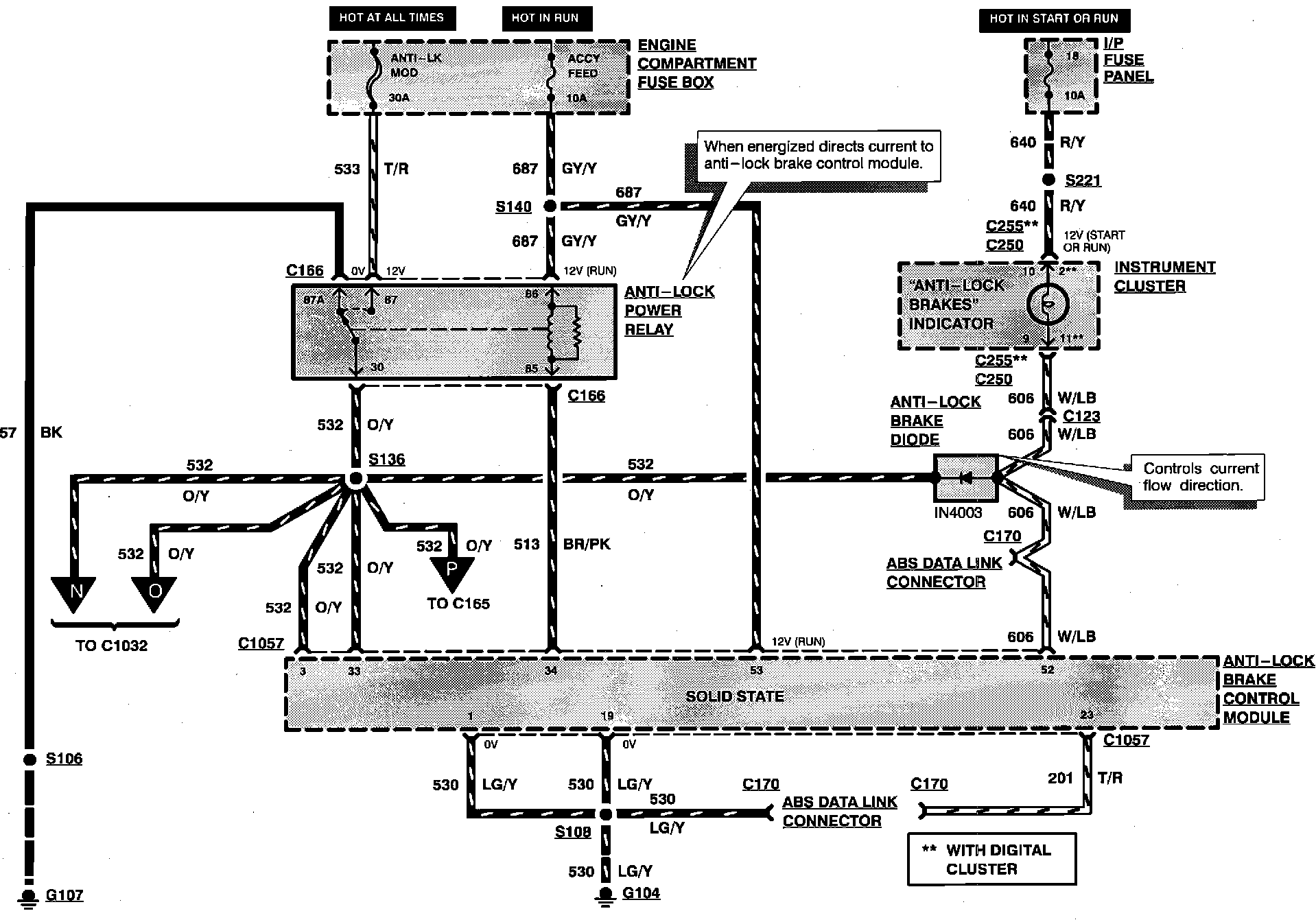

Anti-Lock Brake System:





Anti-Lock Brake System:





Anti-Lock Brake System:





Anti-Lock Brake System:
