Home >> Ford >> 1994 >> Taurus V6-182 3.0L FF >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Driver Seat

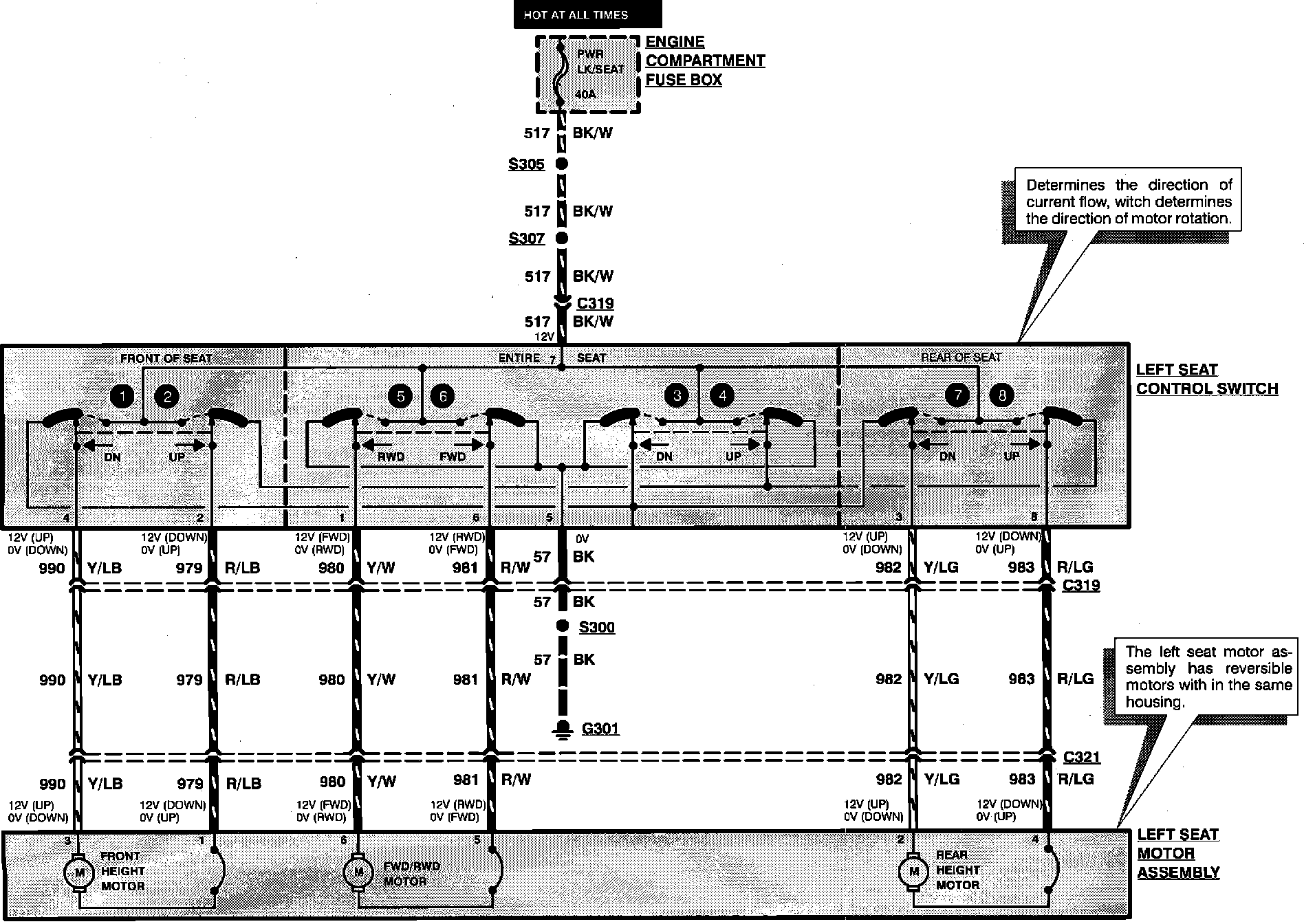

Driver Seat

Power Seats:
