Fuel Gauge: Testing and Inspection

Test B: Fuel Level Reads Inaccurately.:

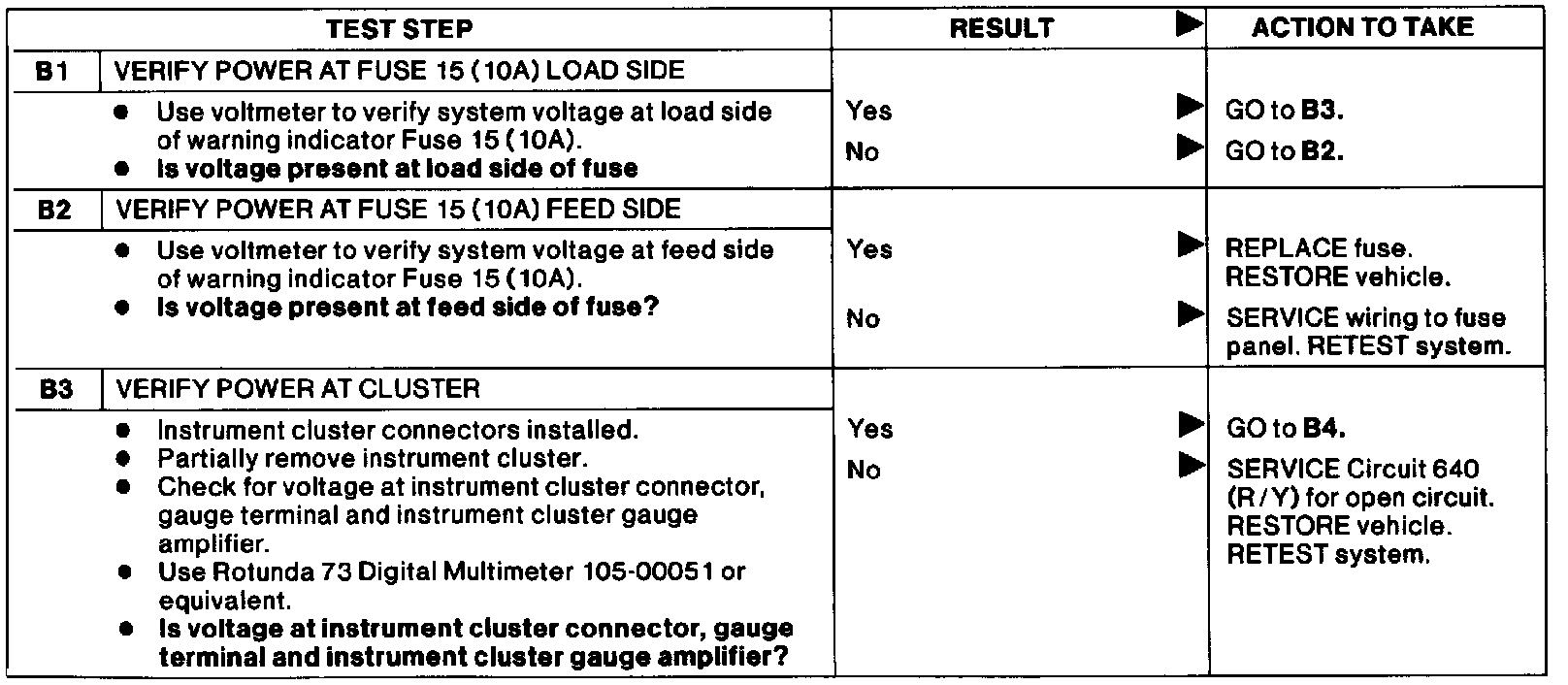

Test B1-B3

Test B: Fuel Level Reads Inaccurately.:

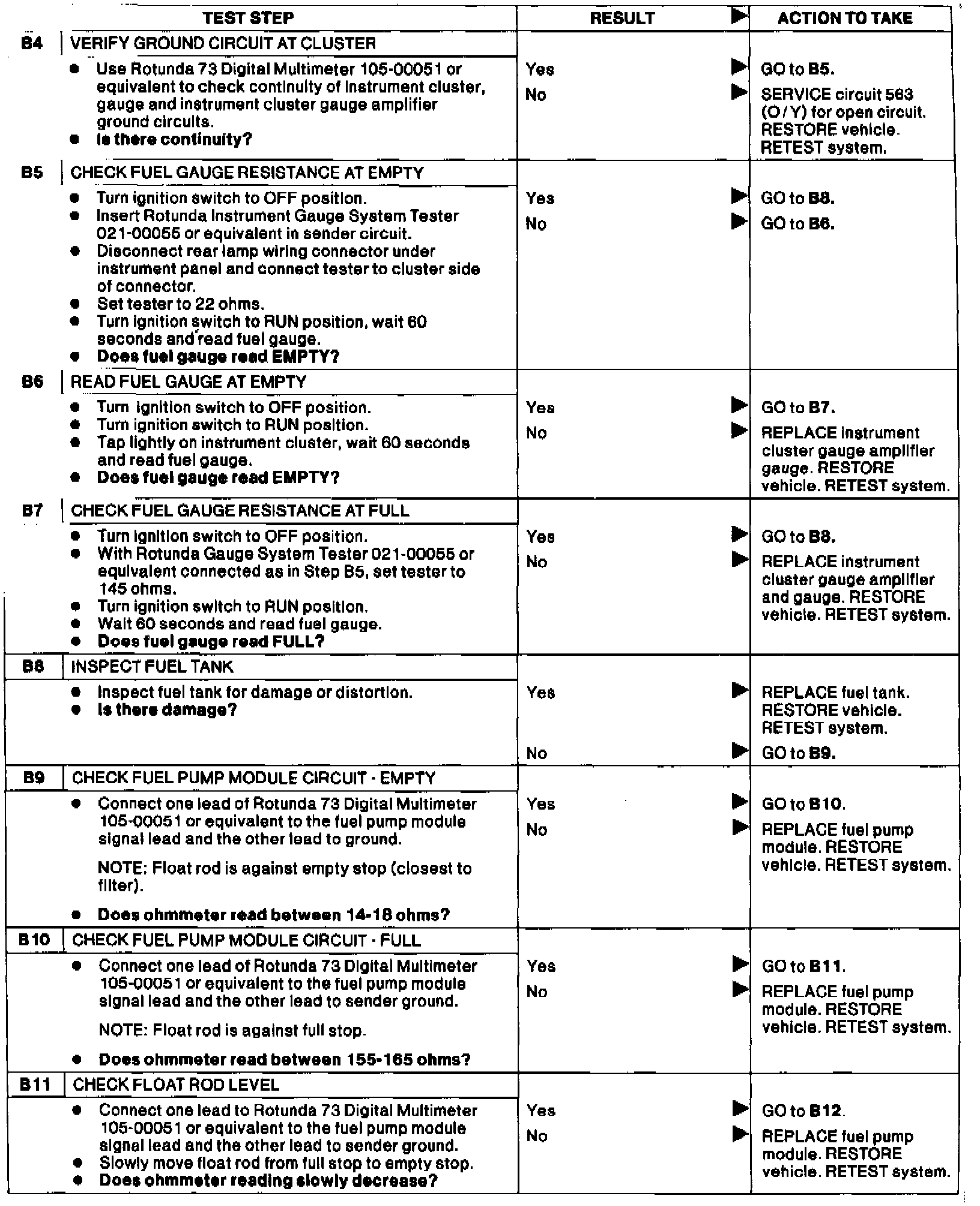

Test B4-B11

Test B: Fuel Level Reads Inaccurately.:

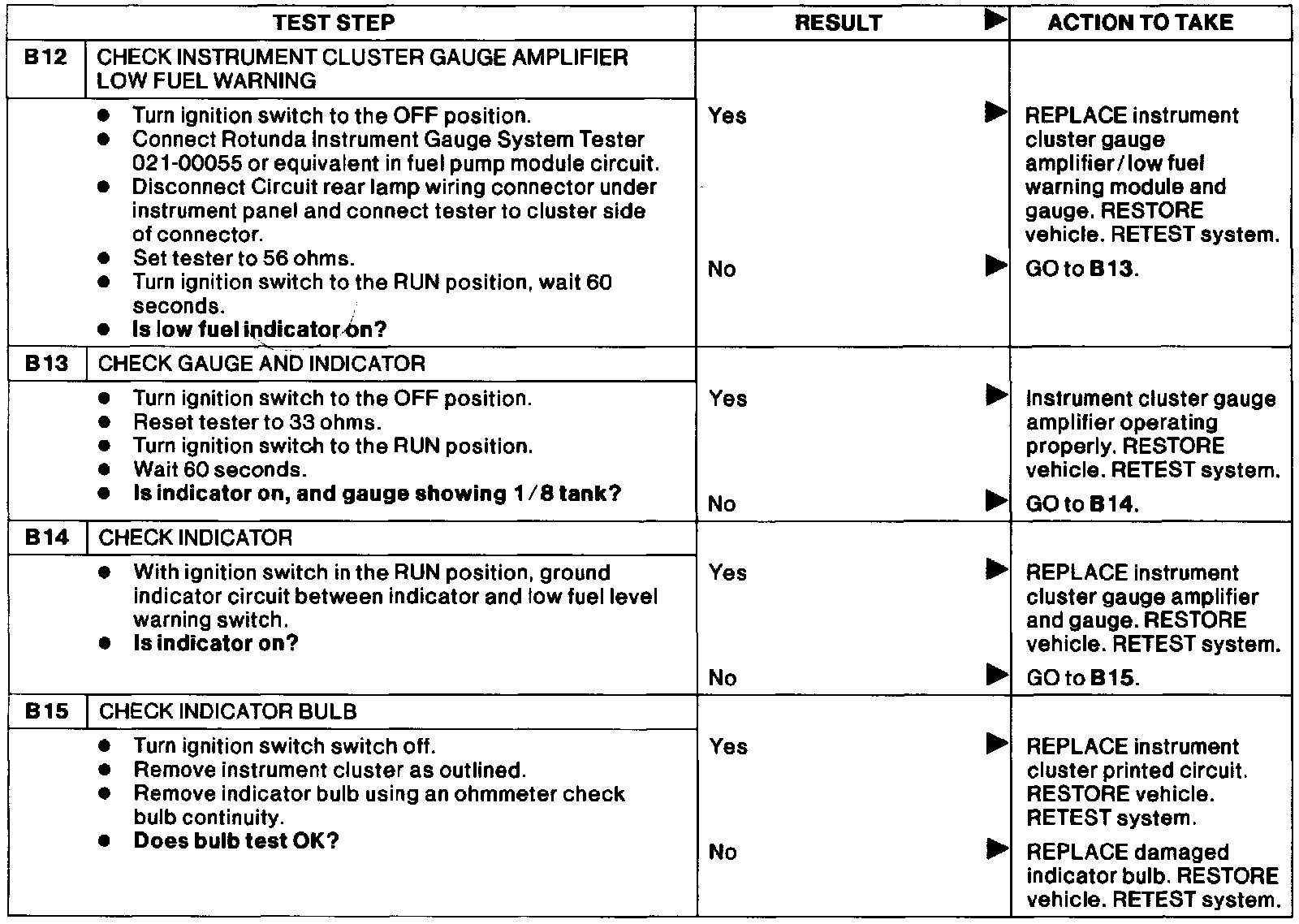

Test B12-B15
