Speedometer Head: Testing and Inspection

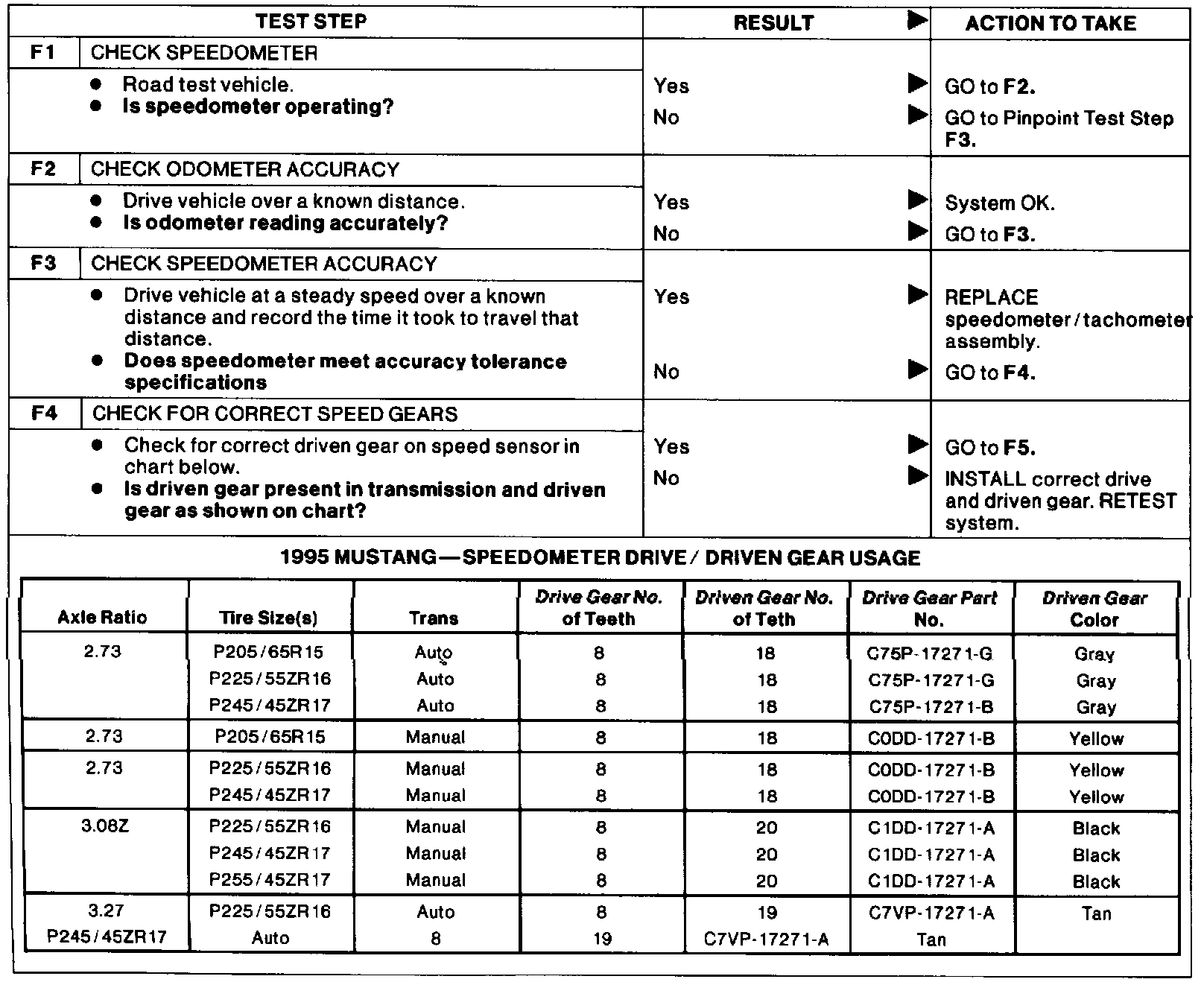

Test F: Speedometer Reads Inaccurately.:





Test F1-F4

Test F: Speedometer Reads Inaccurately.:





Test F5-F11

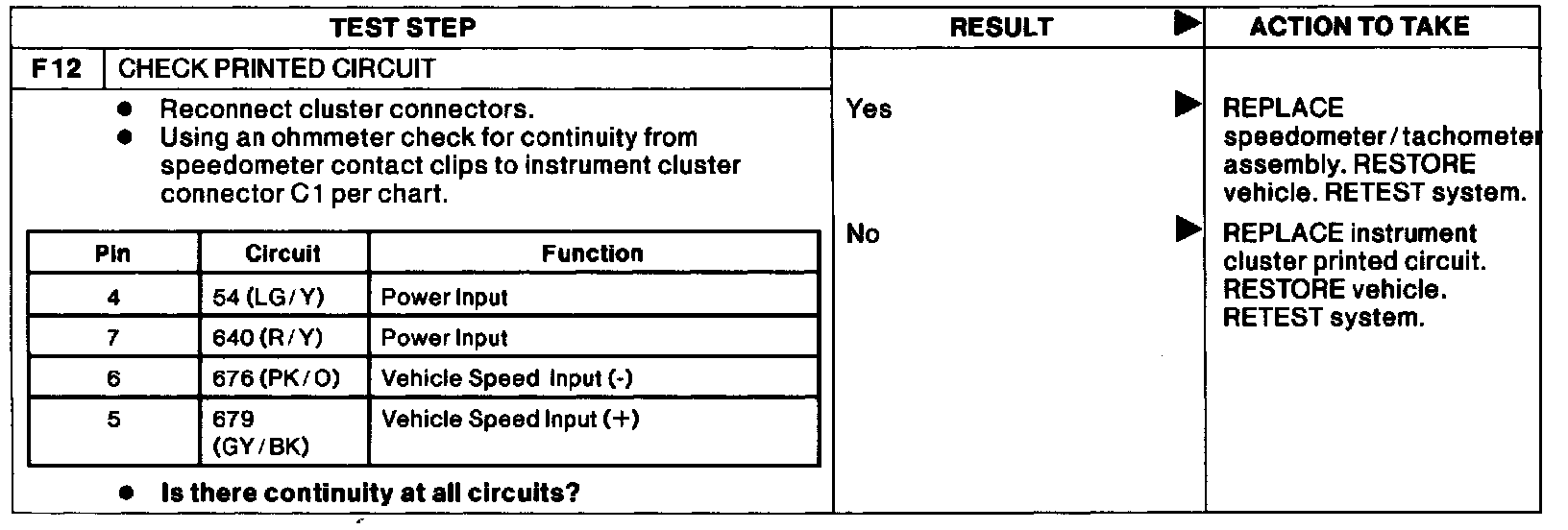

Test F: Speedometer Reads Inaccurately.:





Test F12
