Ground Diagrams (By Component Name)

Grounds (G102, G103):

Anti-Lock Brake Control Module
Engine Compartment Fuse Fox
Fog Lamps Relay
Left Fog Lamp
Left Front Park/Turn Lamp
Left Headlamp
Right Fog Lamp
Right Front Park/Turn Lamp
Right Headlamp
Starter Relay
Washer Pump Motor

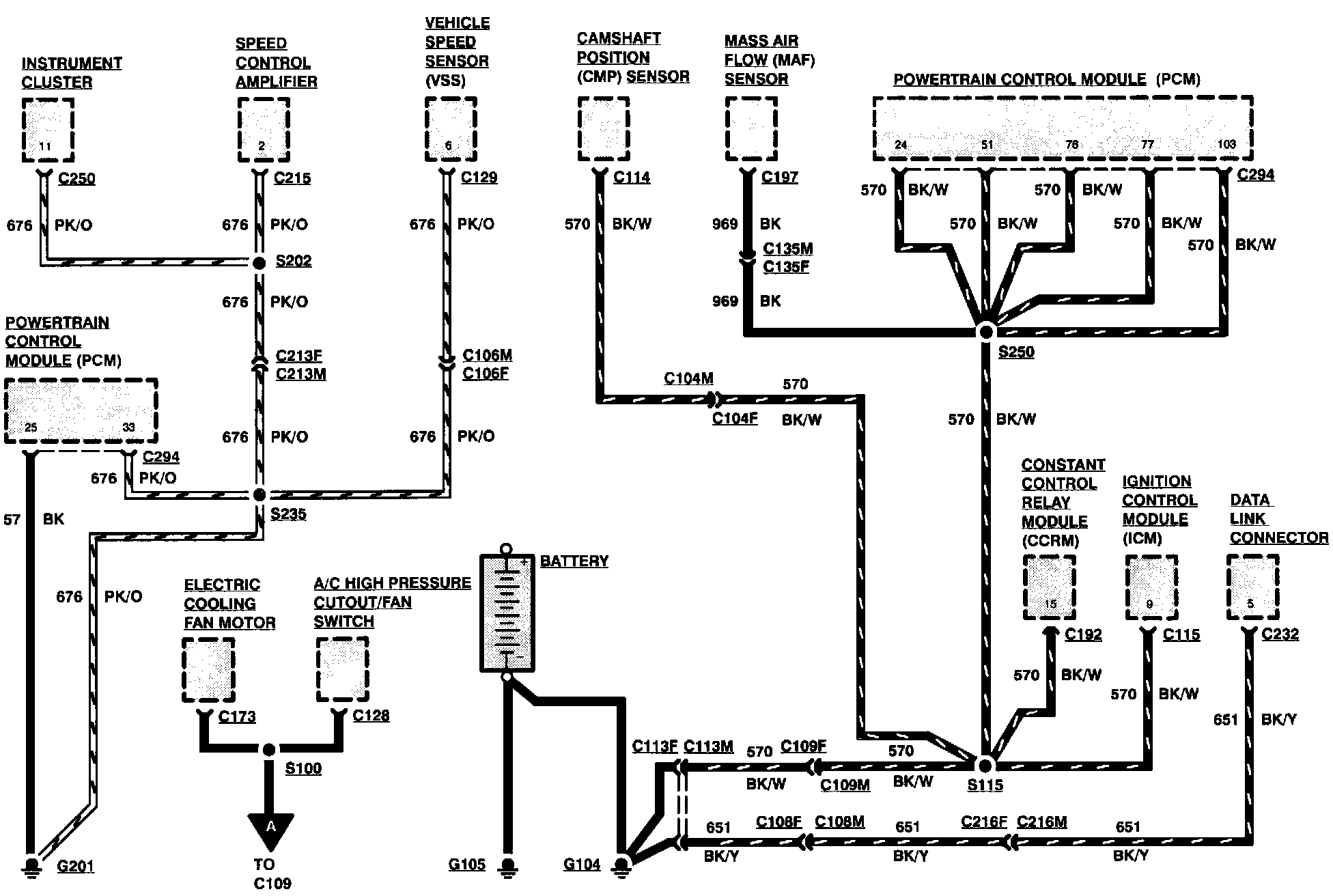

Grounds (G104, G105, G201):

A/C High Pressure Cutout/Fan Switch
Battery
Camshaft Position Sensor
Constant Control Relay Module
Data Link Connector
Electric Cooling Fan Motor
Ignition Control Module
Instrument Cluster
Mass Air Flow Sensor
Powertrain Control Module
Speed Control Amplifier
Vehicle Speed Sensor

Grounds (G104, G105, G201):

A/C High Pressure Cutout/Fan Switch
Battery
Constant Control Relay Module
Electric Cooling Fan Motor
Instrument Cluster
Left Heated Oxygen Sensor
Low Engine Coolant Switch
Mass Air Flow Sensor
Powertrain Control Module
Right Heated Oxygen Sensor
Speed Control Amplifier
Transmission Control Switch Module
Vehicle Speed Sensor

Grounds (G203, G205):

Amplifier
Anti-Theft Controller Module
CD
Front Speaker/Subwoofer Amplifier
Instrument Cluster
Radio
Radio
Rear Speaker/Subwoofer Amplifier
Remote/Keyless Entry Module

Grounds (G204, G300):

Air Bag Diagnostic Monitor
Clock
Clockspring Assembly
Electronic Flasher
Ignition Cylinder Tamper Switch
Ignition Switch
Instrument Cluster
Rear Window Defrost Control Switch
Shift Lock Actuator
Speed Control Amplifier
Steering Wheel Control Switch
Warning Chime Module
Wiper Control Module

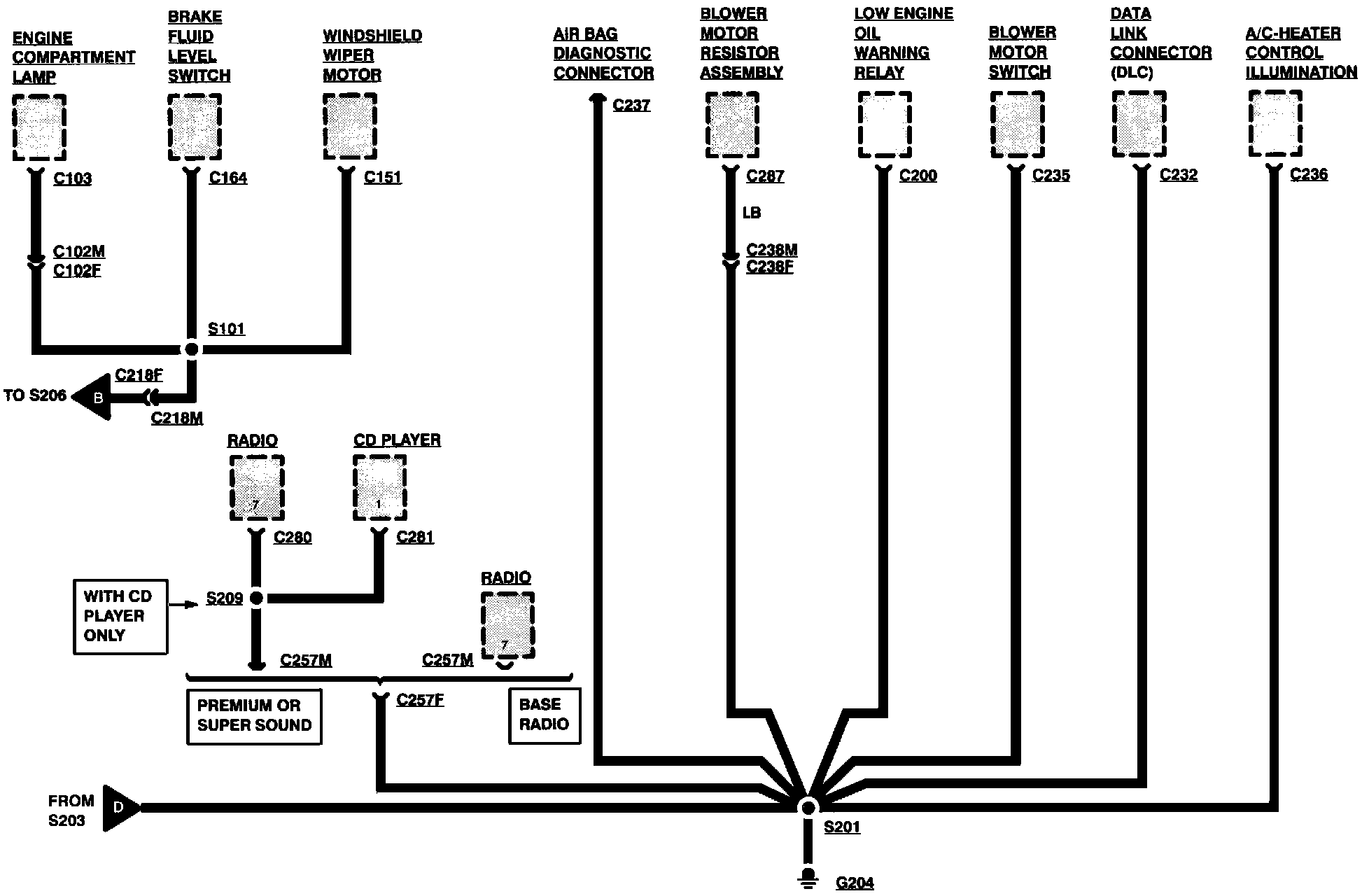

Grounds (G204):

A/C-Heater Control Illumination
Blower Motor Resistor Assembly
Blower Motor Switch
Brake Fluid Level Switch
CD Player
Data Link Connector
Engine Compartment Lamp
Low Engine Oil Warning Relay
Radio
Windshield Wiper Motor

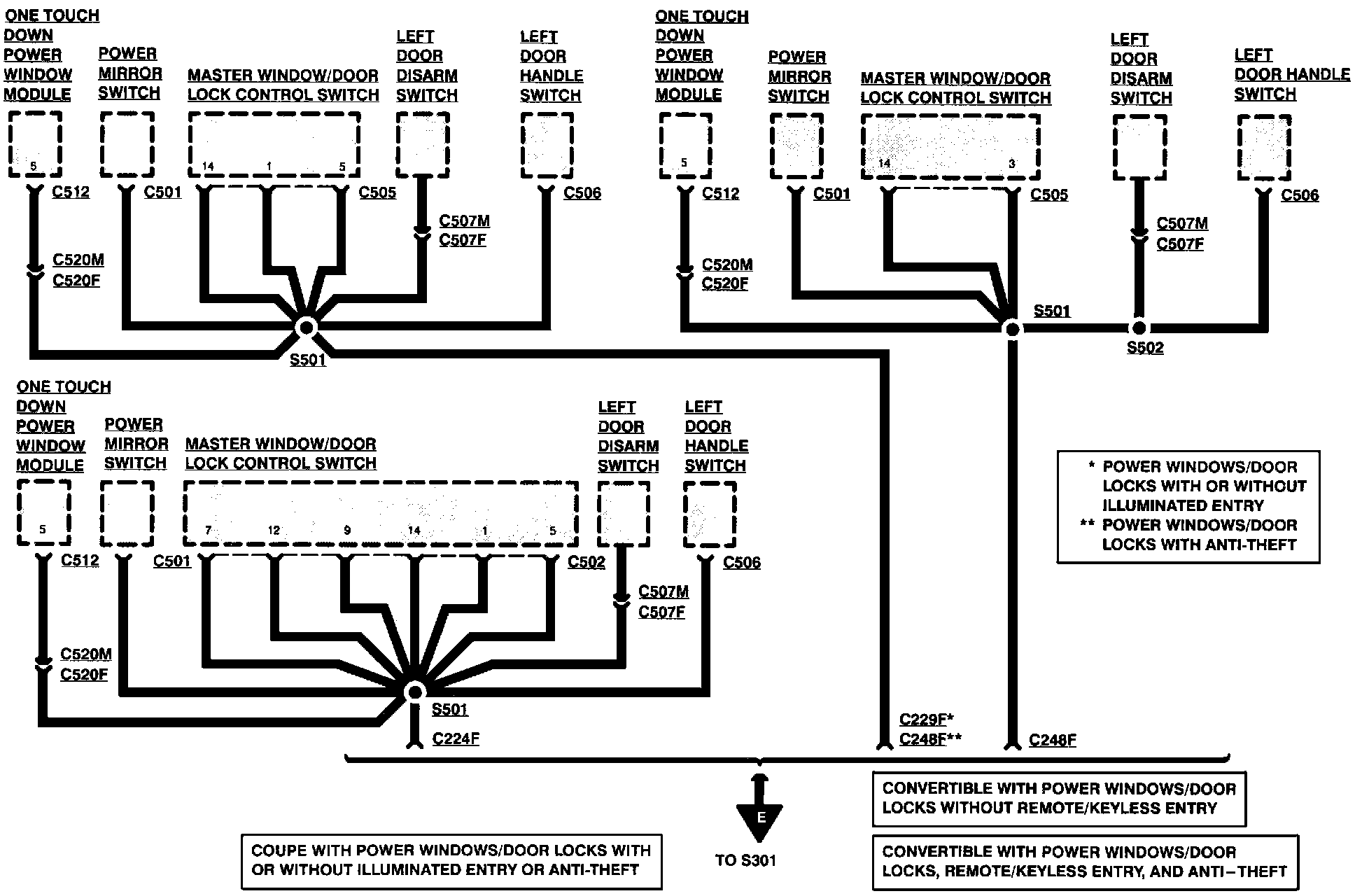

Grounds (G300):

Left Door Disarm Switch
Left Door Handle Switch
Master Window/Door Lock Control Switch
One Touch Down Power Window Module
Power Mirror Switch

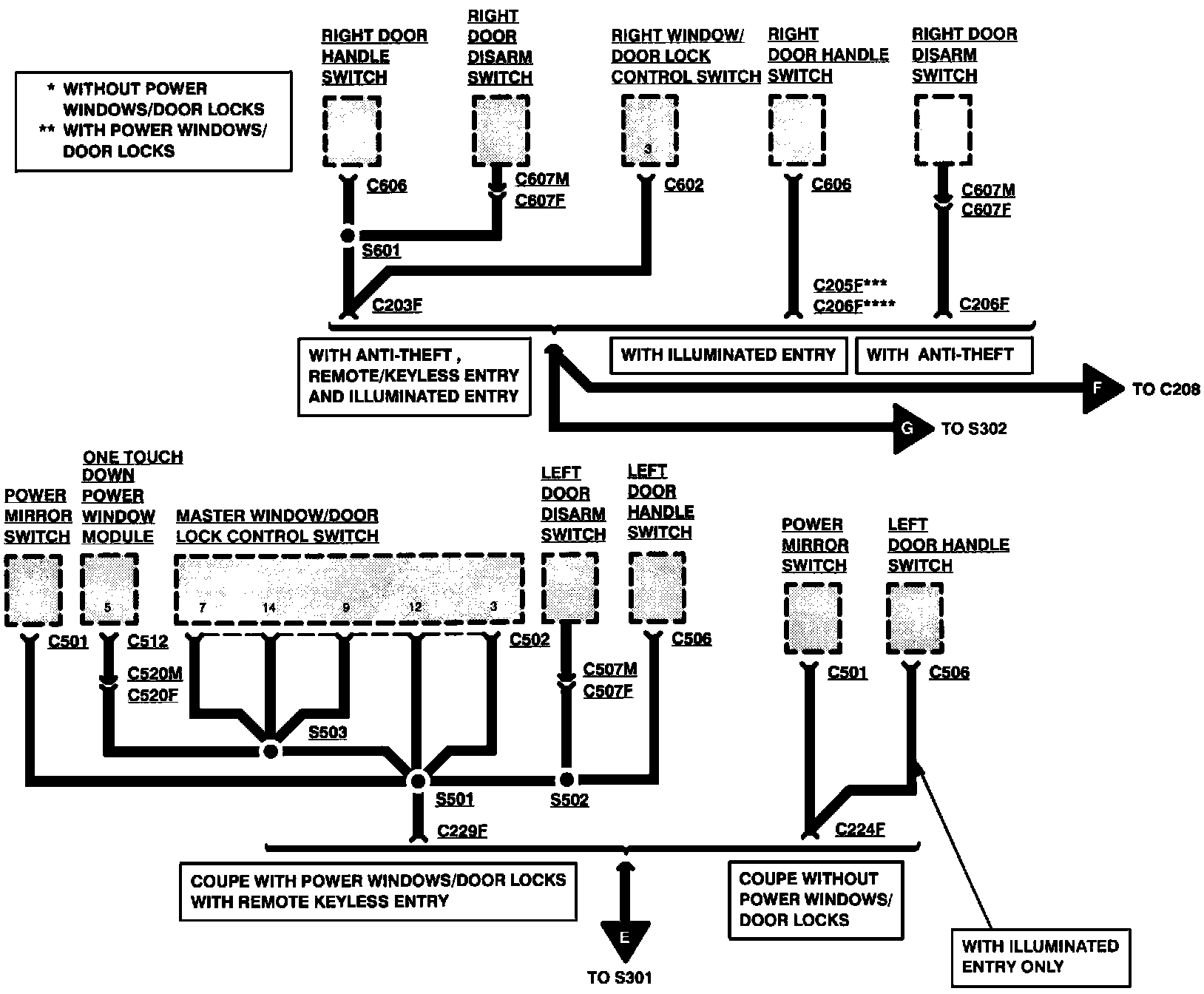

Grounds (G300):

Left Door Disarm Switch
Left Door Handle Switch
Master Window/Door Lock Control Switch
One Touch Down Power Window Module
Power Mirror Switch
Right Door Disarm Switch
Right Door Handle Switch
Right Window/Door Lock Control Switch

Grounds (G300):

Ashtray Illumination
Cigar Lighter
Dome/Map Lamp
Driver's Seat Control Switch
Fog Lamp Switch
Left Power Lumbar Compressor Motor
Left Vanity Mirror Lamp
Right Power Lumbar Compressor Motor
Right Vanity Mirror Lamp
Seat Belt Switch

Grounds (G300):

Illuminated Entry Module
Lower Relay
Raise Relay
Remote/Keyless Entry Module
Transmission Control Switch

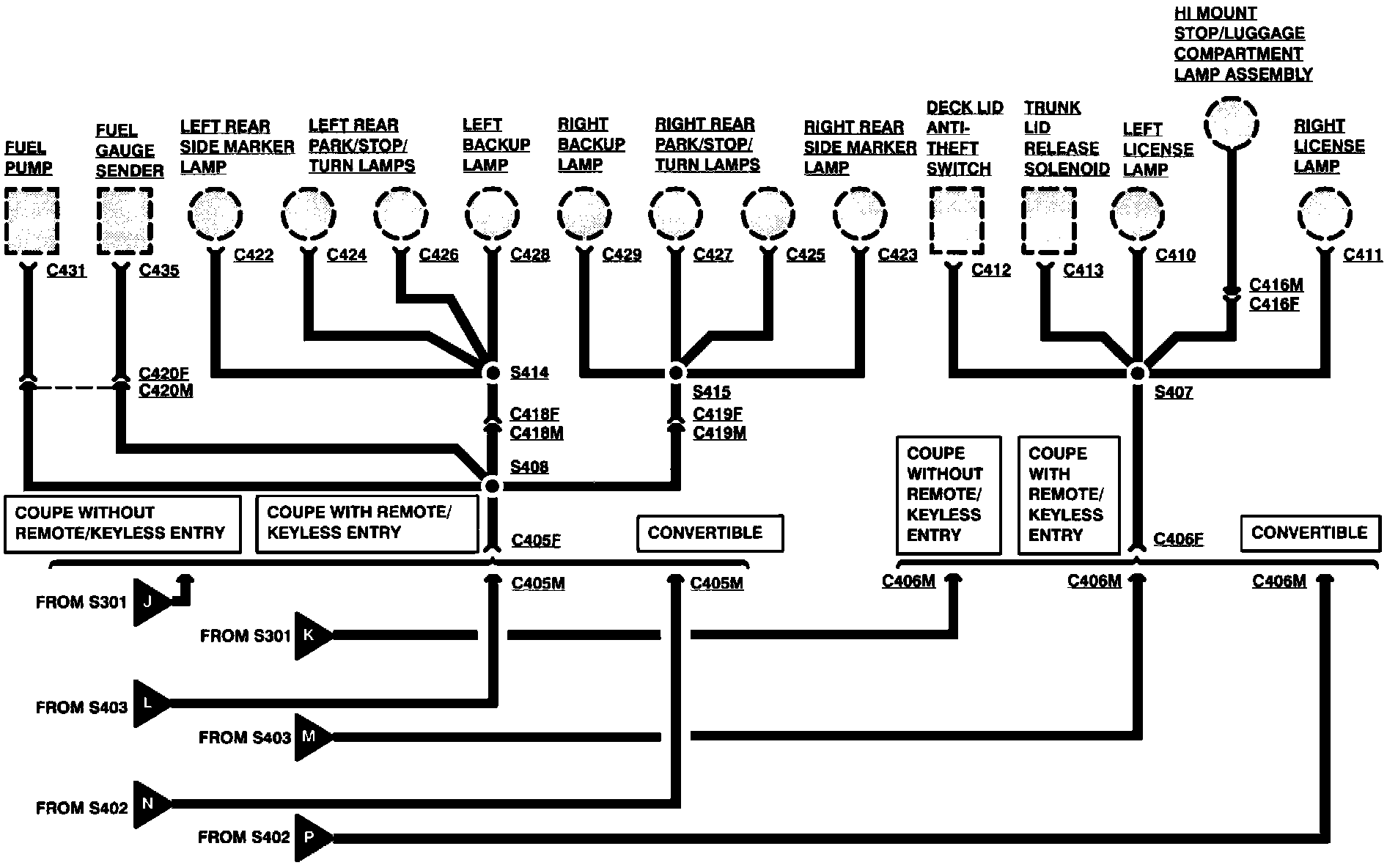

Grounds (G300):

Deck Lid Anti-Theft Switch
Fuel Gauge Sender
Fuel Pump
Hi Mount Stop/Luggage Compartment Lamp Assembly
Left Backup Lamp
Left License Lamp
Left Rear Park/Stop/Turn Lamps
Left Rear Side Marker Lamp
Right Backup Lamp
Right License Lamp
Right Rear Park/Stop/Turn Lamps
Right Rear Side Marker Lamp
Trunk Lid Release Solenoid
