Home >> Ford >> 1995 >> Taurus V6-182 3.0L FF >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp

Courtesy Lamp

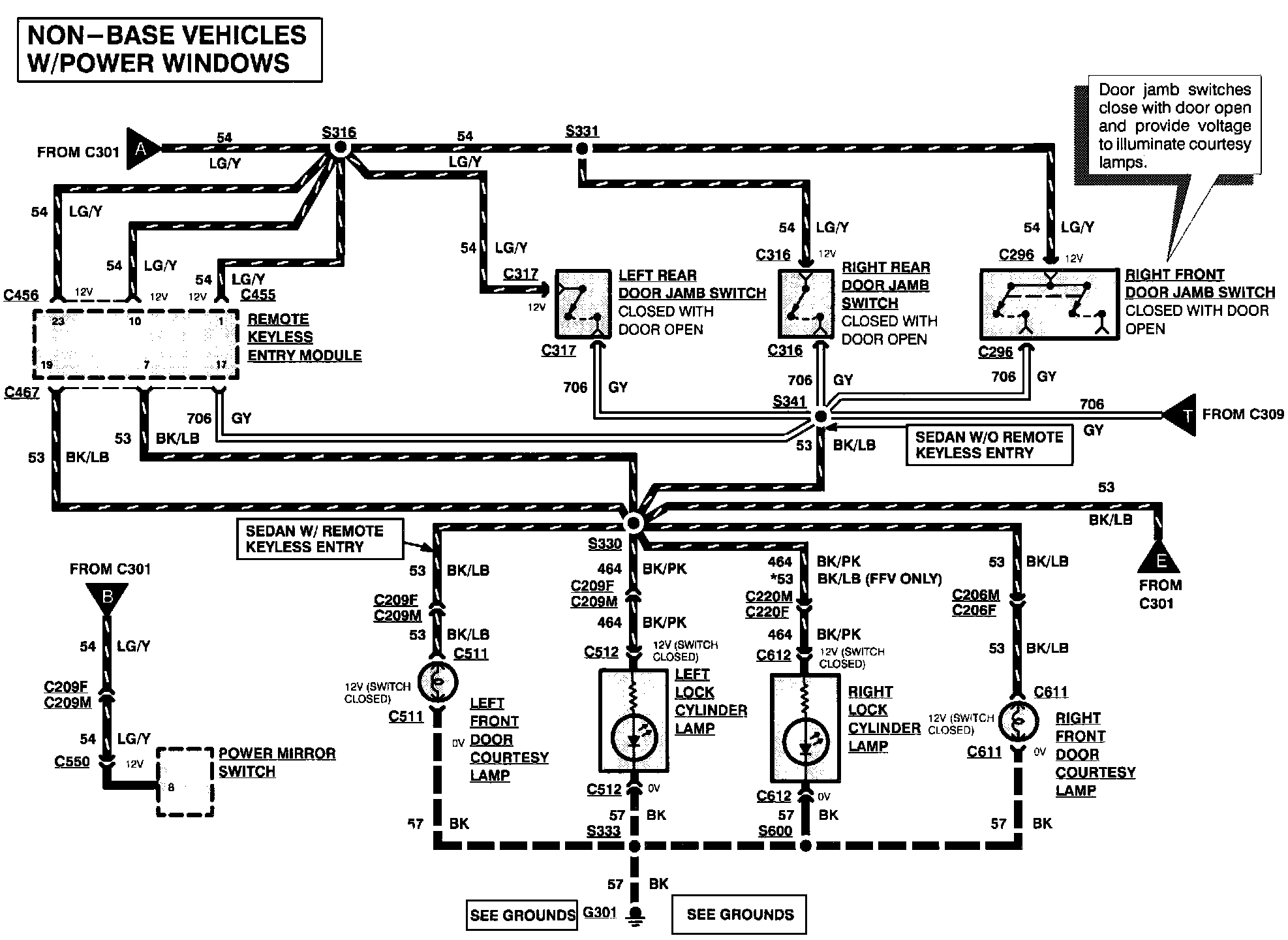

Courtesy Lamps:

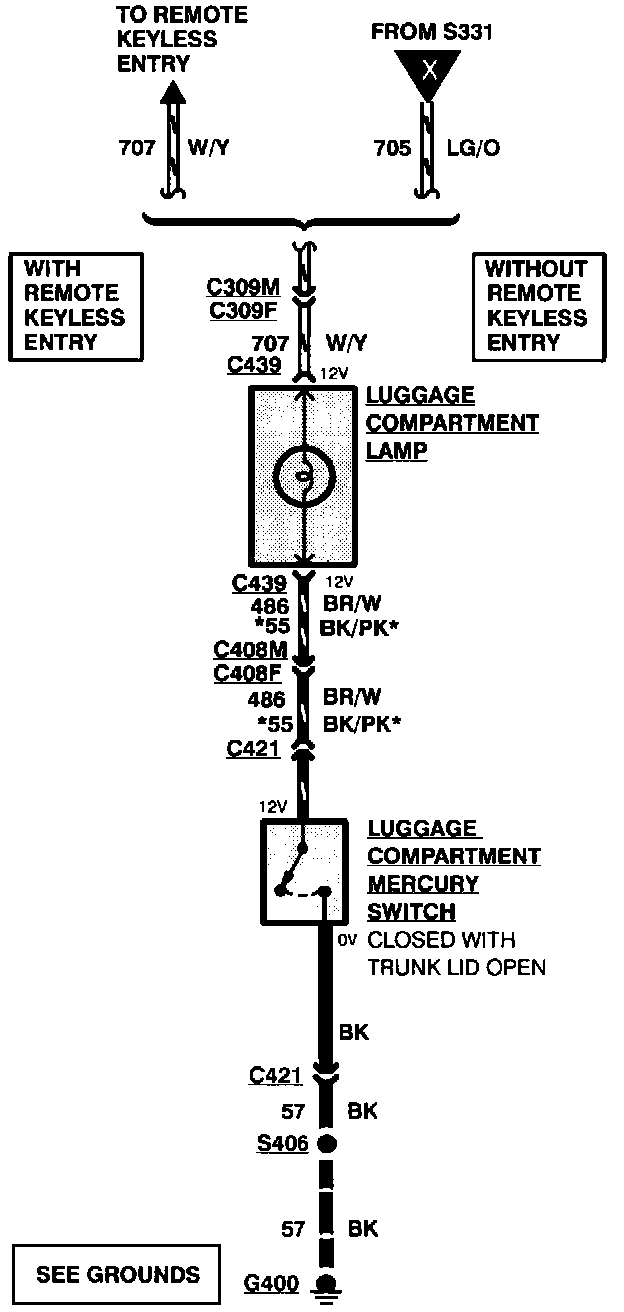

Courtesy Lamps:

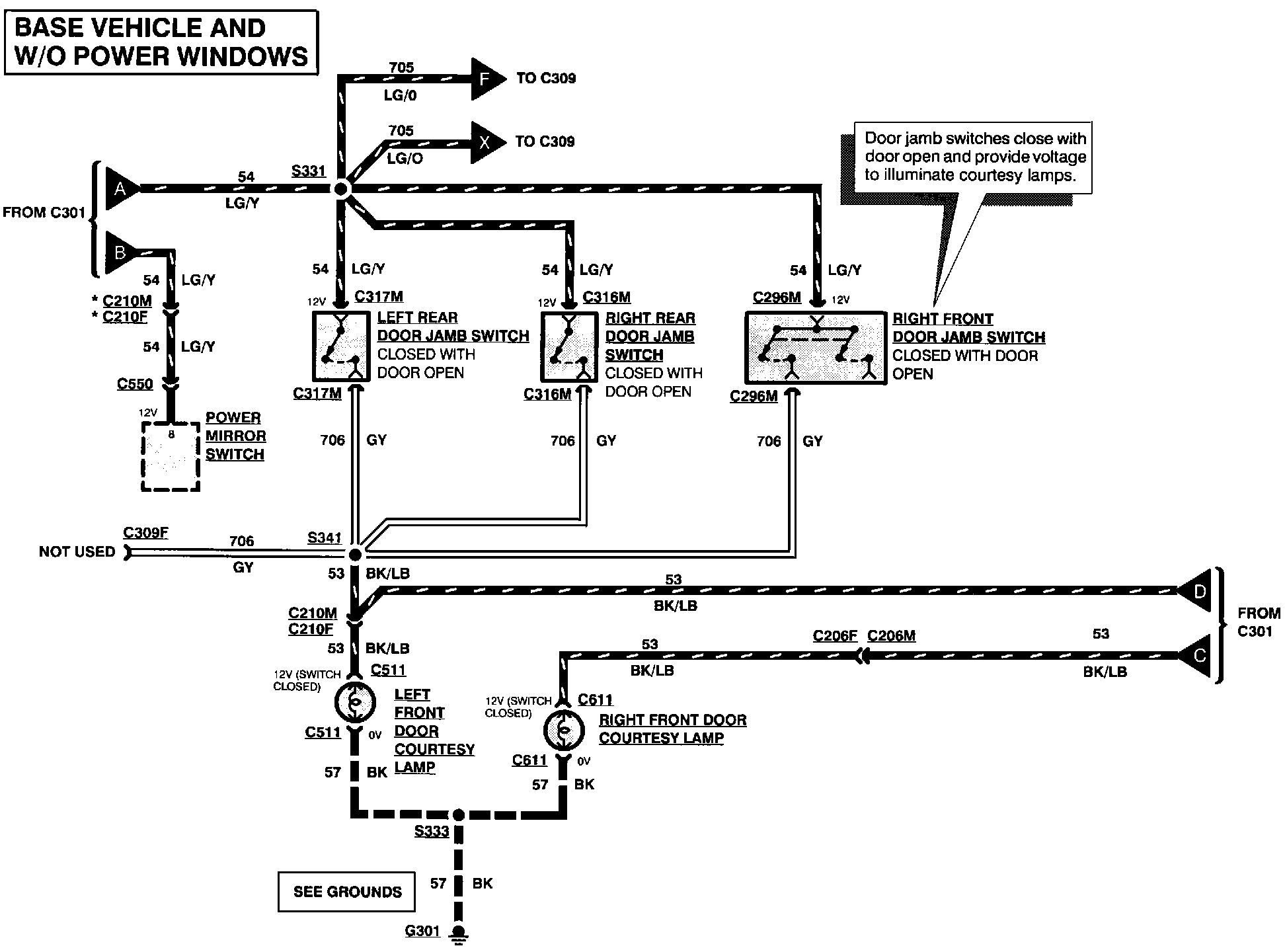

Courtesy Lamps:

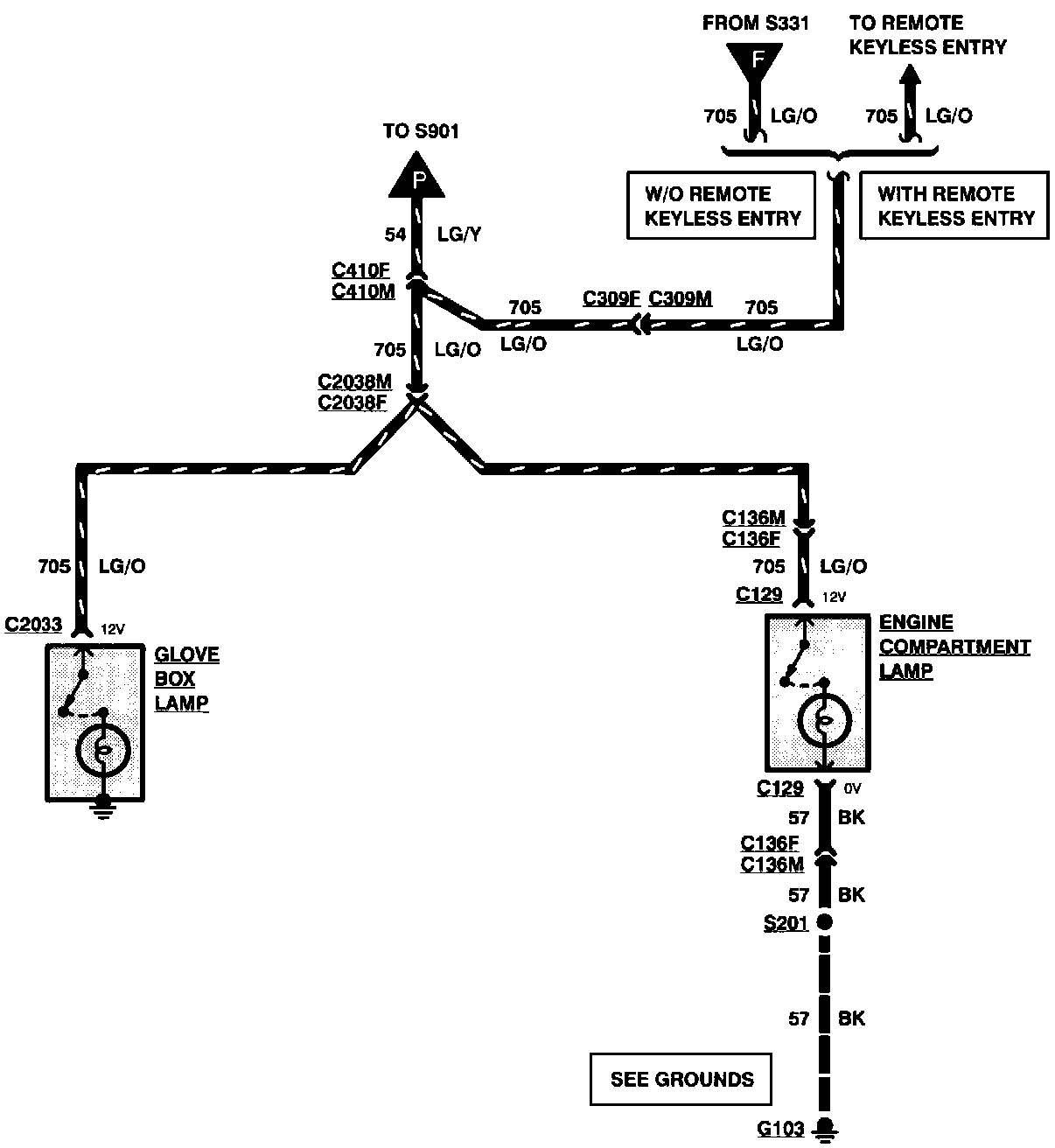

Courtesy Lamps:

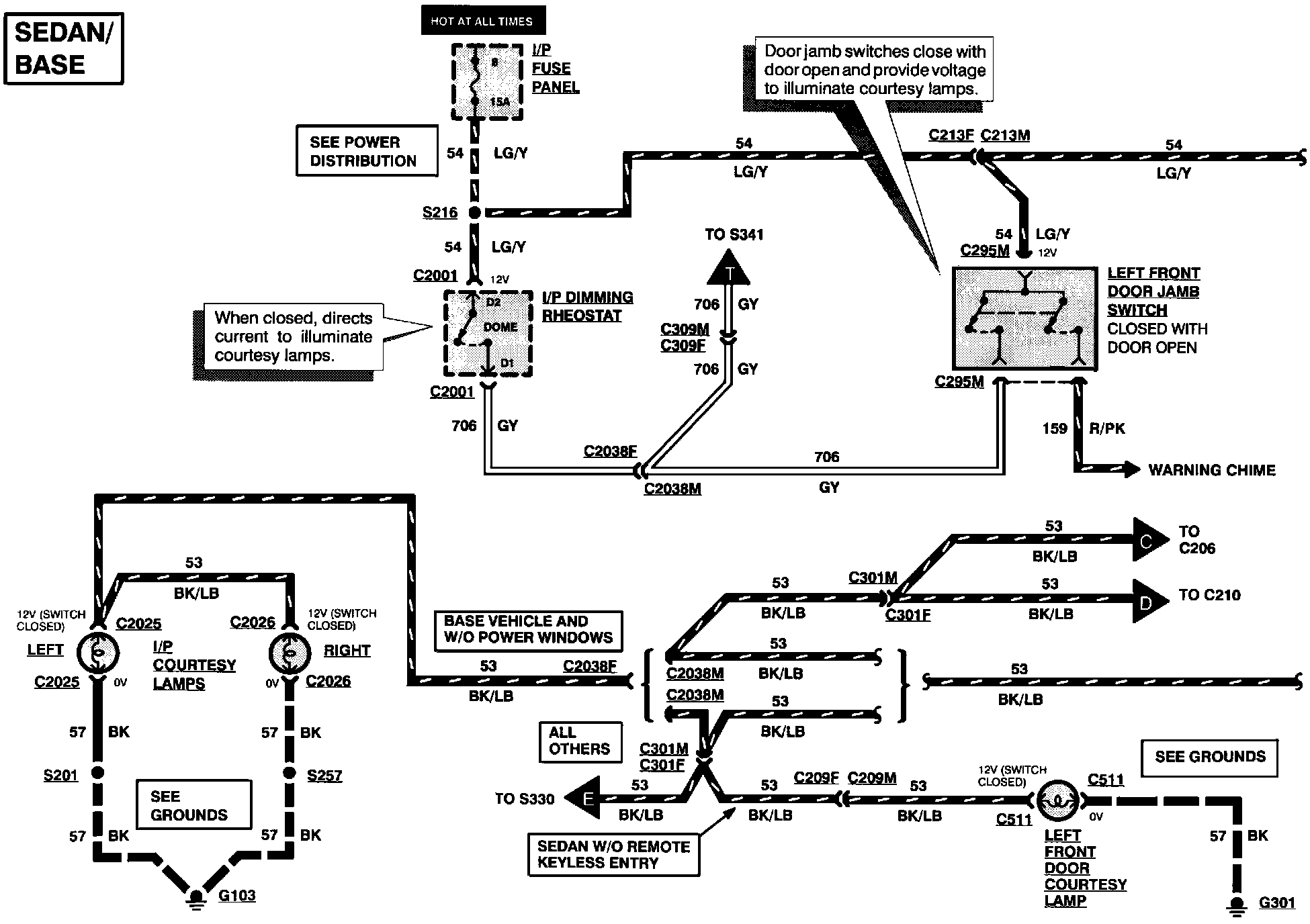

Courtesy Lamps:

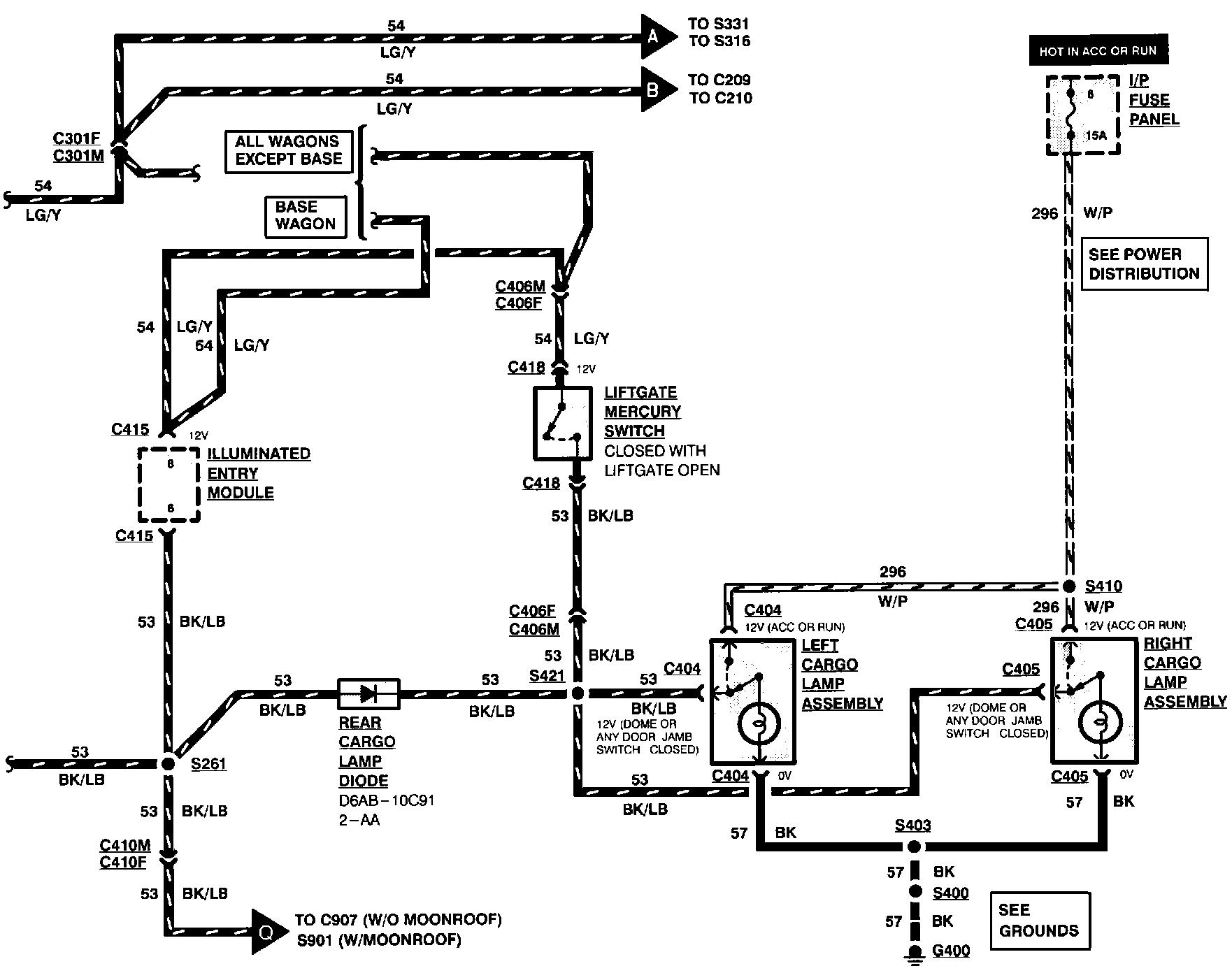

Courtesy Lamps:

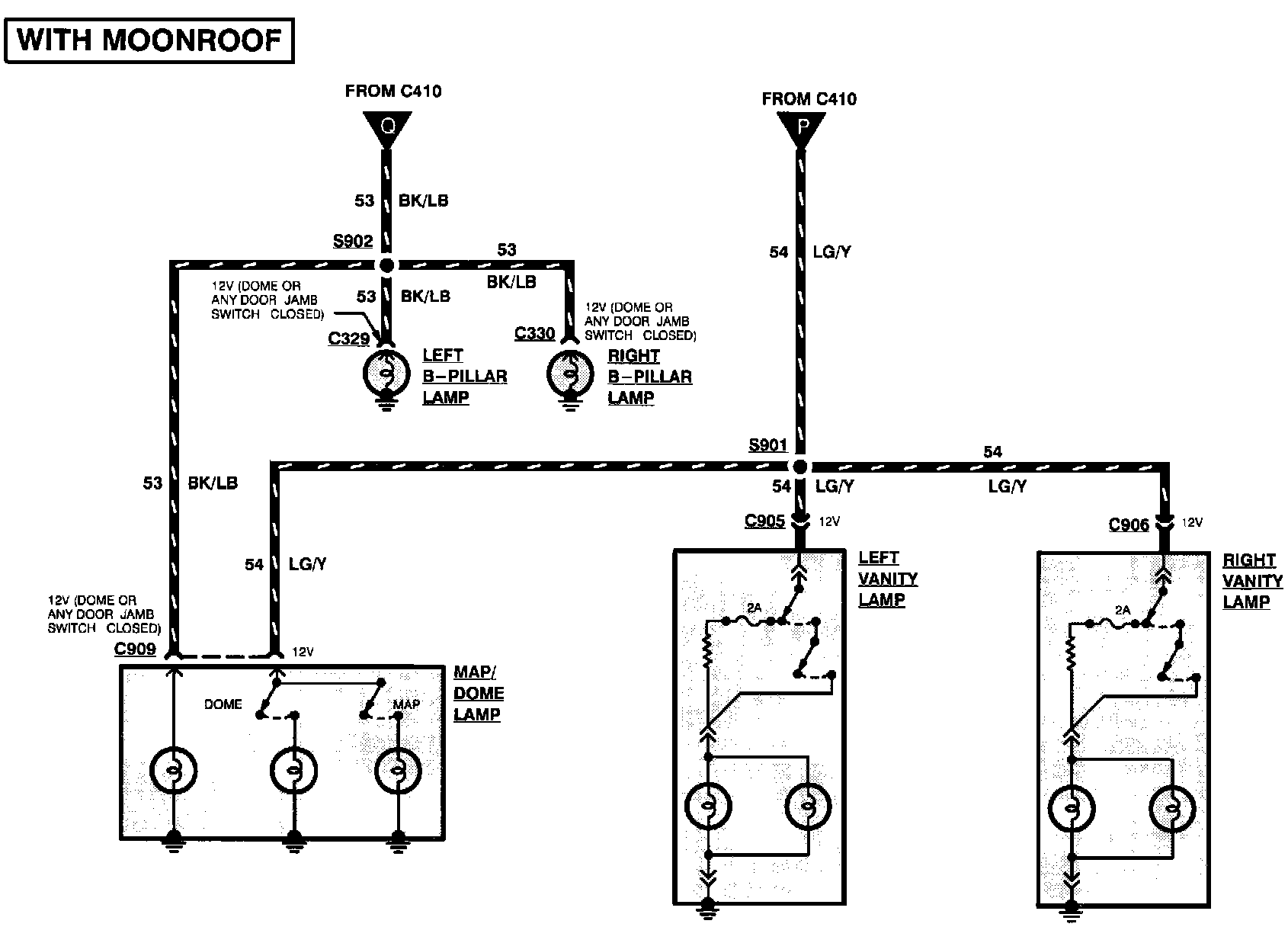

Courtesy Lamps:




Courtesy Lamps:




Courtesy Lamps:




Courtesy Lamps:
