Vacuum Schematics

NOTE: For calibration codes not listed, no vacuum diagrams were available from the manufacturer at time of production.




Calibration - 4-10G-R00
Code - LGL




Calibration - 4-10G-R00
Code - LPP

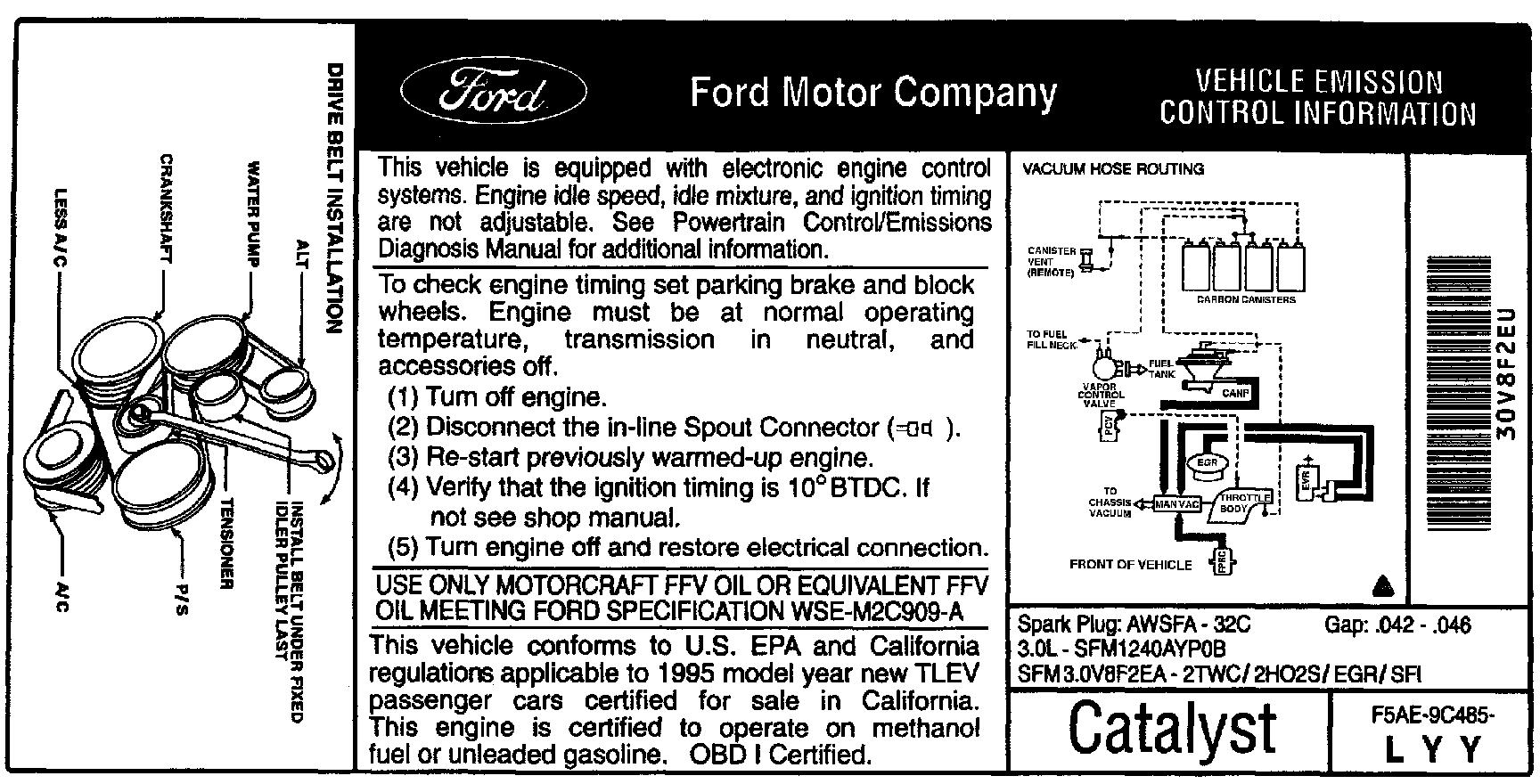

Calibration - 4-10G-R00
Code - LYY
