Engine Views

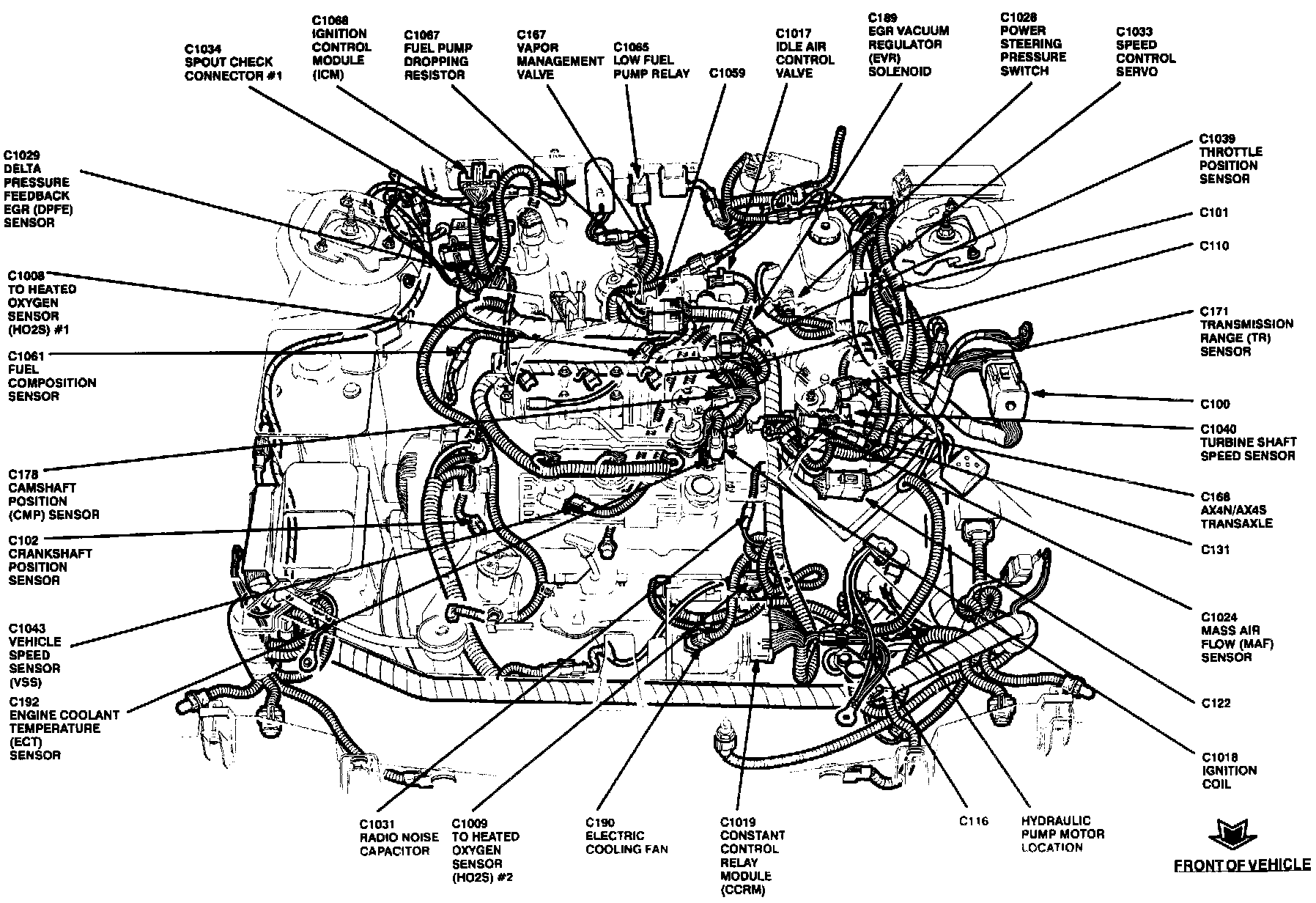

Engine View:

AX4N/AX4S TRANSAXLE
CAMSHAFT POSITION SENSOR
CONSTANT CONTROL RELAY MODULE
CRANKSHAFT POSITION SENSOR
DELTA PRESSURE FEEDBACK EGR SENSOR
ELECTRIC COOLING FAN
ENGINE COOLANT TEMPERATURE SENSOR
EGR VACUUM REGULATOR SOLENOID
FUEL COMPOSITION SENSOR
FUEL PUMP DROPPING RESISTOR
HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2
HYDRAULIC PUMP MOTOR
IDLE AIR CONTROL VALVE
IGNITION COIL
IGNITION CONTROL MODULE
LOW FUEL PUMP RELAY
MASS AIR FLOW SENSOR
POWER STEERING PRESSURE SWITCH
RADIO NOISE CAPACITOR
SPARK OUTPUT CHECK CONNECTOR #1
SPEED CONTROL SERVO
THROTTLE POSITION SENSOR
TRANSMISSION RANGE SENSOR
TURBINE SHAFT SPEED SENSOR
VAPOR MANAGEMENT VALVE
VEHICLE SPEED SENSOR

Engine View:

AMBIENT TEMPERATURE SENSOR
ANTI-LOCK BRAKE DIODE
ANTI-LOCK BRAKE FLUID LEVEL SWITCH
ANTI-LOCK BRAKE SYSTEM DATA LINK CONNECTOR
ANTI-LOCK MOTOR RELAY
ANTI-LOCK POWER RELAY
BRAKE FLUID LEVEL SWITCH
CENTER COWL PRIMARY CRASH SENSOR
DAYTIME RUNNING LAMPS MODULE
ENGINE COMPARTMENT LAMP
ENGINE OIL PRESSURE SWITCH
FUEL INJECTORS
GENERATOR/VOLTAGE REGULATOR
HIGH PITCH HORN
LEFT FRONT BRAKE SENSOR
LOW PITCH HORN
POWERTRAIN CONTROL MODULE
RIGHT FRONT PARK/TURN LAMP
SOLENOID CONTROL VALVE BODY
STARTER MOTOR/SOLENOID
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR

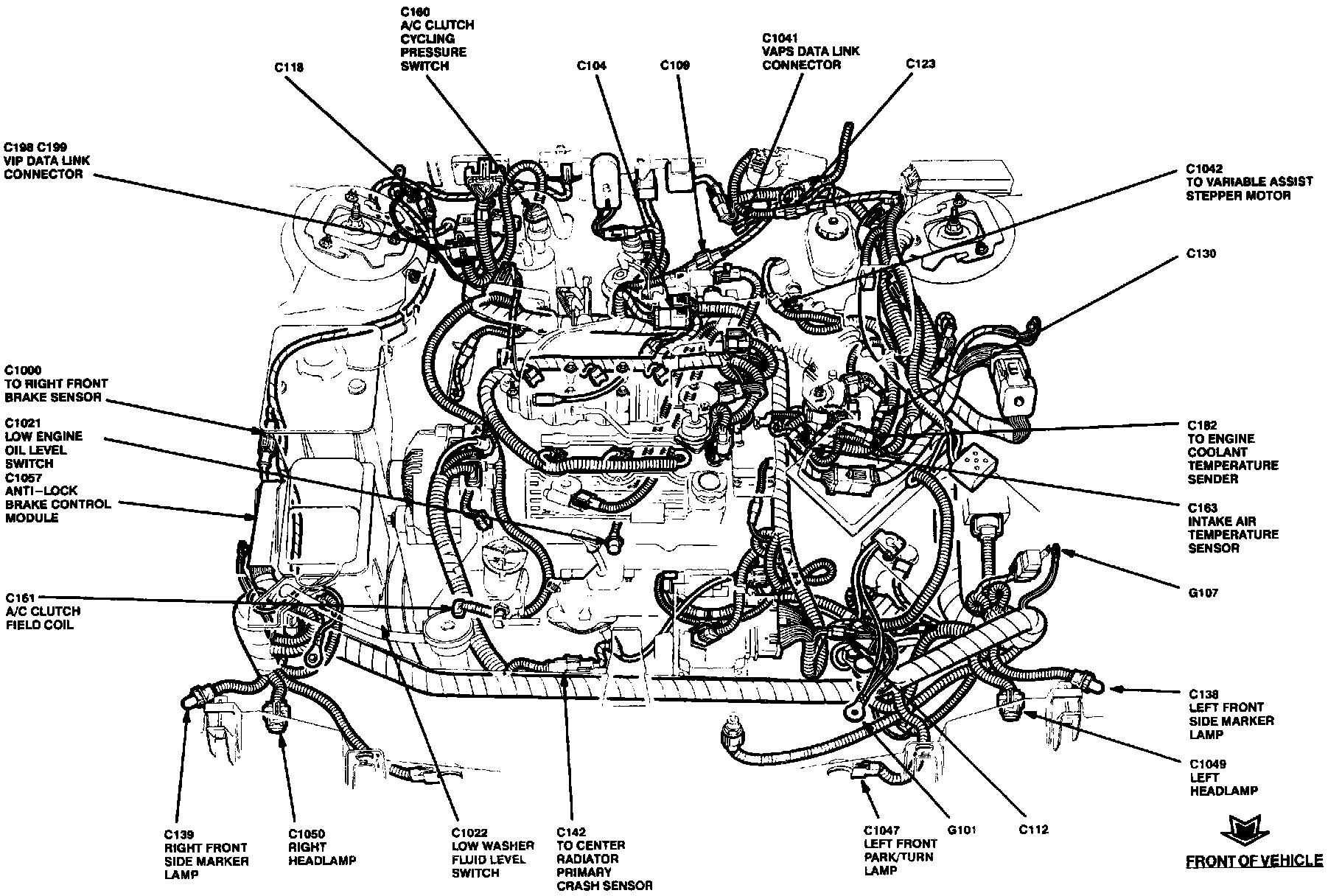

Engine View:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH FIELD COIL
ANTI-LOCK BRAKE CONTROL MODULE
CENTER RADIATOR PRIMARY CRASH SENSOR
ENGINE COOLANT TEMPERATURE SENDER
INTAKE AIR TEMPERATURE SENSOR
LEFT FRONT PARK/TURN LAMP
LEFT FRONT SIDE MARKER LAMP
LEFT HEADLAMP
LOW ENGINE OIL LEVEL SWITCH
LOW WASHER FLUID LEVEL SWITCH
RIGHT FRONT BRAKE SENSOR
RIGHT FRONT SIDE MARKER LAMP
RIGHT HEADLAMP
VARIABLE ASSIST POWER STEERING DATA LINK CONNECTOR
VARIABLE ASSIST STEPPER MOTOR
VIP DATA LINK CONNECTOR
