Electrical Diagrams

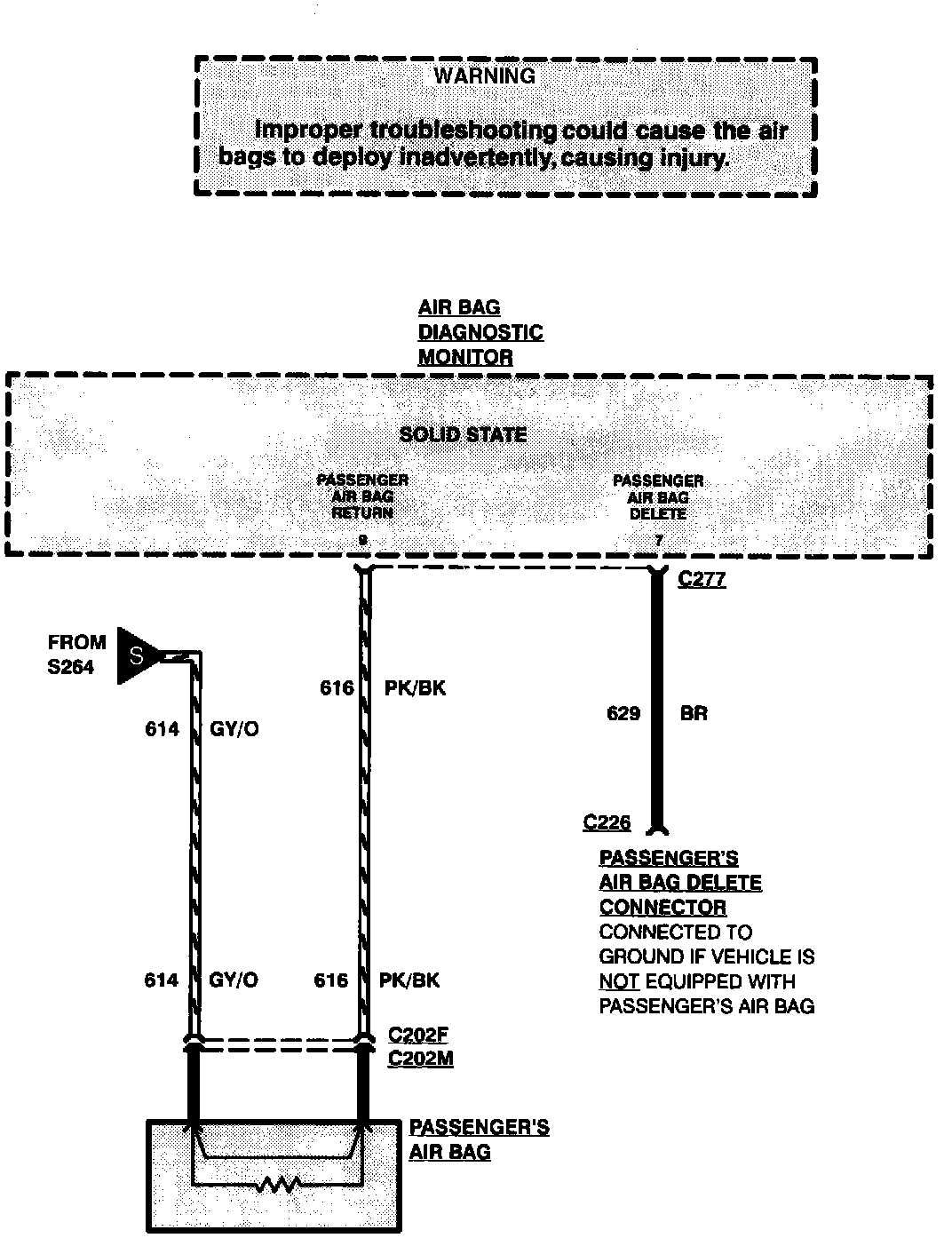

Air Bag Restraint System (Part 1 Of 3):

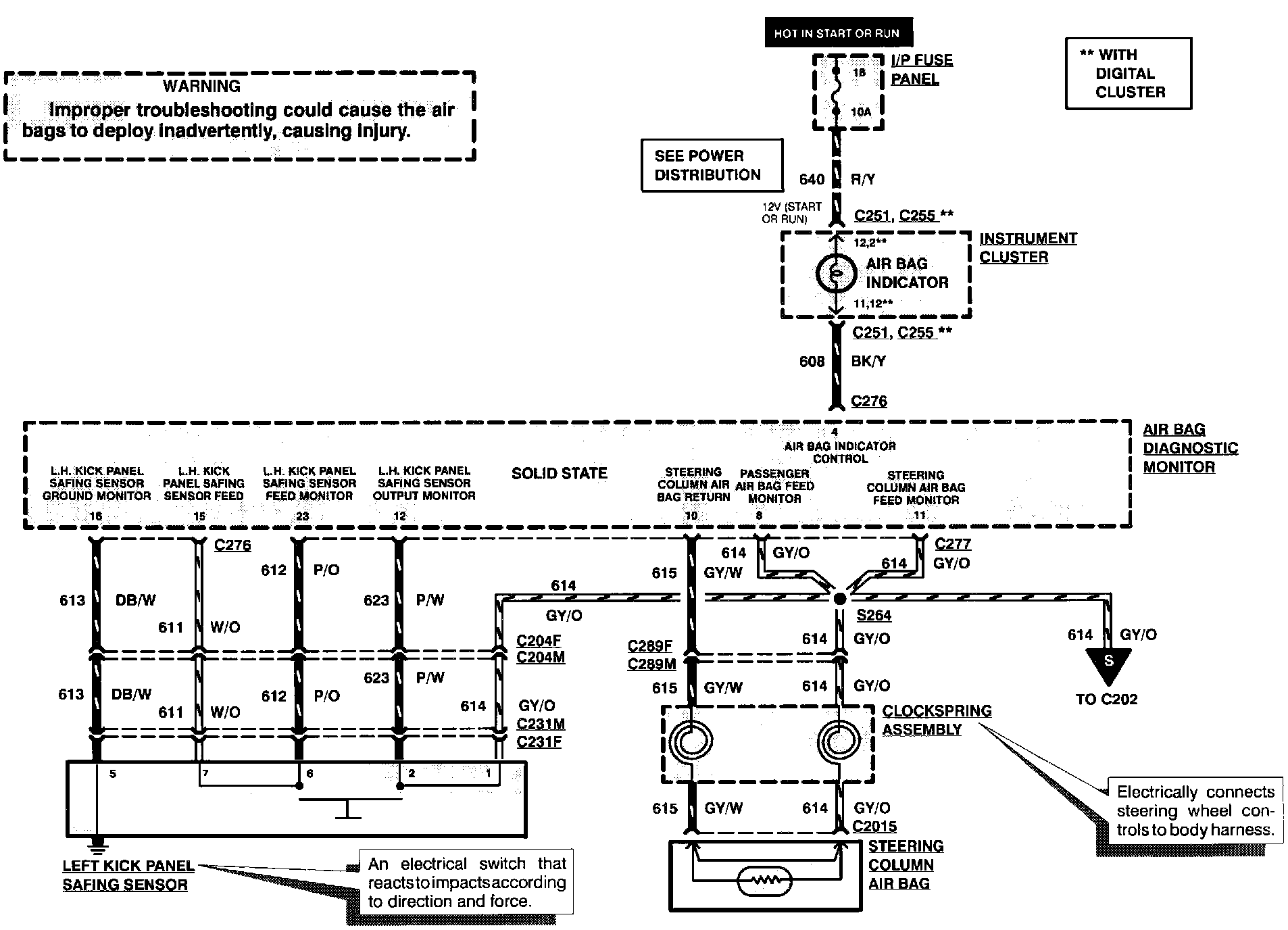

Air Bag Restraint System (Part 2 Of 3):

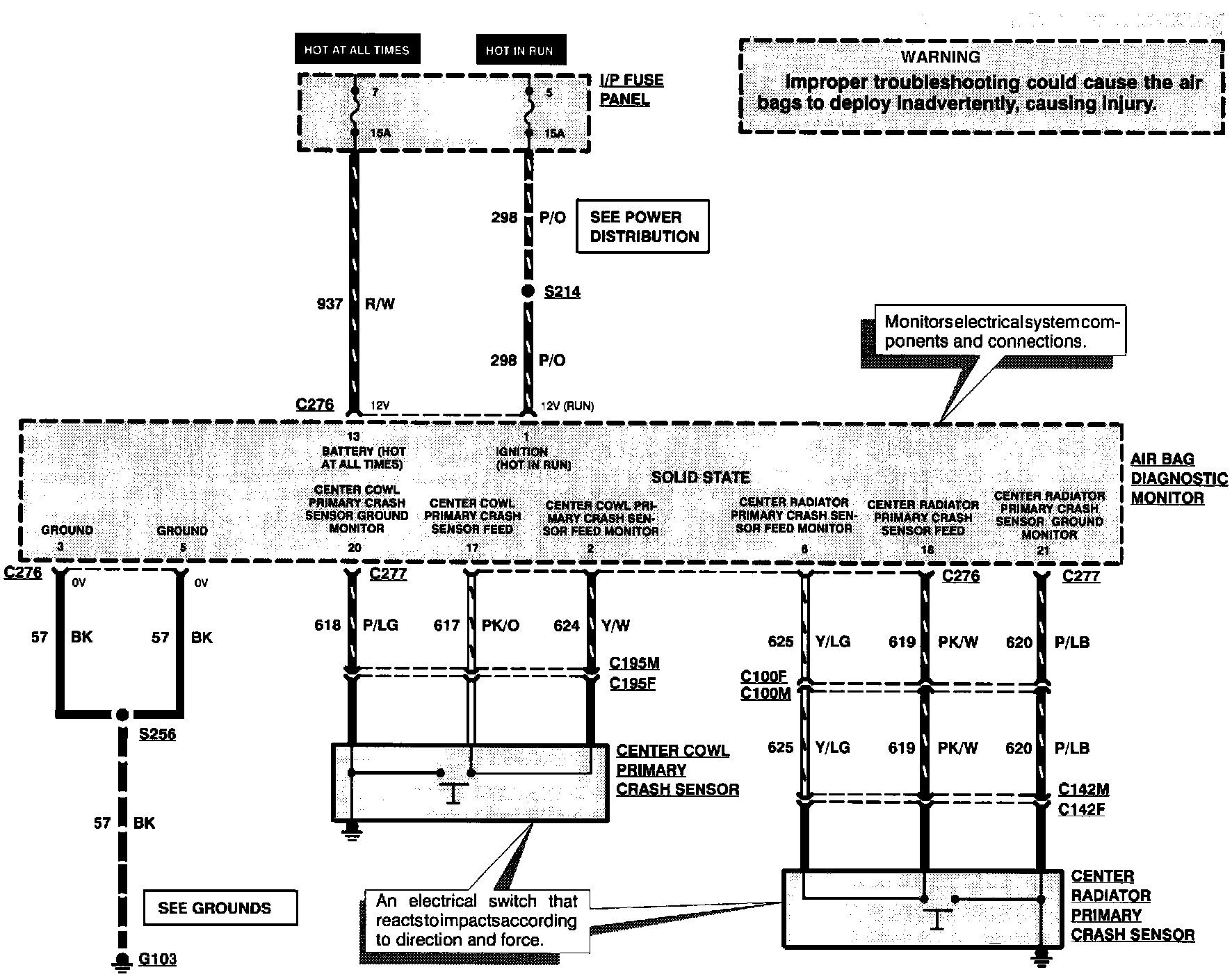

Air Bag Restraint System (Part 3 Of 3):
