Backup Lamp Switch
Backup Lamp Switch

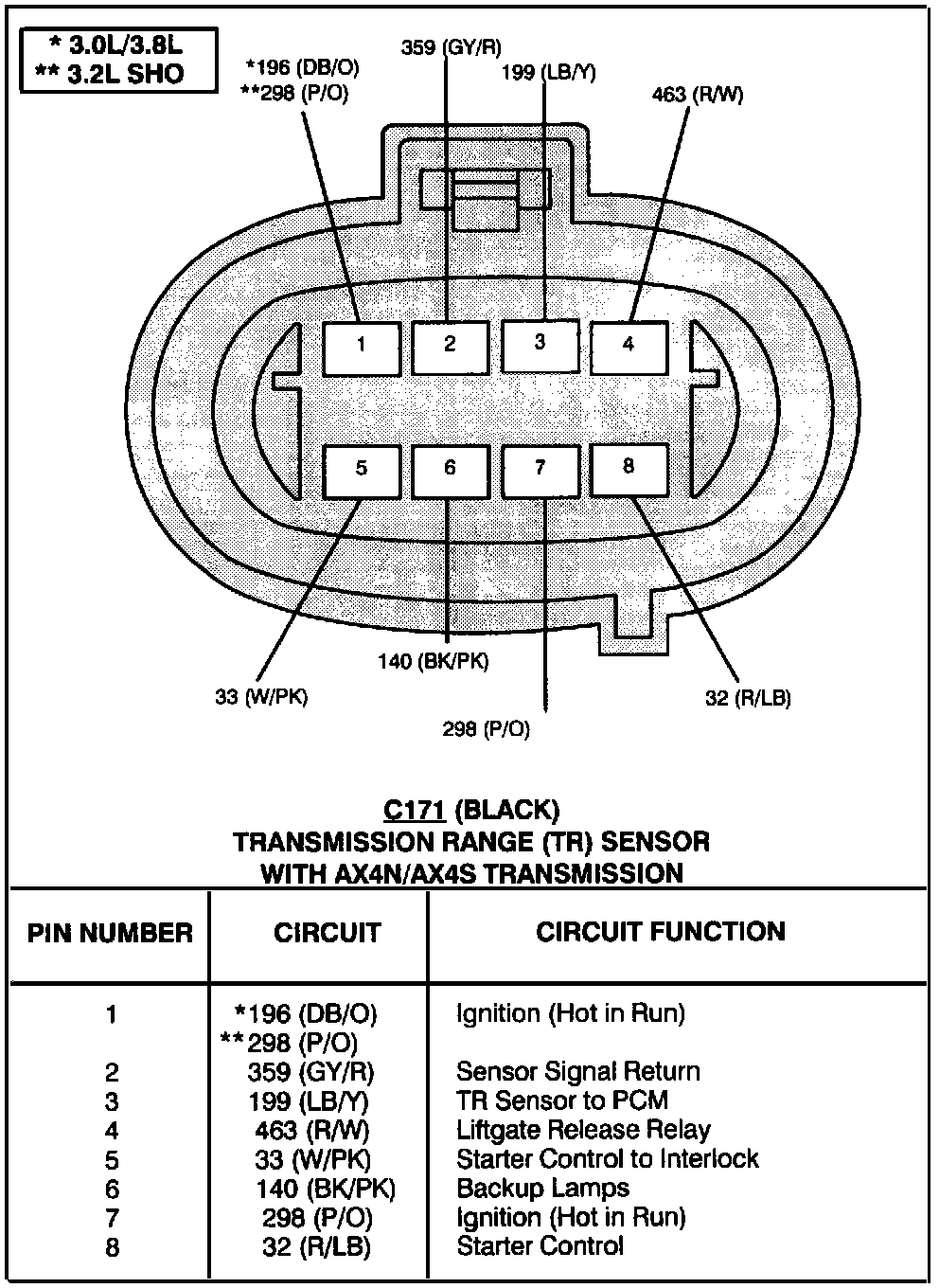

Transmission Range Sensor (With AX4N/AX4S Transmission):
Transmission Range Sensor (With AX4N/AX4S Transmission):

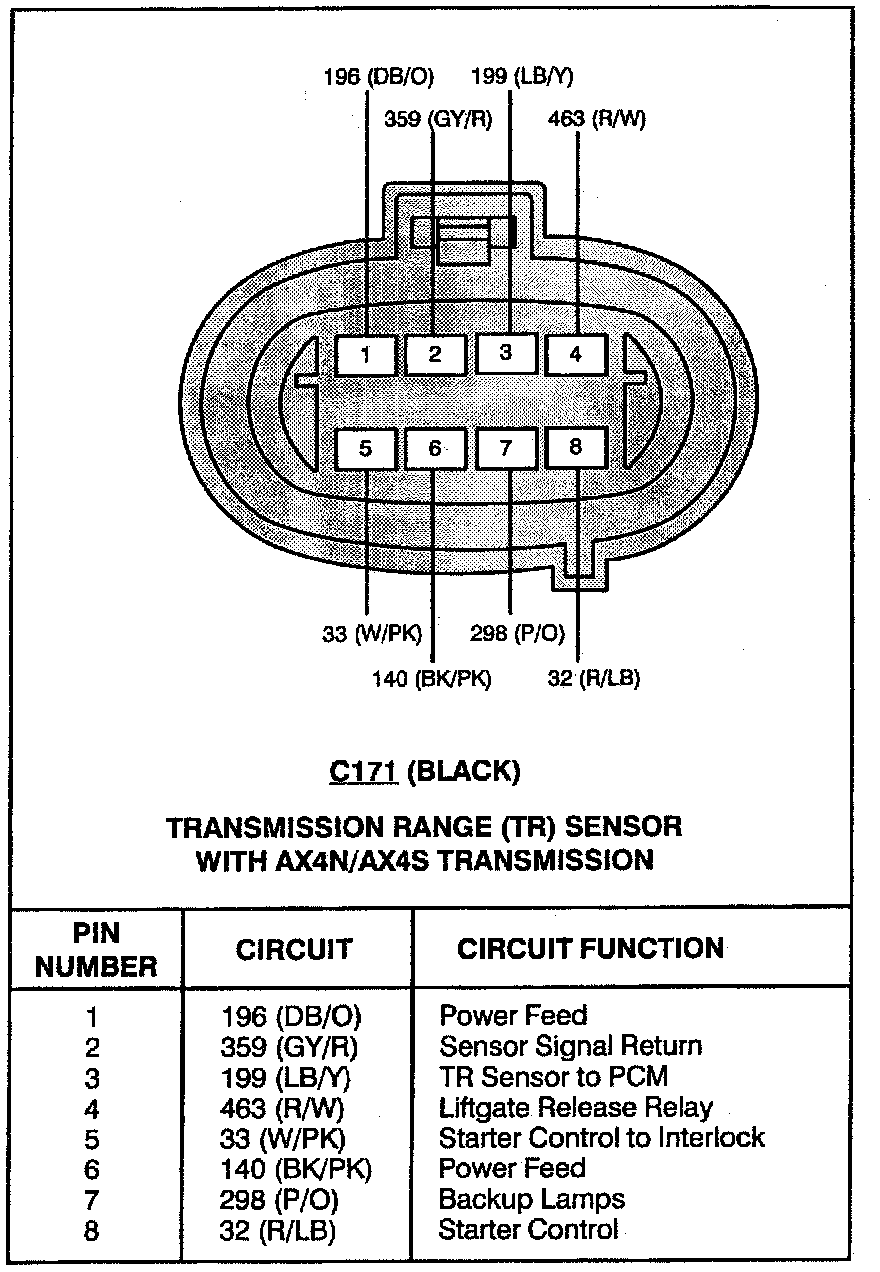

Connector View:
Connector View:
