Cigarette Lighter: Service and Repair

NOTE: Do not remove ash receptacle retainer from instrument panel.

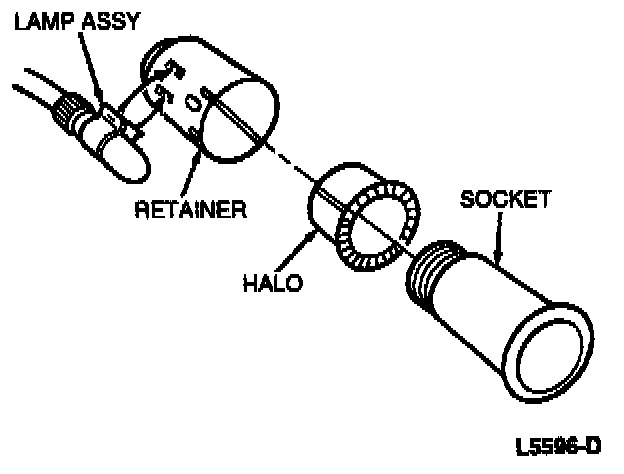

1. Remove ash receptacle drawer.
2. Disconnect wires to cigar lighter socket and retainer.
3. Remove the cigar lighter socket and retainer by unscrewing retainer from socket.
4. To install, reverse removal procedure.
