Dimmer Switch: Testing and Inspection

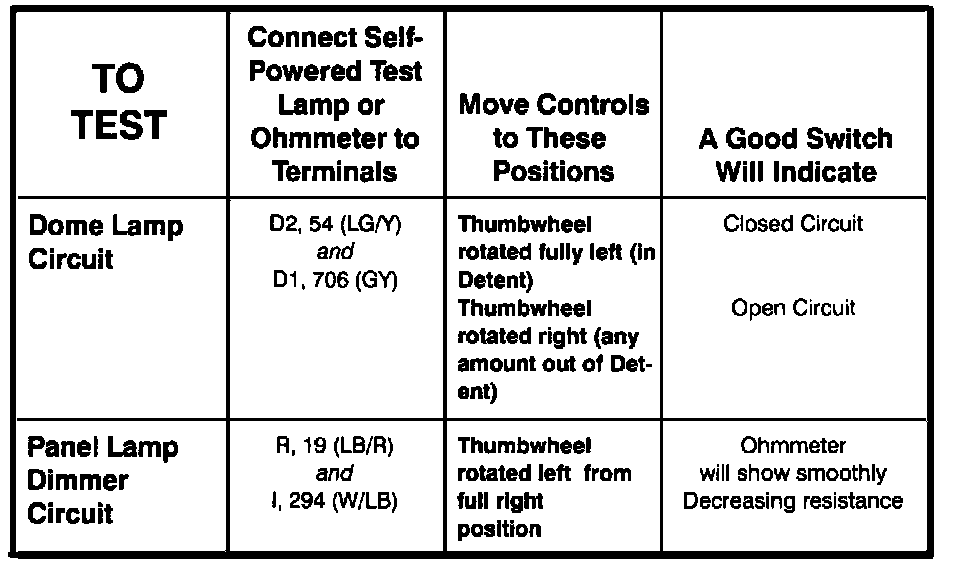

Component Testing Procedure:

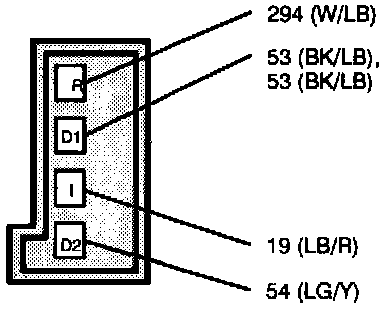

Instrument Panel Dimming Rheostat - Terminal Locations:

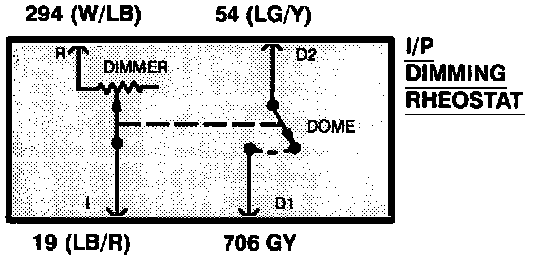

Instrument Panel Dimming Rheostat - Schematic:
