Probe L4-121 2.0L DOHC VIN A MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Data Link Connector
>>
OBD II Data Link Connector
OBD II Data Link Connector

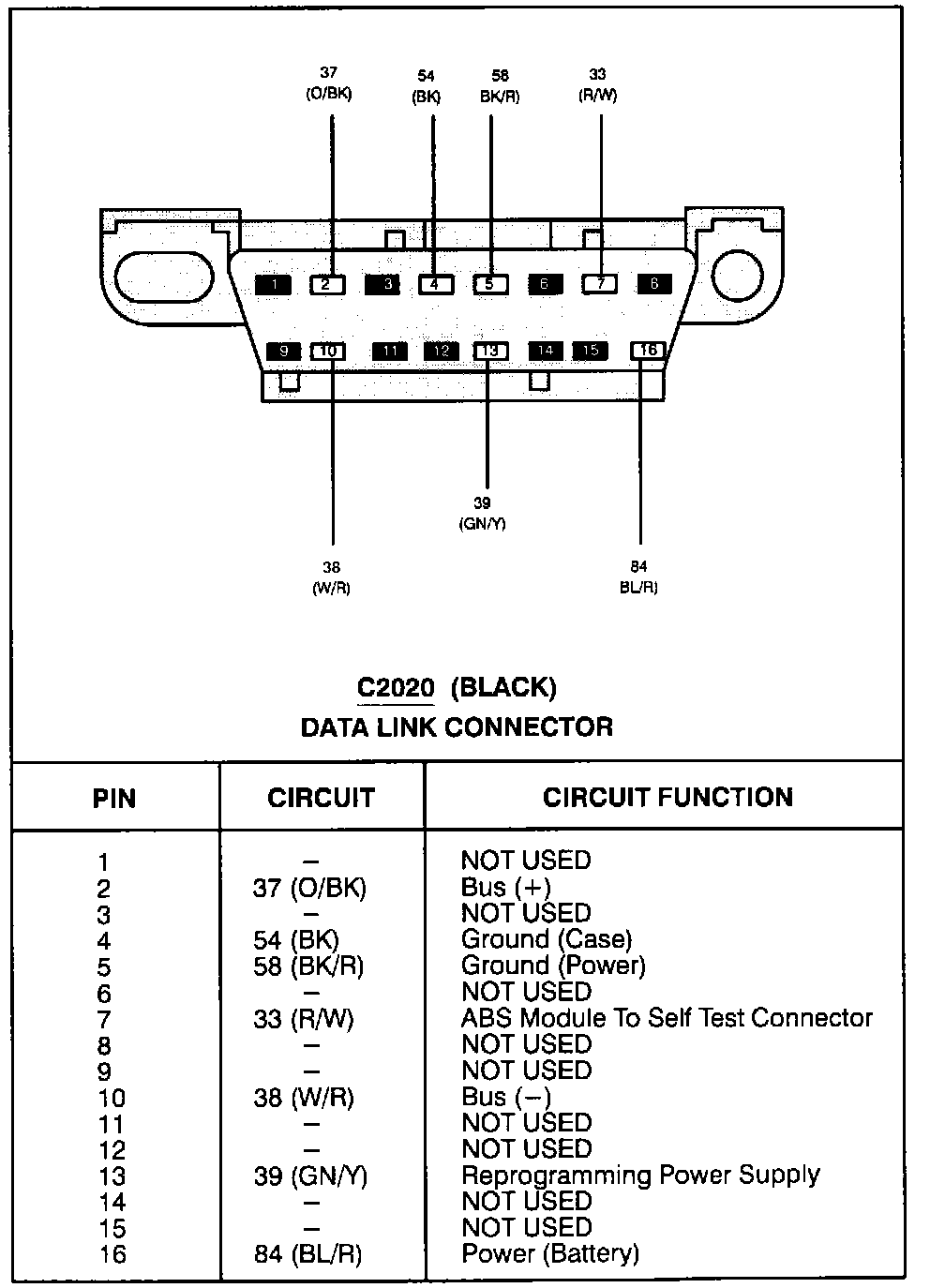

Data Link Connector (C2020):
