System Diagram
System Diagram

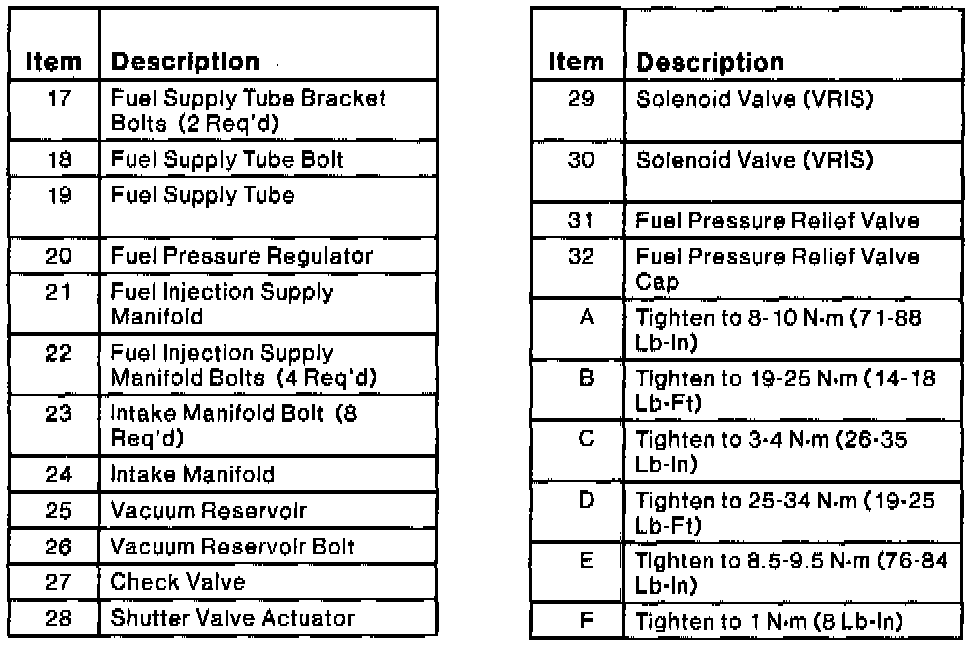

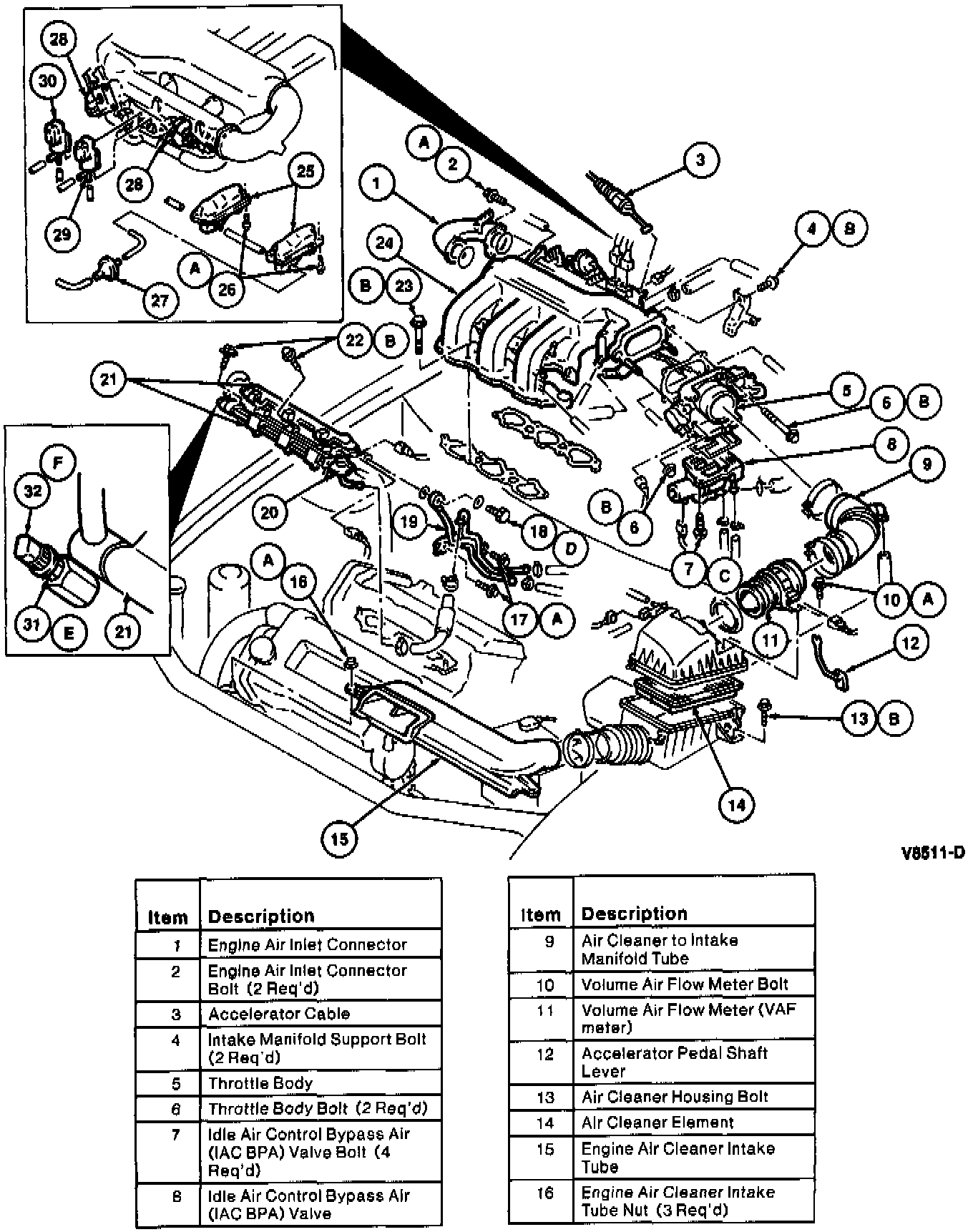

Fuel System And Air Induction Systems:
Fuel System And Air Induction Systems:
