With A/C

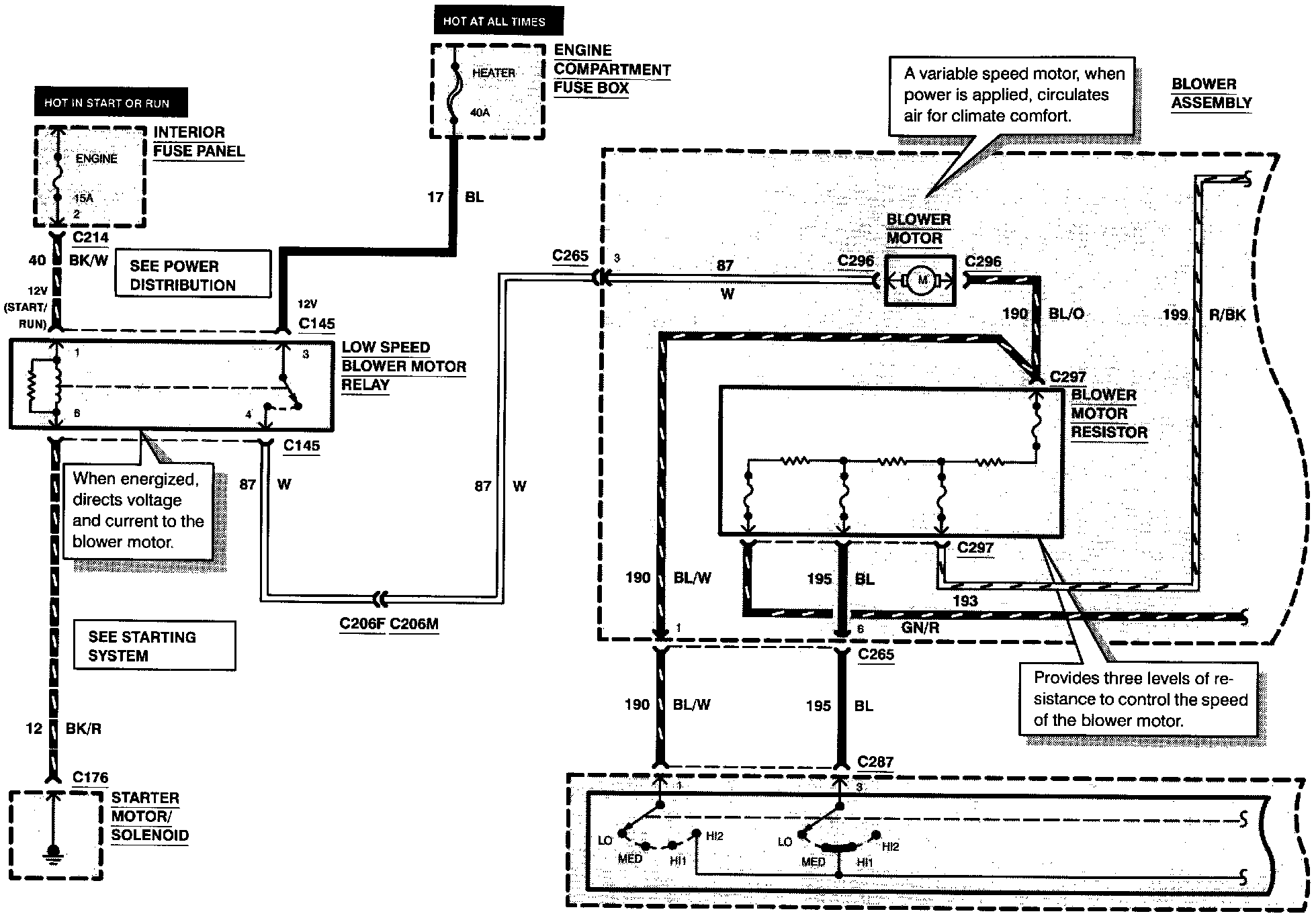

Air Conditioner/Heater:

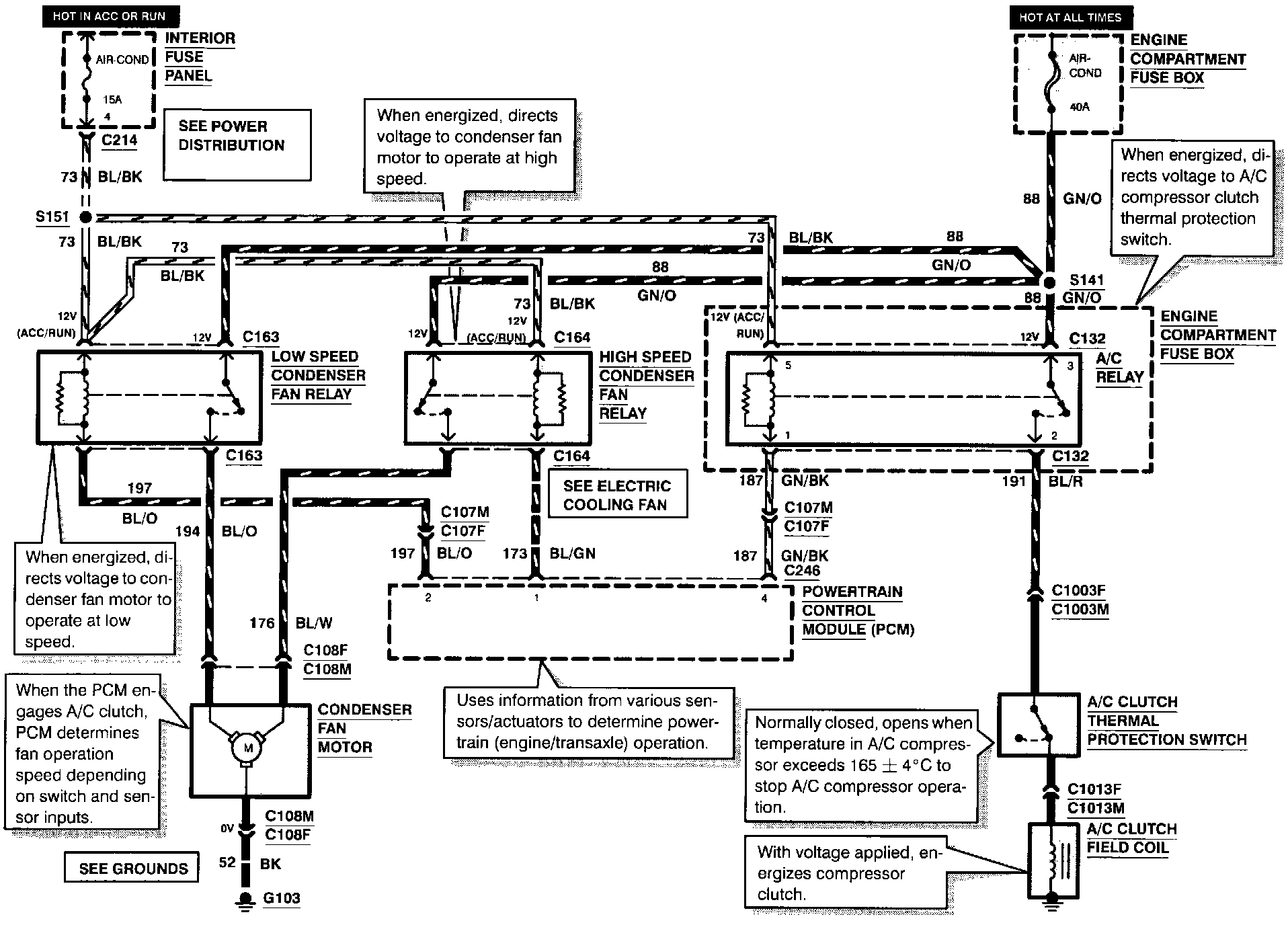

Air Conditioner/Heater:

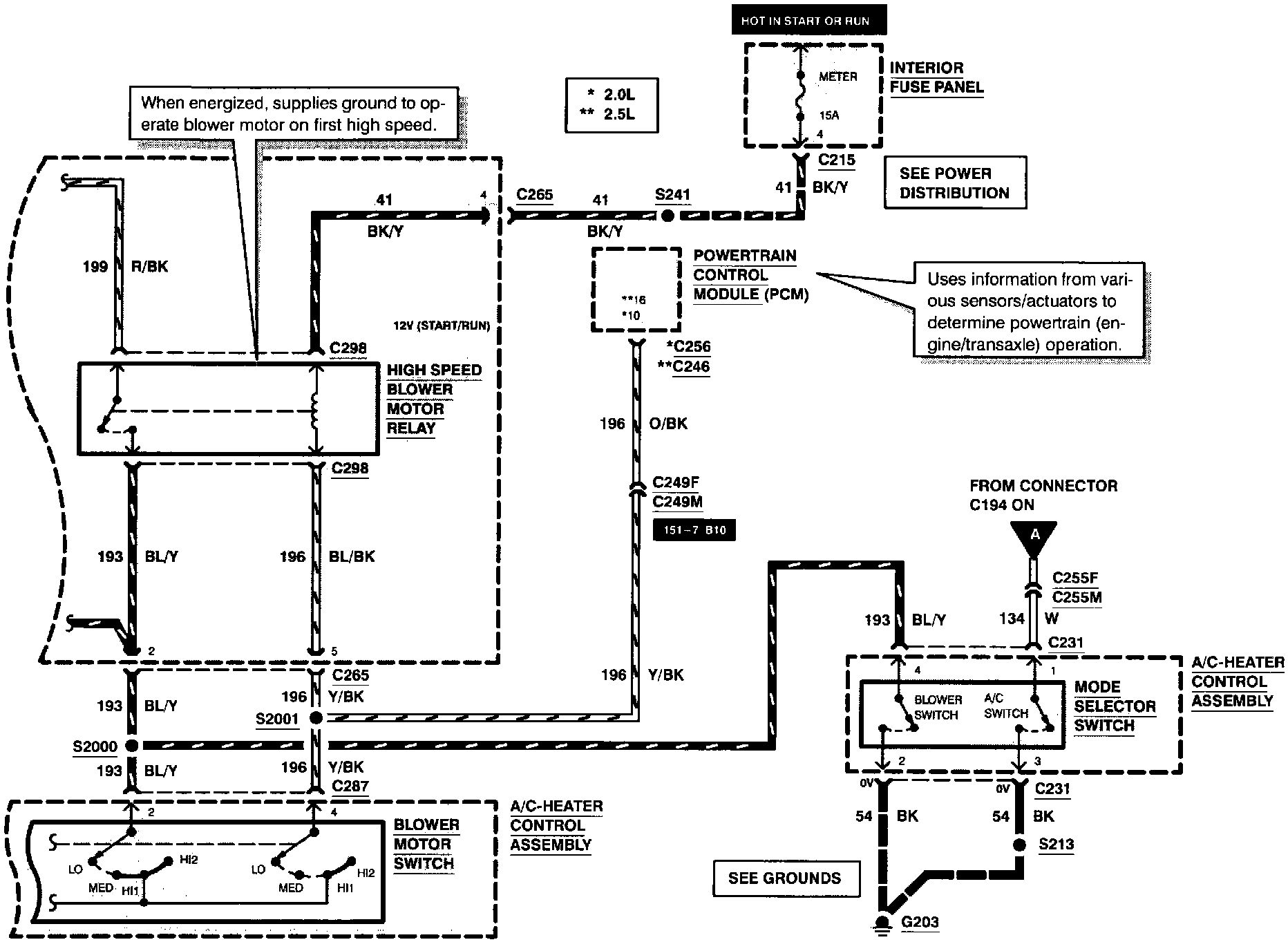

Air Conditioner/Heater:

Air Conditioner/Heater:
