Brake Warning Indicator: Testing and Inspection

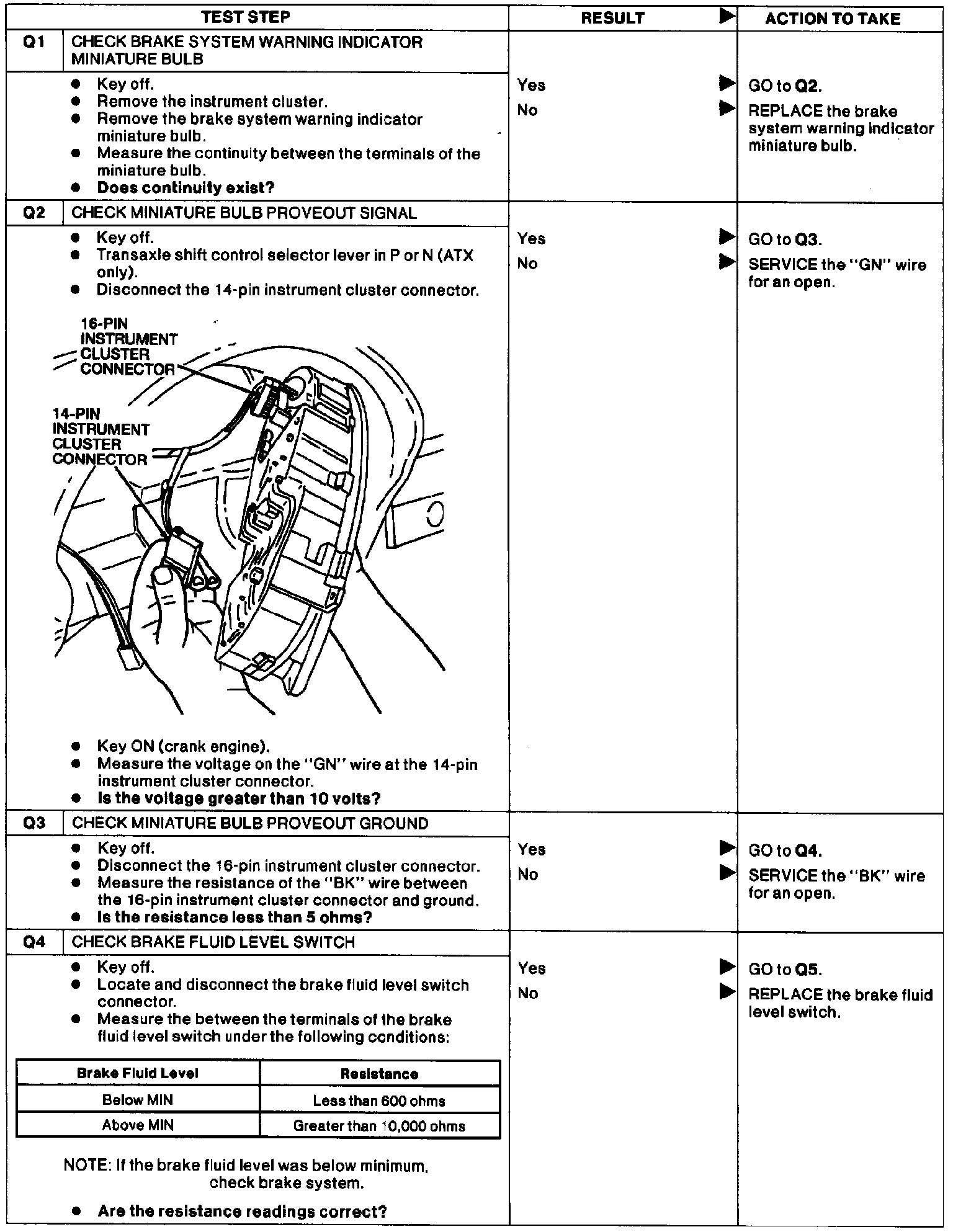

Test Q: Brake System Warning Lamp Inoperative:





Test Q1-Q4

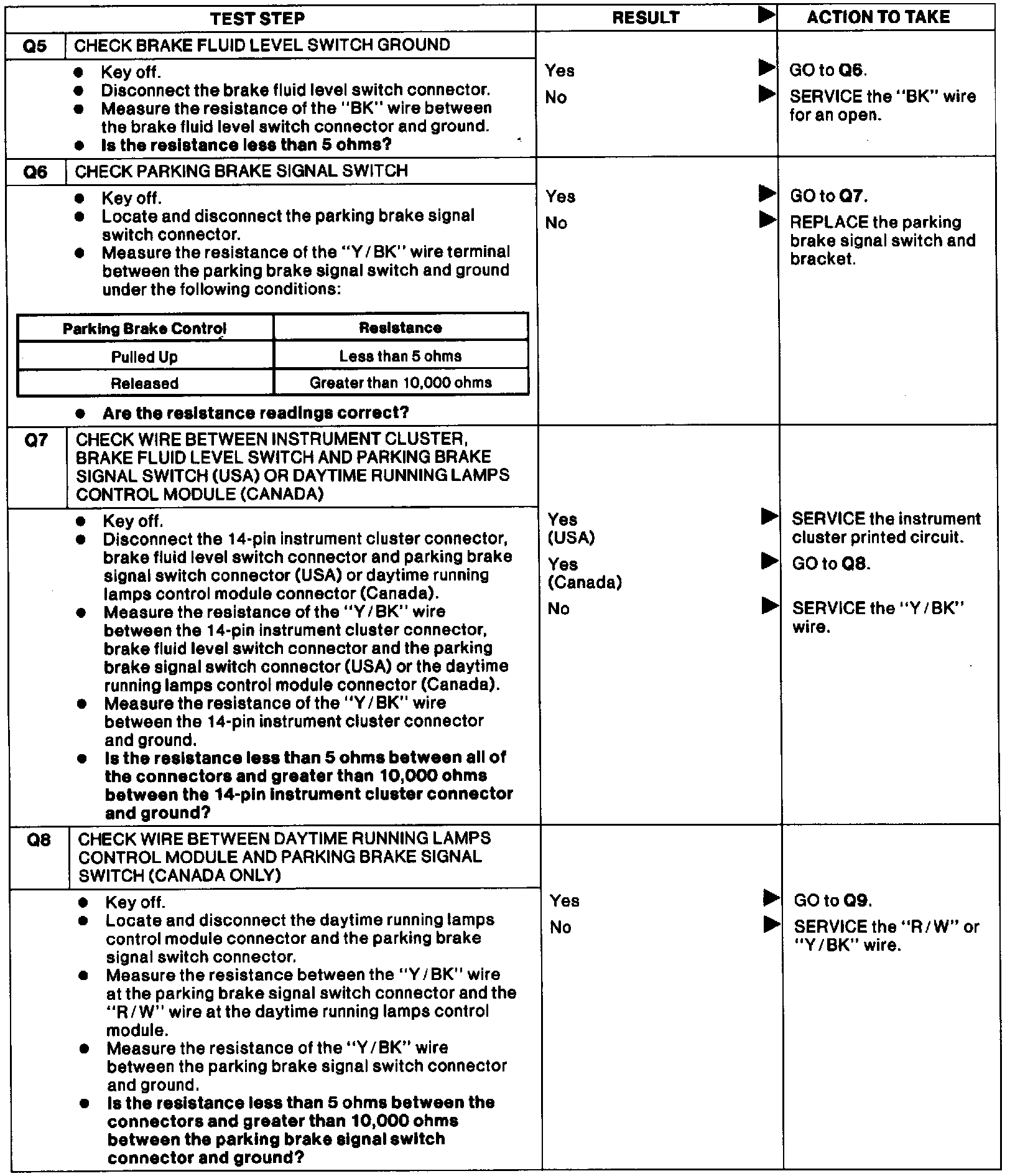

Test Q: Brake System Warning Lamp Inoperative:





Test Q5-Q8

Test Q: Brake System Warning Lamp Inoperative:





Test Q9
