Instrument Cluster - Housing

Removal
1. Disconnect the battery ground cable.
2. Loosen the hood latch control handle and cable nut.
3. Remove the instrument panel lower side panel screw.
4. Twist out the LH foot interior lamp socket from the instrument panel lower side panel.
5. Remove the instrument panel lower side panel.

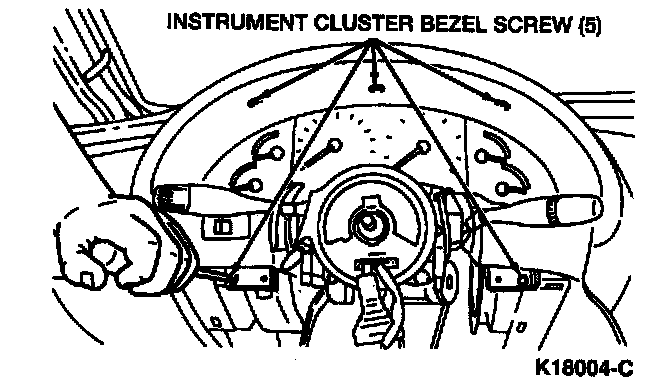

Steering Wheel Removed For Clarity:

6. Remove the five instrument cluster housing screws.

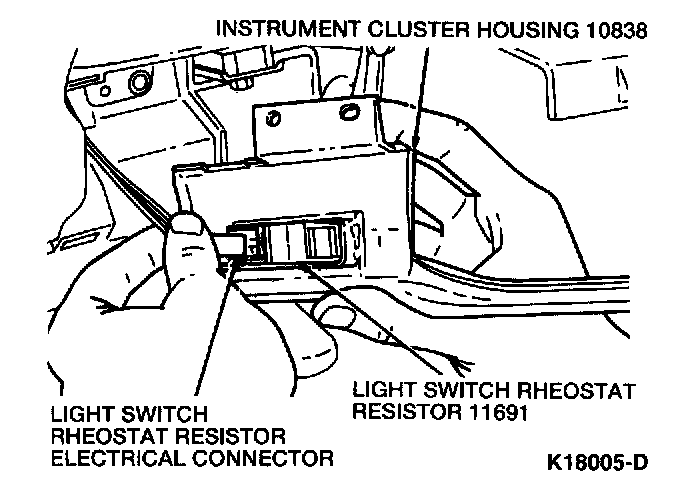

7. Disconnect the light switch rheostat resistor electrical connector from the instrument cluster.
8. Remove the instrument cluster housing.

Installation
To install, reverse the removal procedure.
