Home >> Ford >> 1996 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Speedometer Head >> Testing and Inspection

Speedometer Head: Testing and Inspection

Test L: Speedometer Inoperative.:

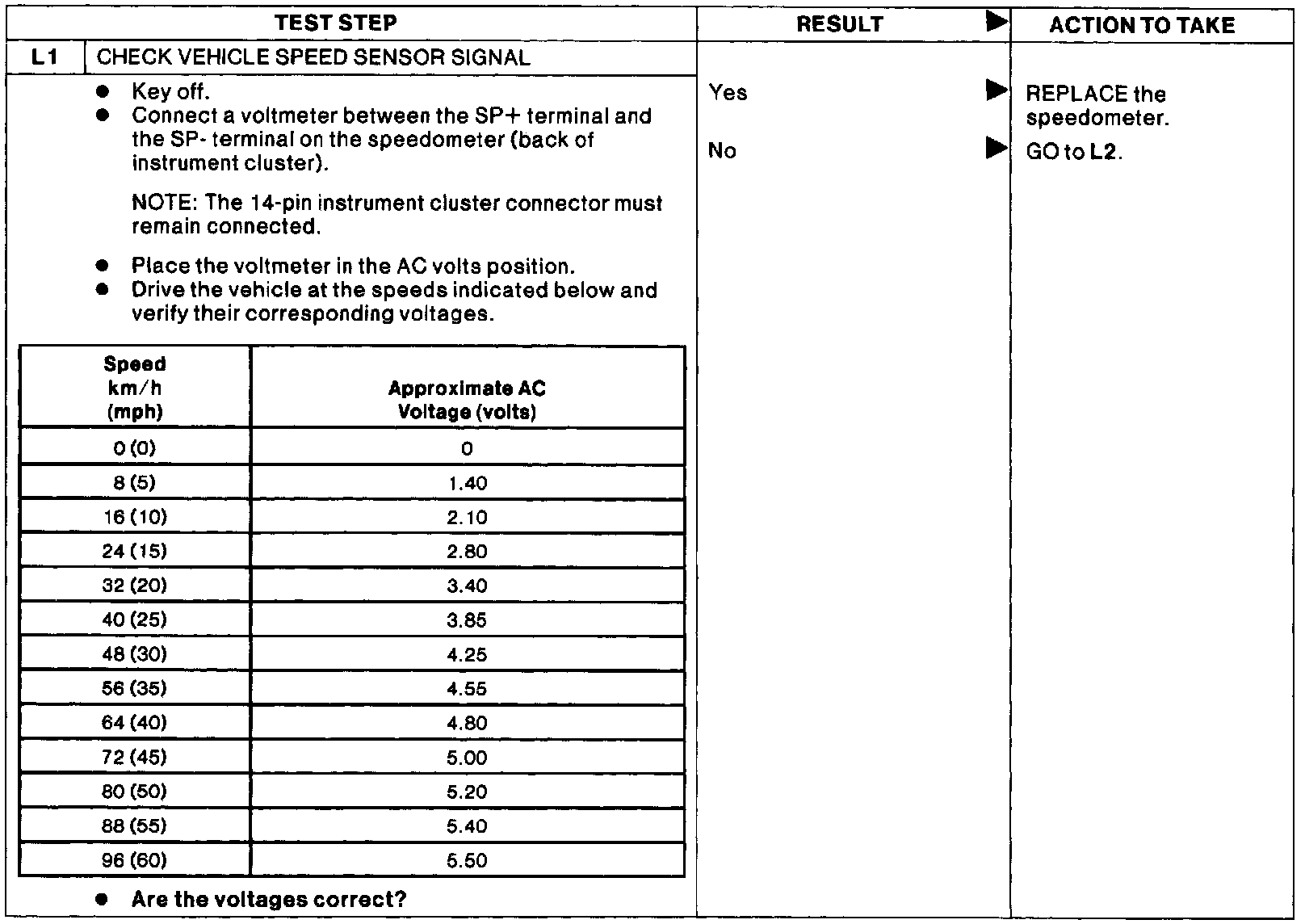

Test L1

Test L: Speedometer Inoperative.:

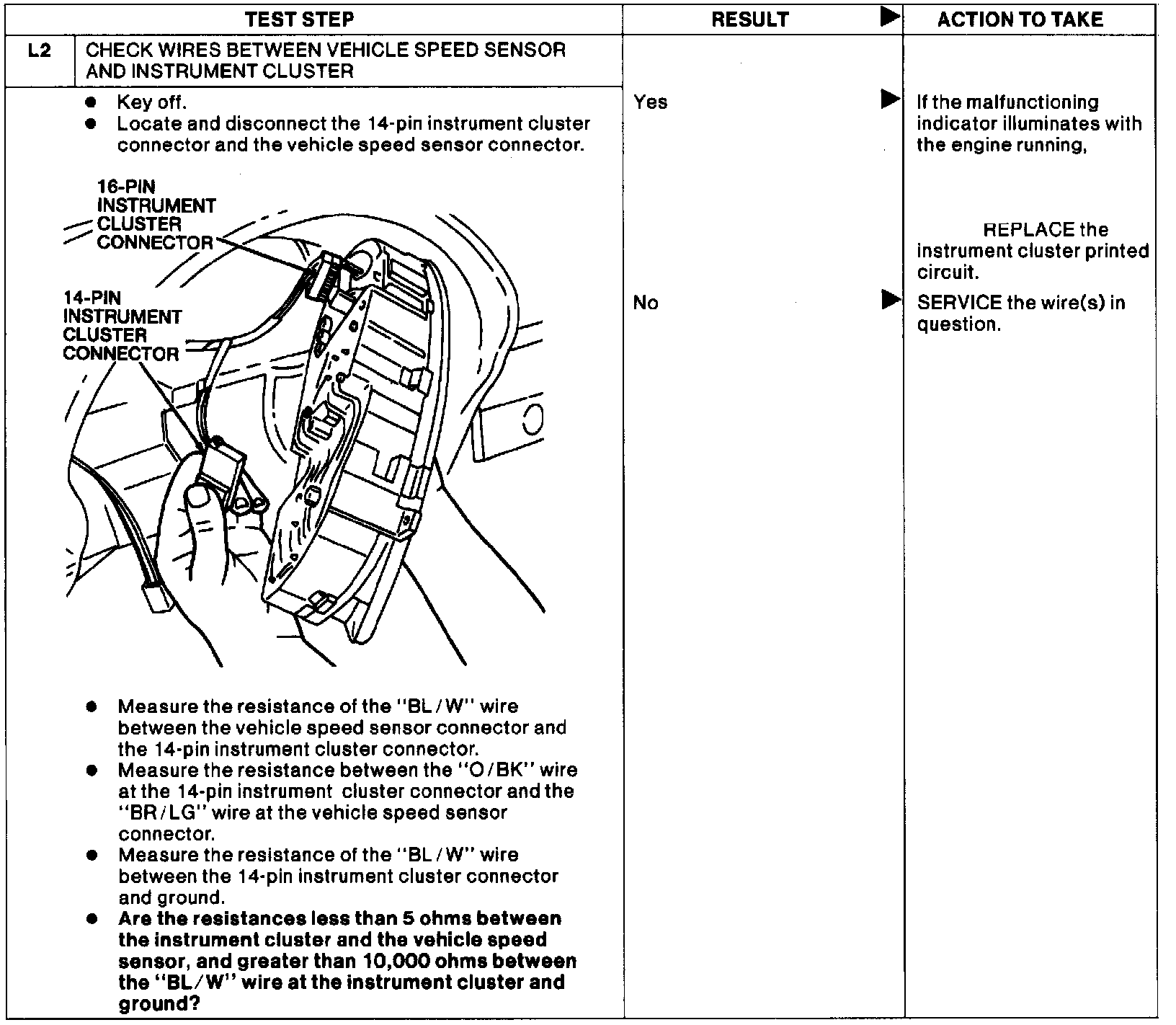

Test L2
