Ground Diagrams (By Component Name)

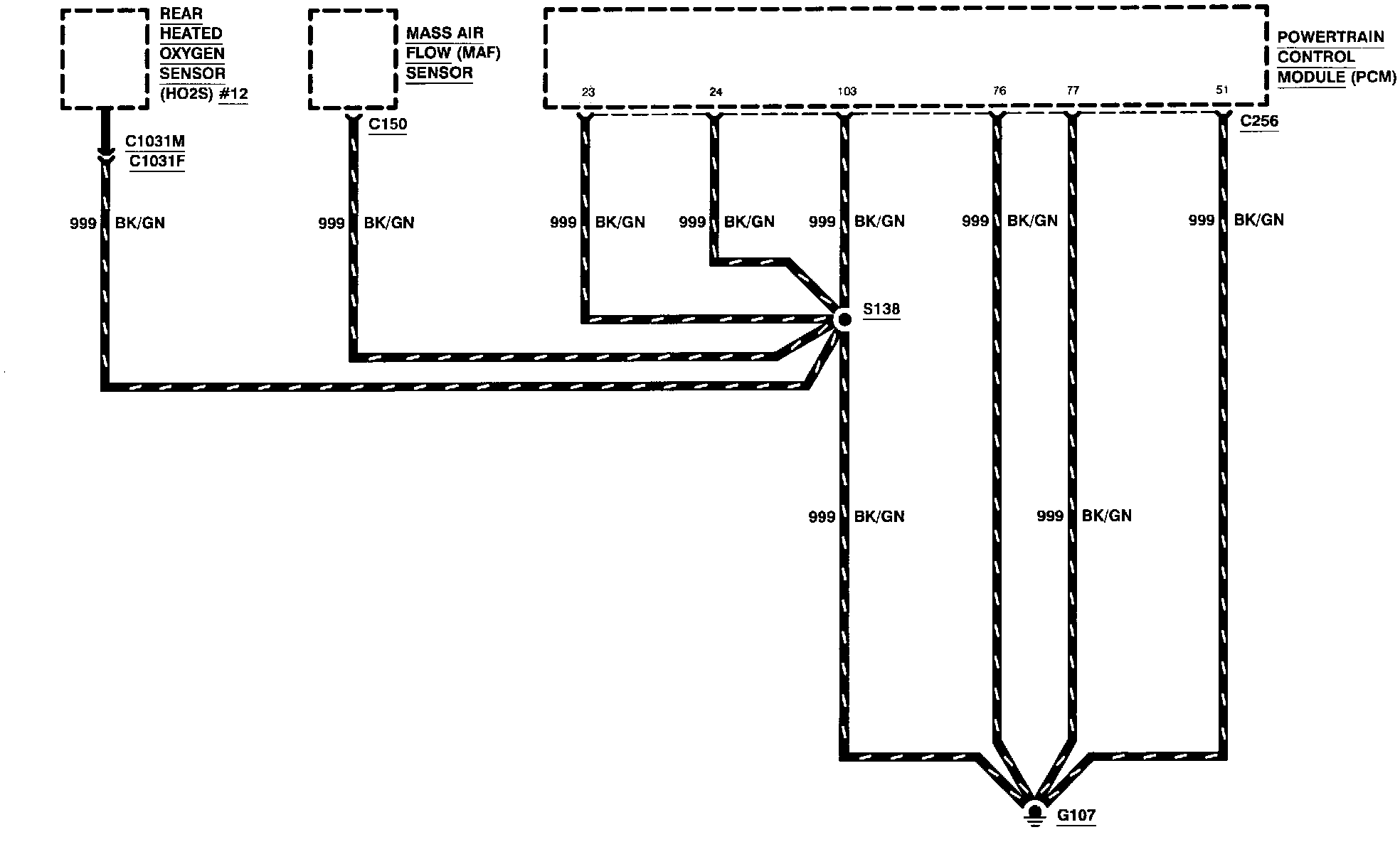

Grounds (G107):
Mass Air Flow Sensor
Powertrain Control Module
Rear Heated Oxygen Sensor #12

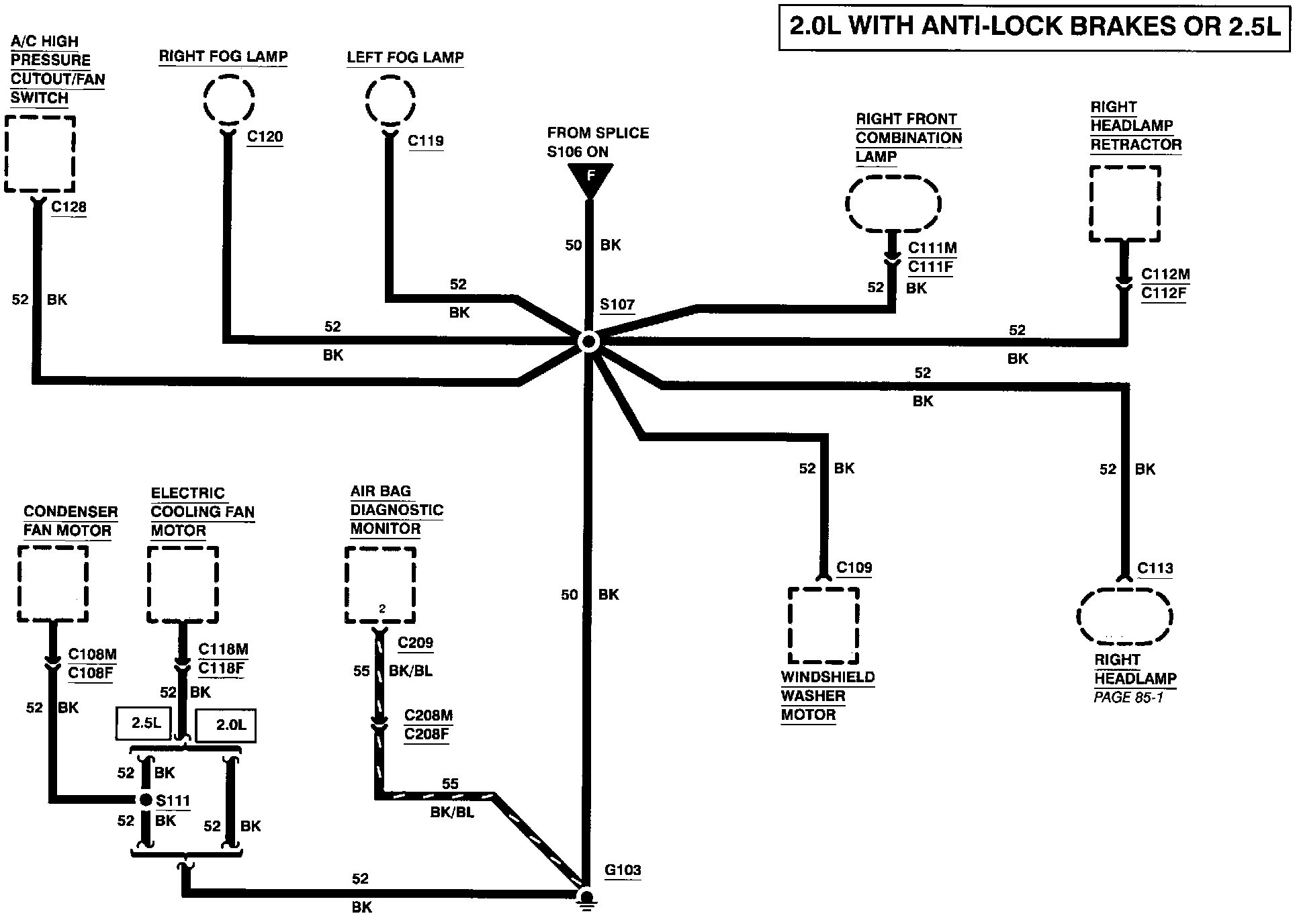

Grounds (G103):
A/C High Pressure Cutout/Fan Switch
Air Bag Diagnostic Monitor
Condenser Fan Motor
Electric Cooling Fan Motor
Left Fog Lamp
Right Fog Lamp
Right Front Combination Lamp
Right Headlamp
Right Headlamp Retractor
Windshield Washer Motor

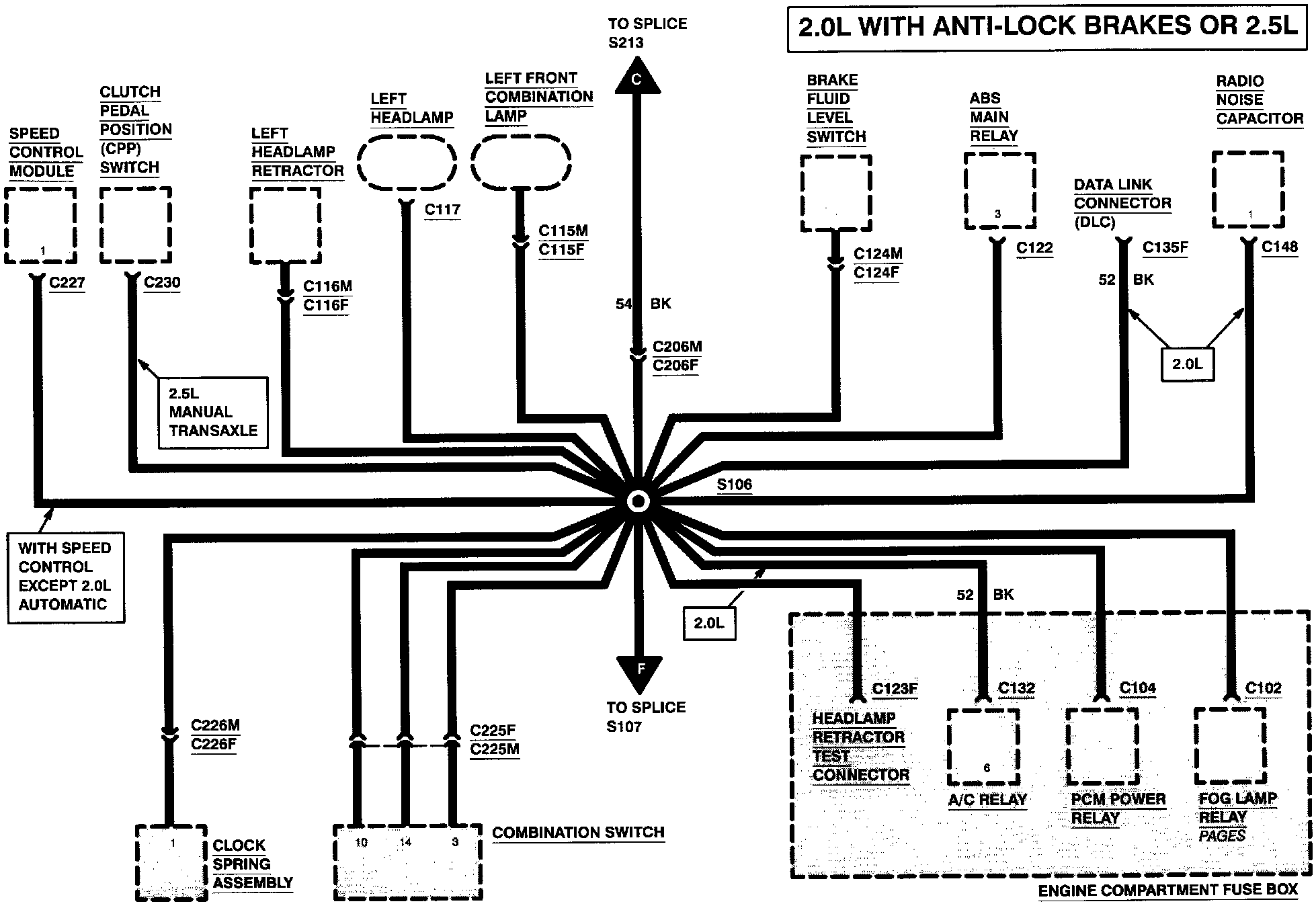

Grounds (G103):
A/C Relay
ABS Main Relay
Brake Fluid Level Switch
Clockspring Assembly
Clutch Pedal Position Switch
Combination Switch
Engine Compartment Fuse Box
Fog Lamp Relay
Left Front Combination Lamp
Left Headlamp
Left Headlamp Retractor
PCM Power Relay
Radio Noise Capacitor
Speed Control Module

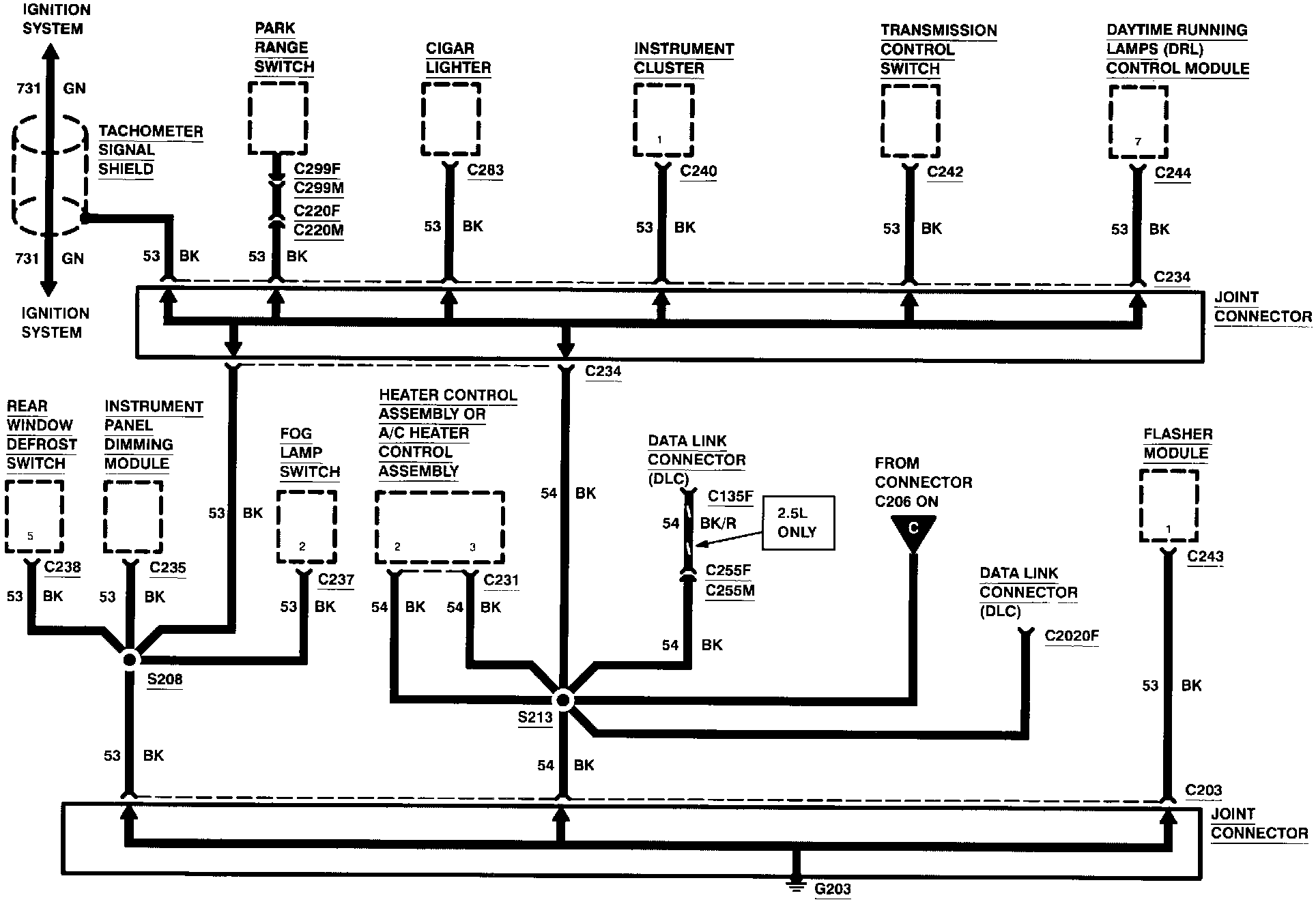

Grounds (G203):
Cigar Lighter
Daytime Running Lamps Control Module
Flasher Module
Fog Lamp Switch
Heater Control Assembly Or A/C Heater Control Assembly
Instrument Cluster
Instrument Panel Dimming Module
Joint Connector
Park Range Switch
Rear Window Defrost Switch
Transmission Control Switch
Grounds (G106, G105 & G104):
4EAT Transaxle
Distributor
Fuel Pump Module
Instrument Cluster
Joint Connector
Left Rear Heated Oxygen Sensor #21
Park/Neutral Position Switch
Powertrain Control Module
Right Rear Heated Oxygen Sensor #11
Grounds (G106):

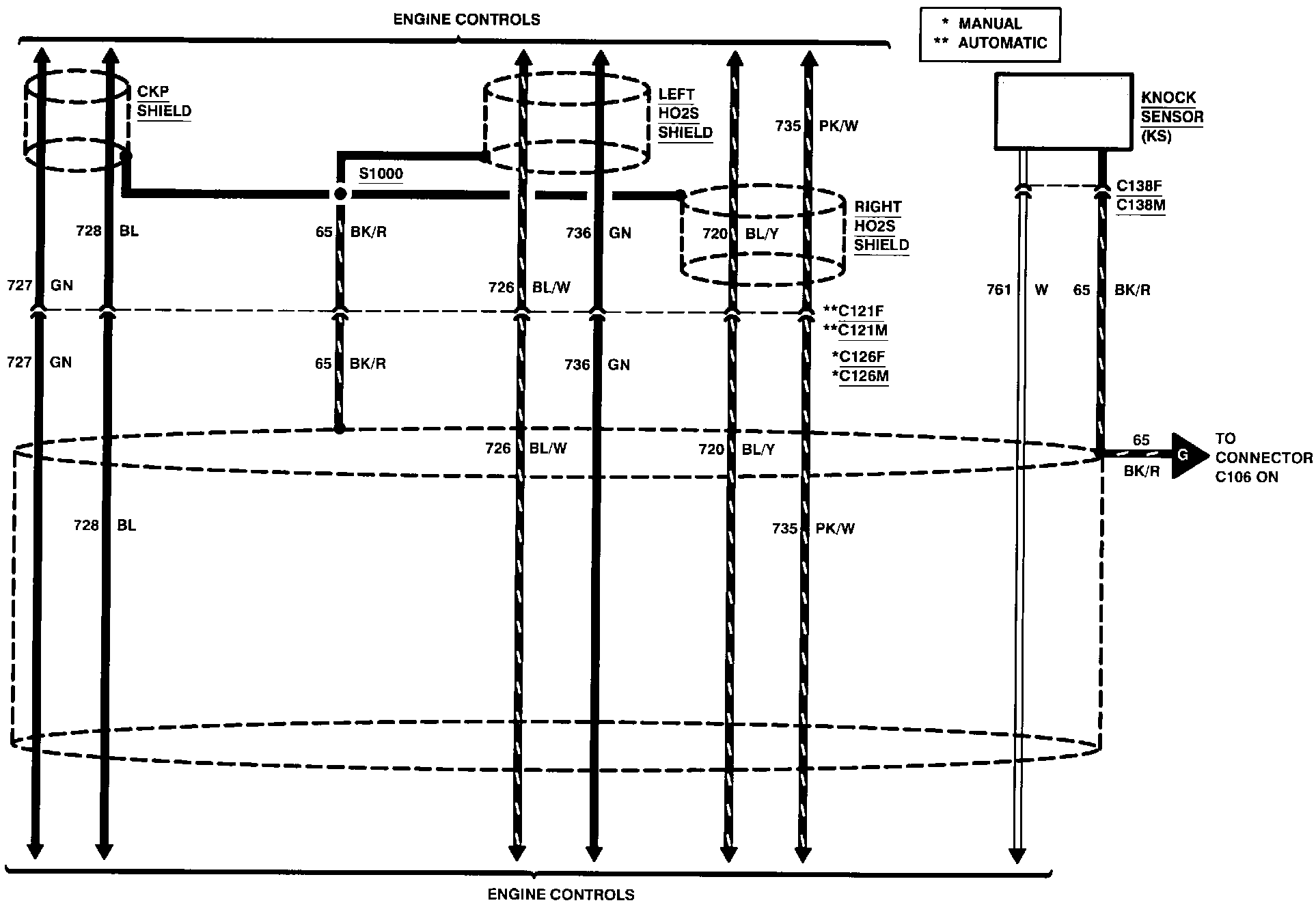

Knock Sensor
Grounds (G106):
Boost Sensor
EGR Valve Position Sensor
Engine Coolant Temperature Sensor
Left Rear Heated Oxygen Sensor #21
Powertrain Control Module
Right Rear Heated Oxygen Sensor #11
Throttle Position Sensor
Volume Air Flow Sensor

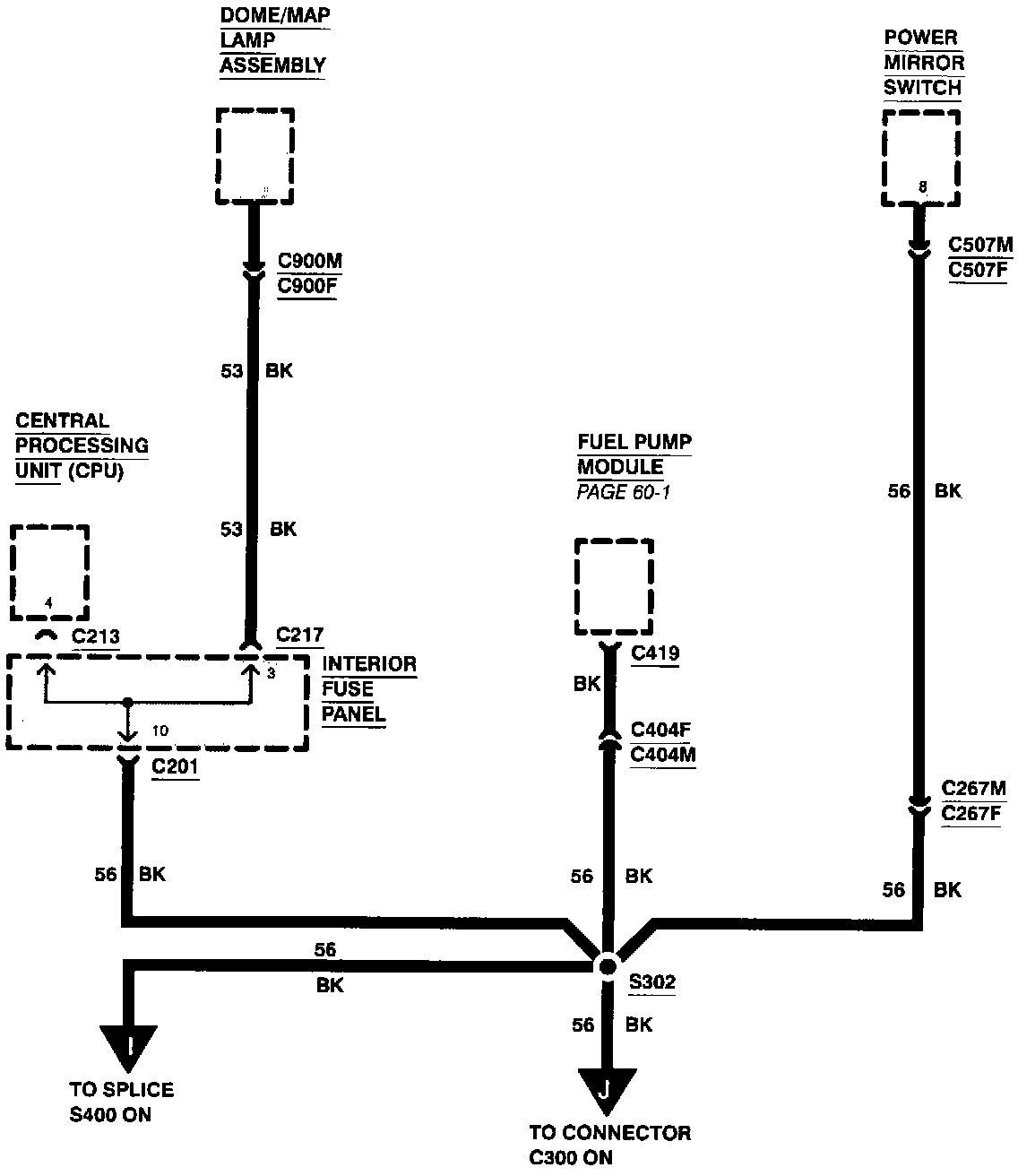

Grounds (G400 & G300):
Central Processing Unit
Dome/Map Lamp Assembly
Fuel Pump Module
Interior Fuse Panel
Power Mirror Switch

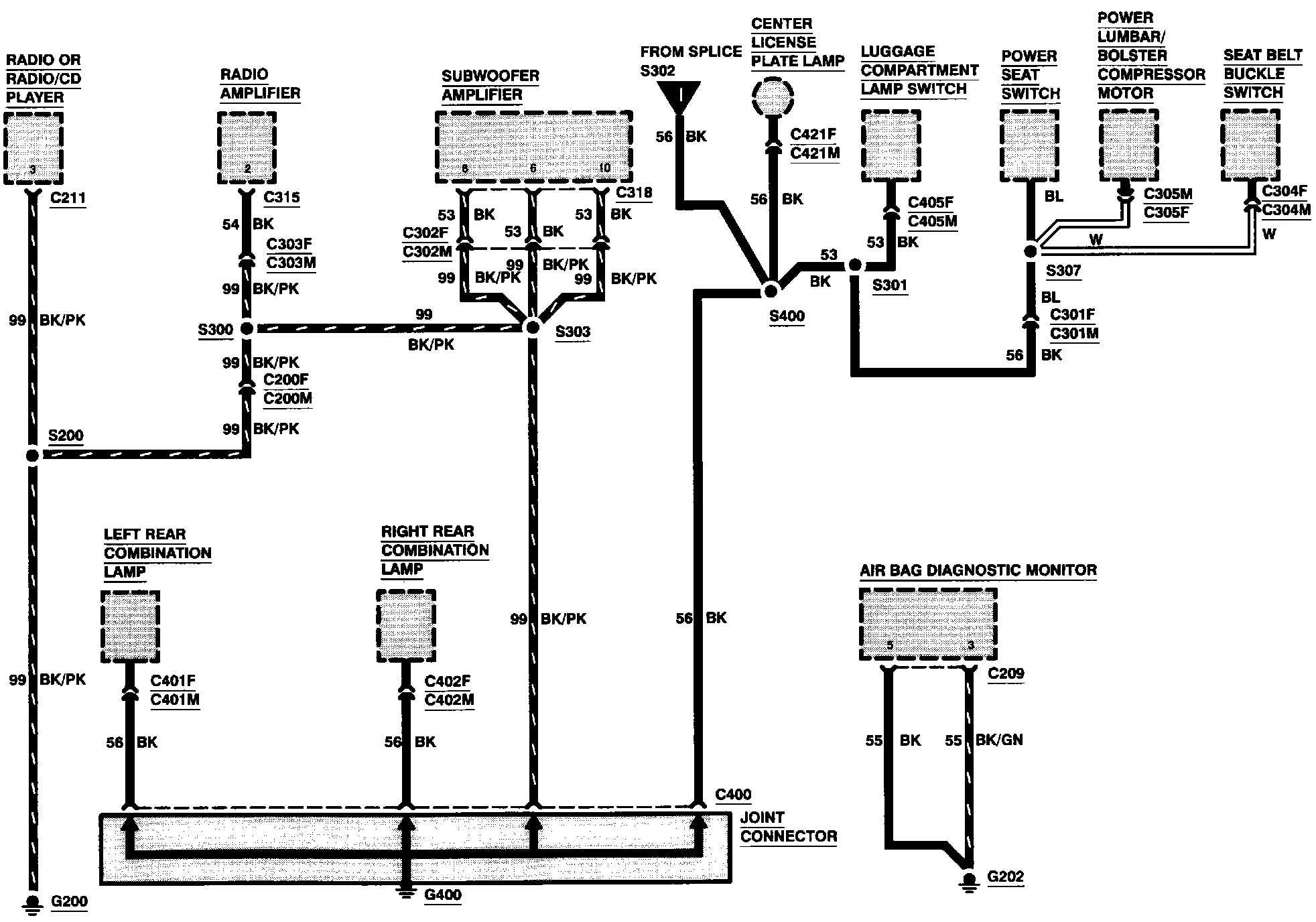

Grounds (G200, G400 & G202):
Air Bag Diagnostic Monitor
Center License Plate Lamp
Left Rear Combination Lamp
Luggage Compartment Lamp Switch
Power Lumbar/Bolster Compressor Motor
Power Seat Switch
Radio Amplifier
Radio Or Radio/CD Player
Right Rear Combination Lamp
Seat Belt Buckle Switch
Subwoofer Amplifier

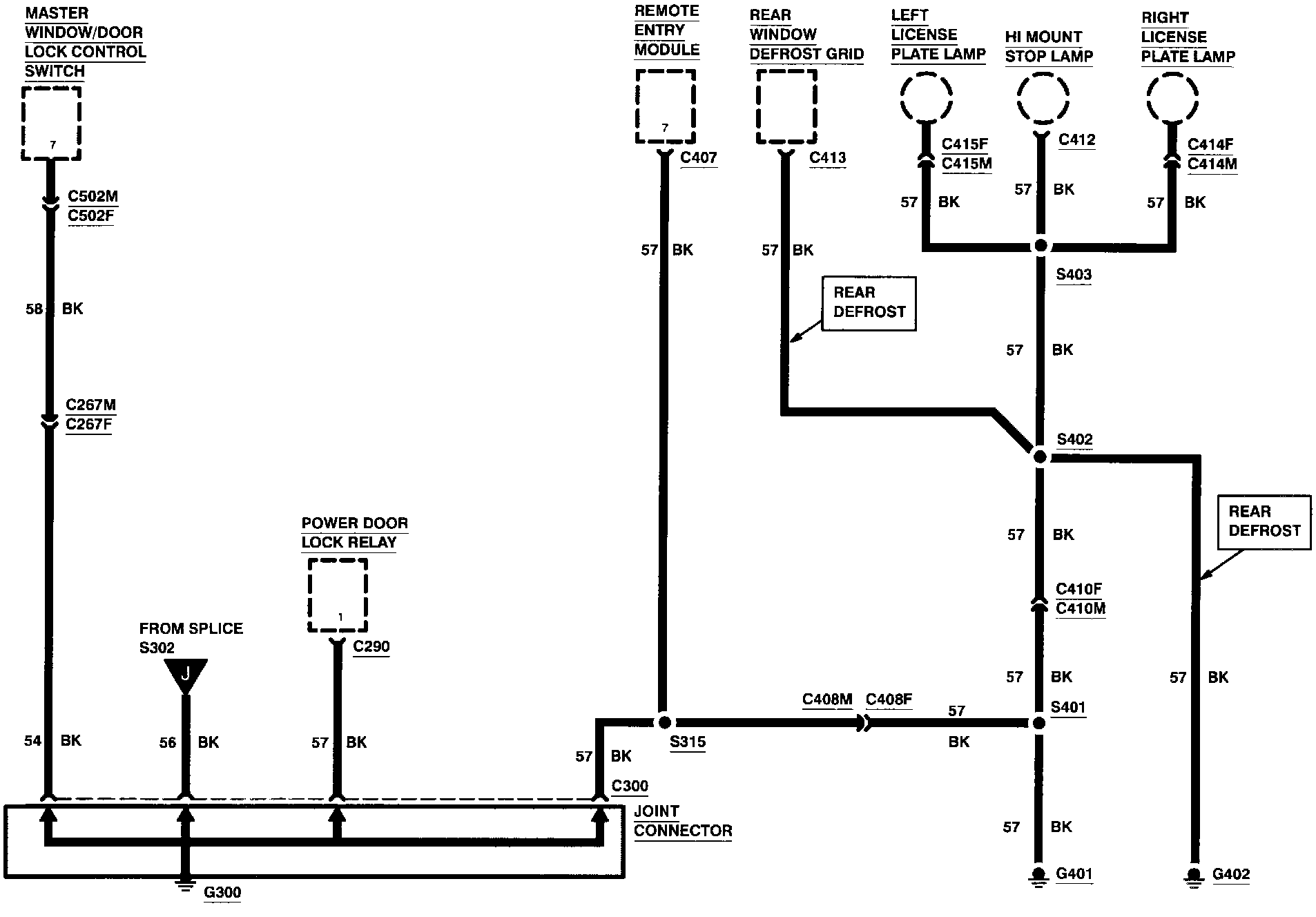

Grounds (G300, G401 & G402):
Hi Mount Stop Lamp
Joint Connector
Left Plate License Lamp
Master Window/Door Lock Control Switch
Power Door Lock Relay
Rear Window Defrost Grid
Remote Entry Module
Right License Plate Lamp
