Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1996
>>
Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

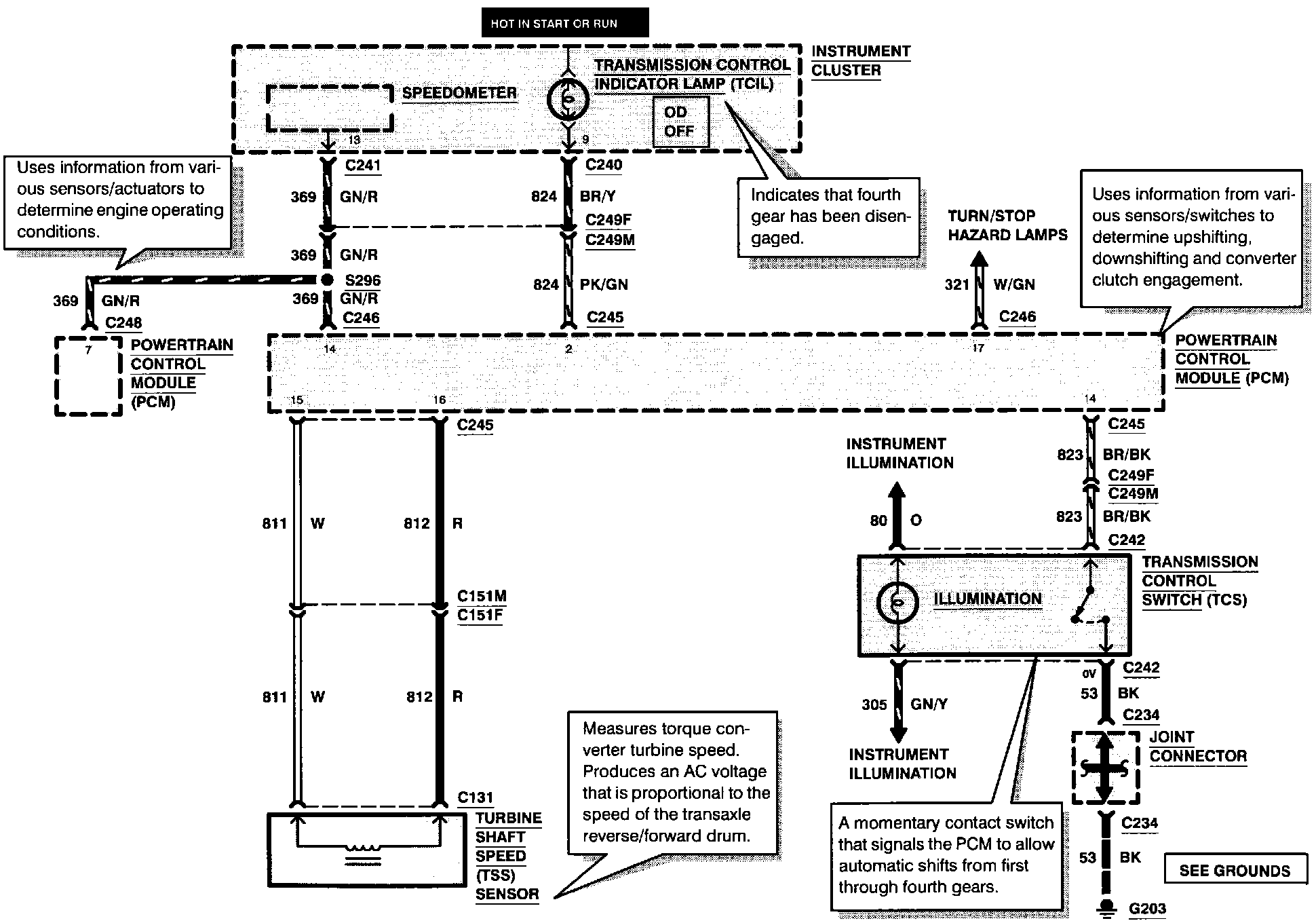

Transmission Controls (4EAT) (Part 1 Of 3):

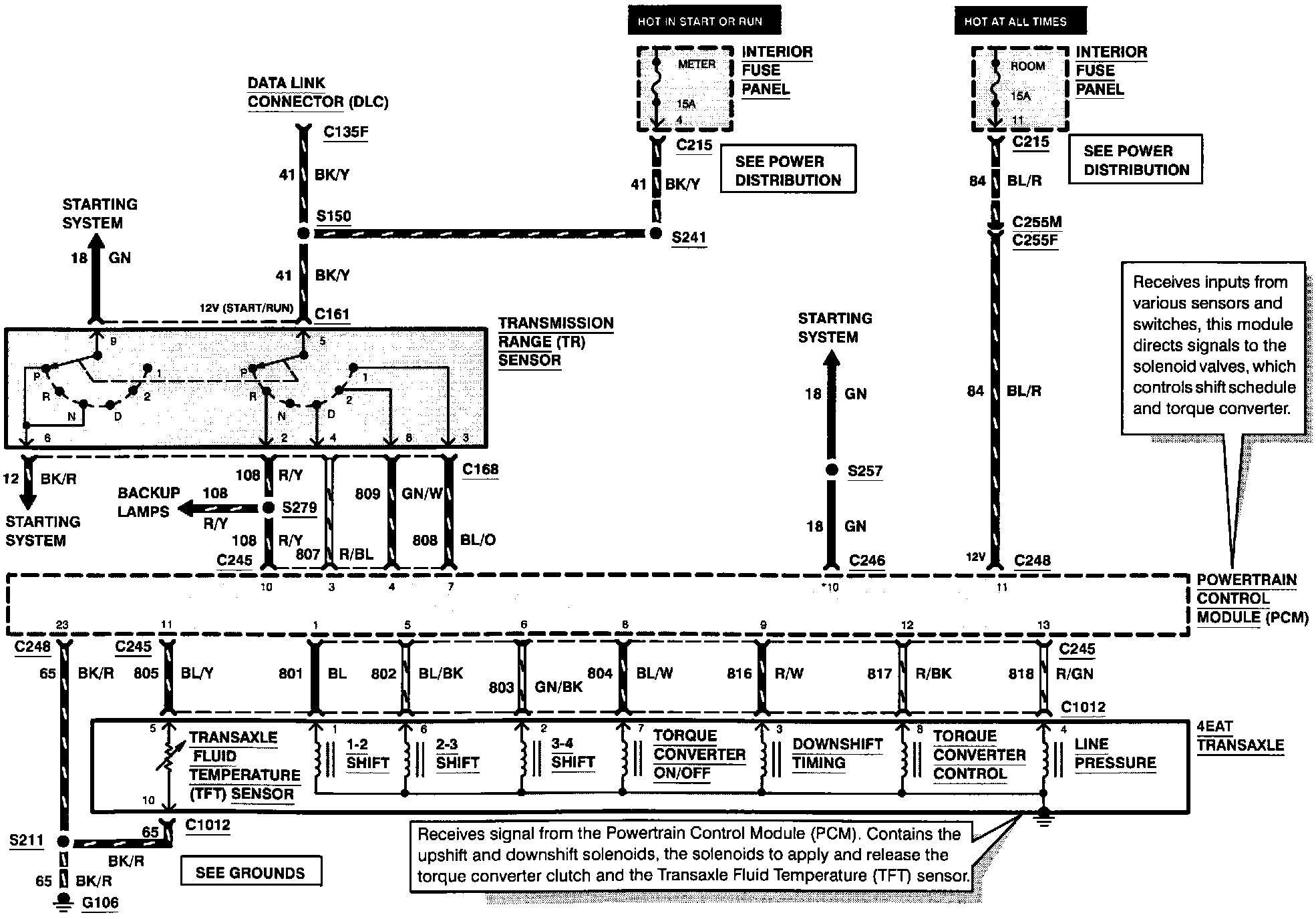

Transmission Controls (4EAT) (Part 2 Of 3):
Transmission Controls (4EAT) (Part 3 Of 3):
