Home >> Ford >> 1996 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations

Transmission Control Systems: Locations

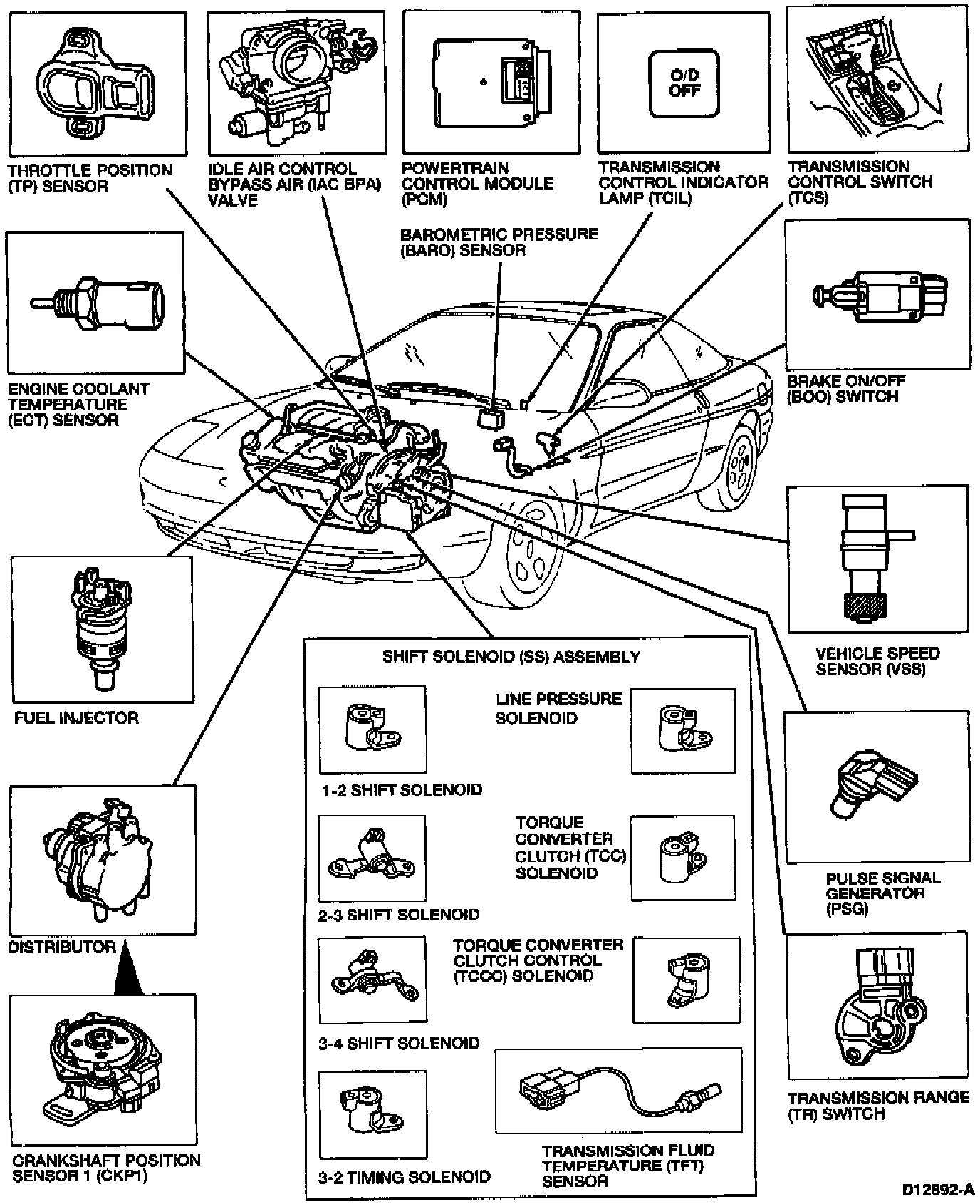

4EAT Transaxle Electronic Component Locations:
