Parts Replacement Procedures

The various major assemblies in the air bag system have been designed to be tamper-resistant and are not to be disassembled for service. Component assemblies may be removed and replaced as required.

Original parts should be re-installed in the vehicle if replacement parts have no effect on the repair.









Air Bag Module

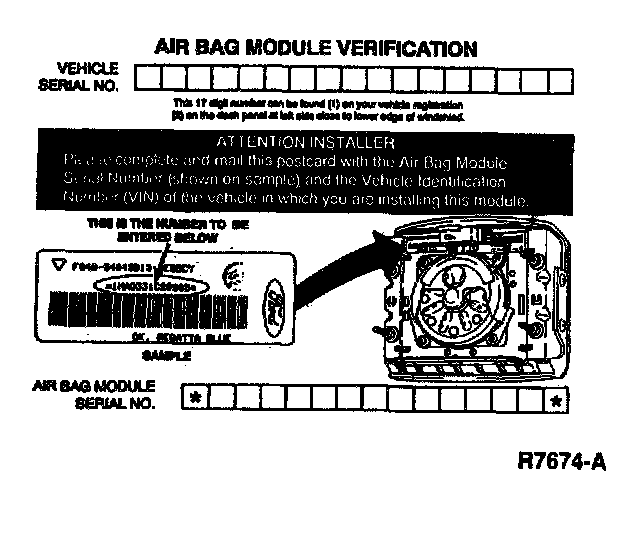

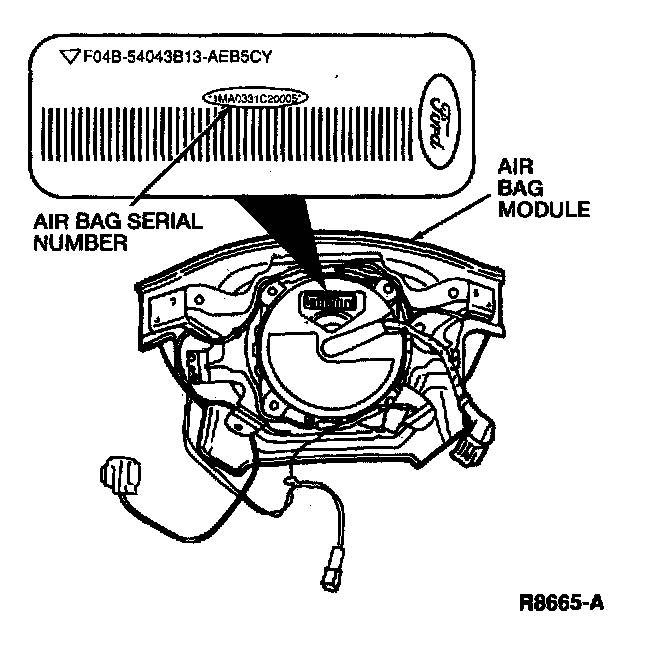

When replacing an air bag, a prepaid return postcard is provided with the replacement air bag module. The serial number for the new part and Vehicle Identification Number (VIN) must be recorded and sent to Ford Motor Company.
