Door - Replacement Service Procedure

Article No.
97-11-1

05/27/97

DOORS - SERVICE PROCEDURE MODIFICATION FOR
DOOR REPLACEMENT

FORD:
1993-97 PROBE

ISSUE:
The 1993-96 Probe door part numbers have been replaced by the 1997 level door part number. In order to install a 1997 door on a previous model year vehicle, a revised mounting procedure for the power window regulator must be used.

ACTION:
Perform the following Service Procedure when replacing the door on 1993-96 vehicles with a 1997 level door. This procedure will correctly mount the 1993-96 power window regulator to the 1997 level door.

SERVICE PROCEDURE

1. Refer to the appropriate year Probe Service Manual, Section 01-11, for removal of door, door trim panel, and door window glass.

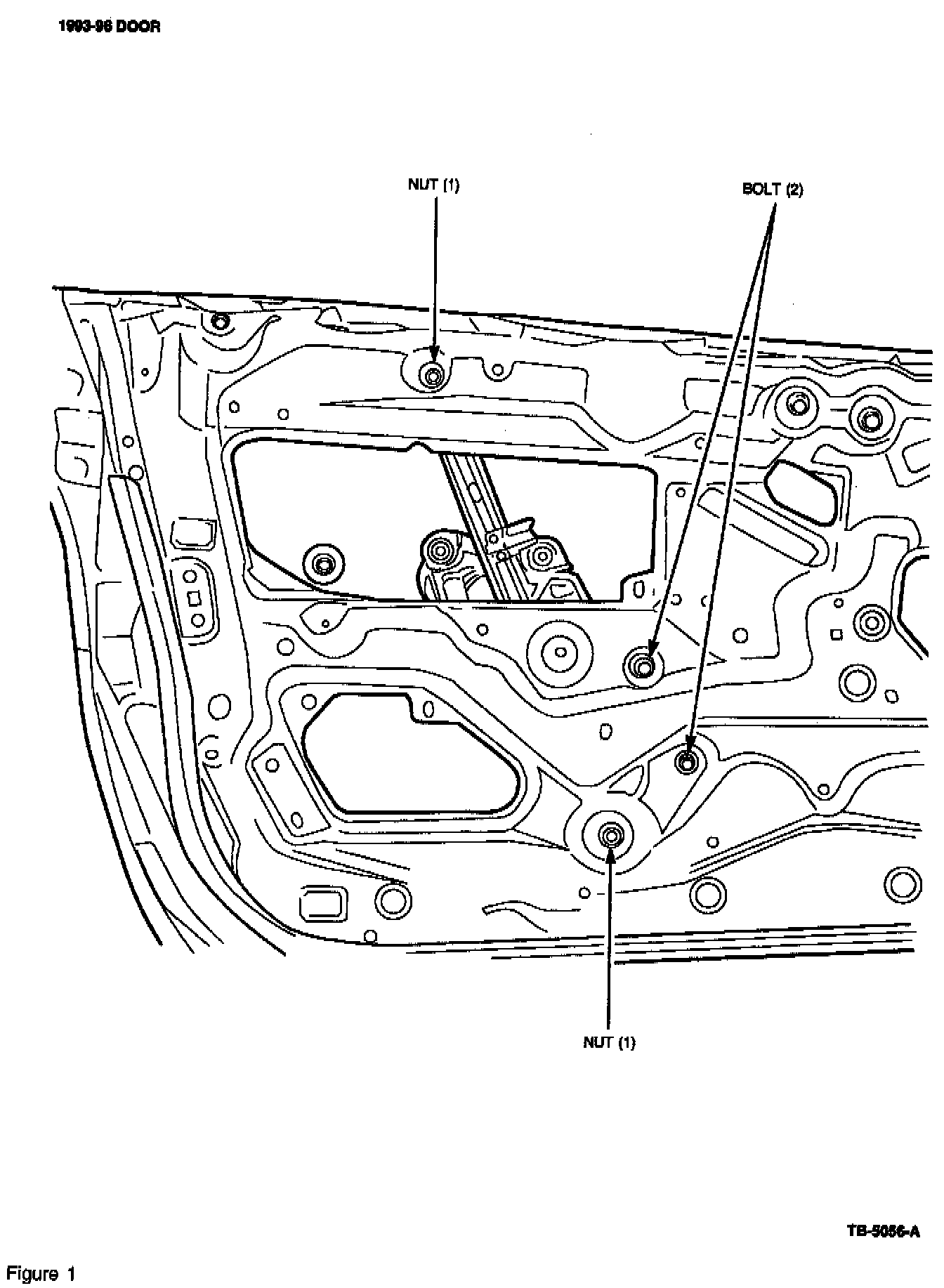

2. Remove the two (2) power window regulator bolts and two (2) power window regulator nuts (Figure 1).

3. Disconnect the power window regulator electrical connector and remove the regulator through the service hole.

4. Install the power window regulator into the new 1997 level door through the service hole.

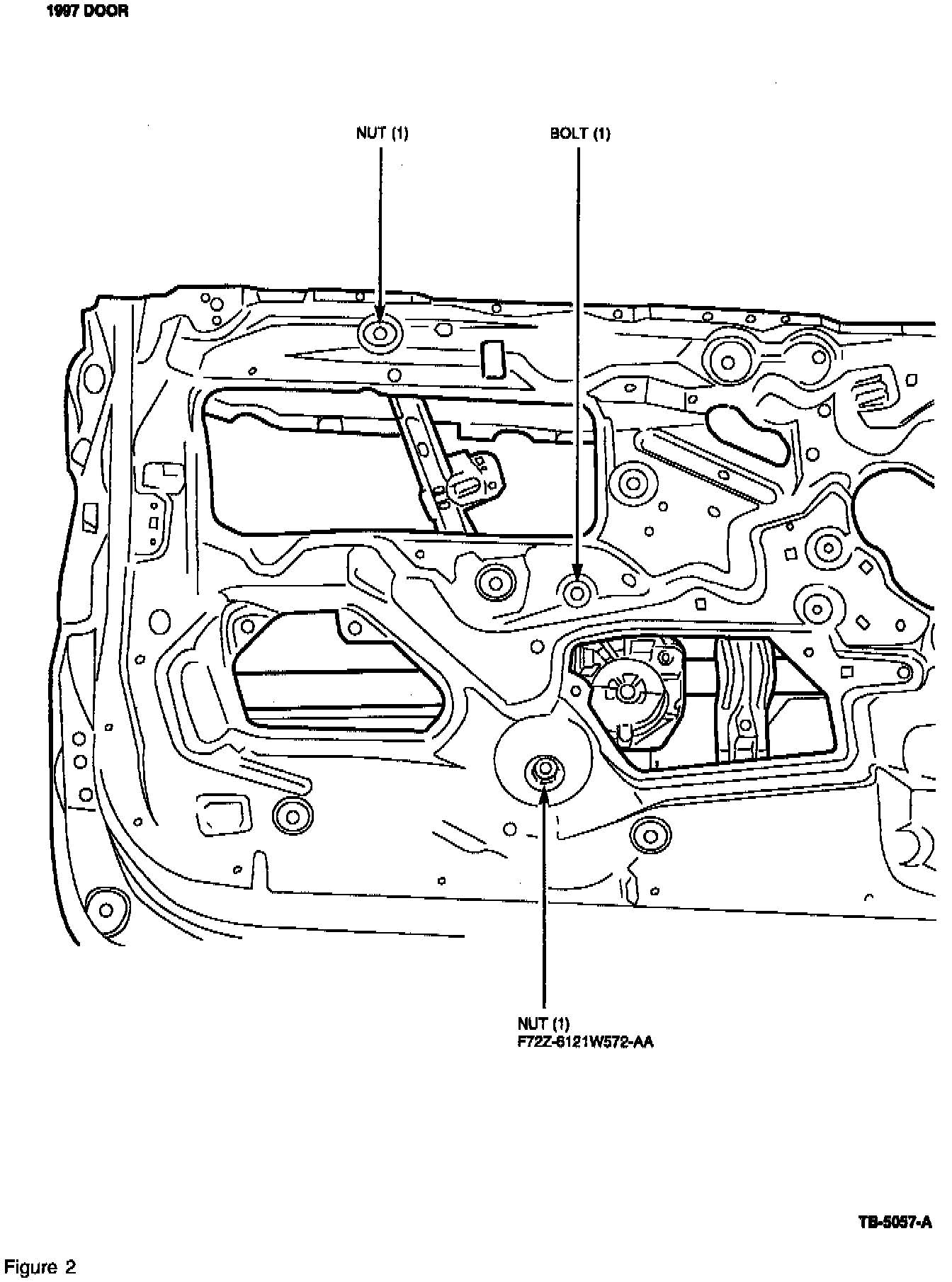

5. Mount the power window regulator to the door by installing the power window regulator upper nut (1) and power window regulator upper bolt (1) (Figure 2).

6. Tighten the power window regulator bolt (1) to 7-10 N-m (60-87 lb-in). Tighten the power window regulator nut to 22-24 N.m (16-18 lb-ft).

7. Discard the remaining nut (1) and bolt (1).

8. Install the new Nut/Washer (F72Z-6121W572-AA) to the lower attachment (Figure 2).

9. Tighten the new nut/washer to 22-24 N-m (16-18 lb-ft).

10. Refer to appropriate year Probe Service Manual, Section 01-11, for installation of door, door trim panel, and door window glass.

PART NUMBER PART NAME

F72Z-6121W572-AA Nut/Washer

OTHER APPLICABLE ARTICLES: NONE

WARRANTY STATUS: INFORMATION ONLY

OASIS CODES: 102000, 111000
