Door Glass - Pop or Snap Noise When Cycled

Article No.
96-17-1

08/12/96

^ DOOR GLASS - "POP" OR "SNAP" NOISE HEARD WHILE DOOR GLASS IS CYCLED - VEHICLES BUILT THROUGH 6/5/96

^ NOISE - "POP" OR "SNAP" HEARD WHILE DOOR GLASS IS CYCLED - VEHICLES BUILT THROUGH 6/5/96

FORD:
1995-96 PROBE

ISSUE:
A "pop" or "snap" noise may be heard from the door glass while it is cycled up and down on some vehicles. This may be caused by a loose regulator carriage bracket-to-glass slider bracket mounting bolt.

ACTION:
Install a nut to the backside of the door glass slider bracket mounting bolt. Refer to the following Service Procedure for details.

SERVICE PROCEDURE

1. Disconnect the battery ground cable.

2. Remove the front door trim panel. Refer to the appropriate Probe Service Manual, Section 01-05 for removal procedure.

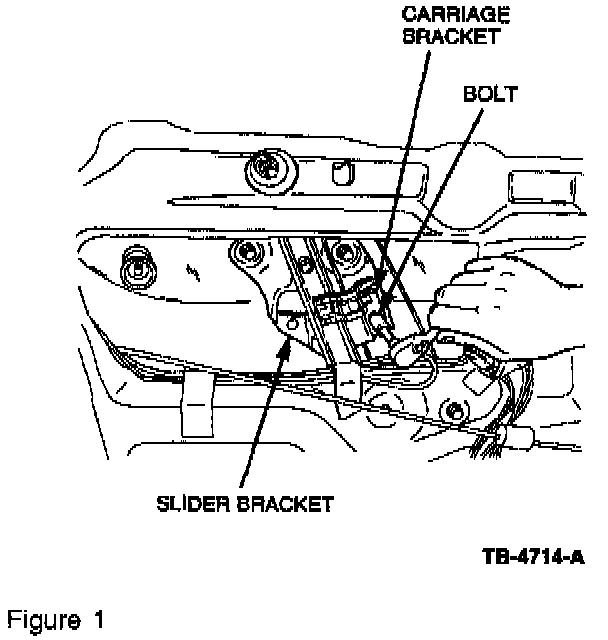

3. Raise door glass until slider bracket is accessible through opening in door (Figure 1).

4. Install a 6 mm x 1.0 mm Nut (obtain locally) to the backside of the regulator carriage bracket-to-glass slider bracket bolt (Figure 1). Torque nut to 8-10 Nm (71-89 b-in).

5. Reinstall front door trim panel.

6. Reconnect battery ground cable.

7. Cycle door glass to verify repair.

PART NUMBER PART NAME

(Obtain Locally) 6 mm x 1.0 mm Nut

OTHER APPLICABLE ARTICLES: NONE

WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage

OPERATION DESCRIPTION TIME

961701AT Install Nut - Both Doors 0.7 Hr.

961701A Install Nut - One Door 0.4 Hr.

DEALER CODING
CONDITION
BASIC PART NO. CODE
6623209 57

OASIS CODES: 102000, 702000, 702100, 702300
