Front Door Glass Adjustment Procedure

PROCEDURE

1. Check the door and striker for correct adjustment. Repair as necessary. Refer to the appropriate Probe Service Manual, Sections 01-03 and 01-14A, for service details.





NOTE:

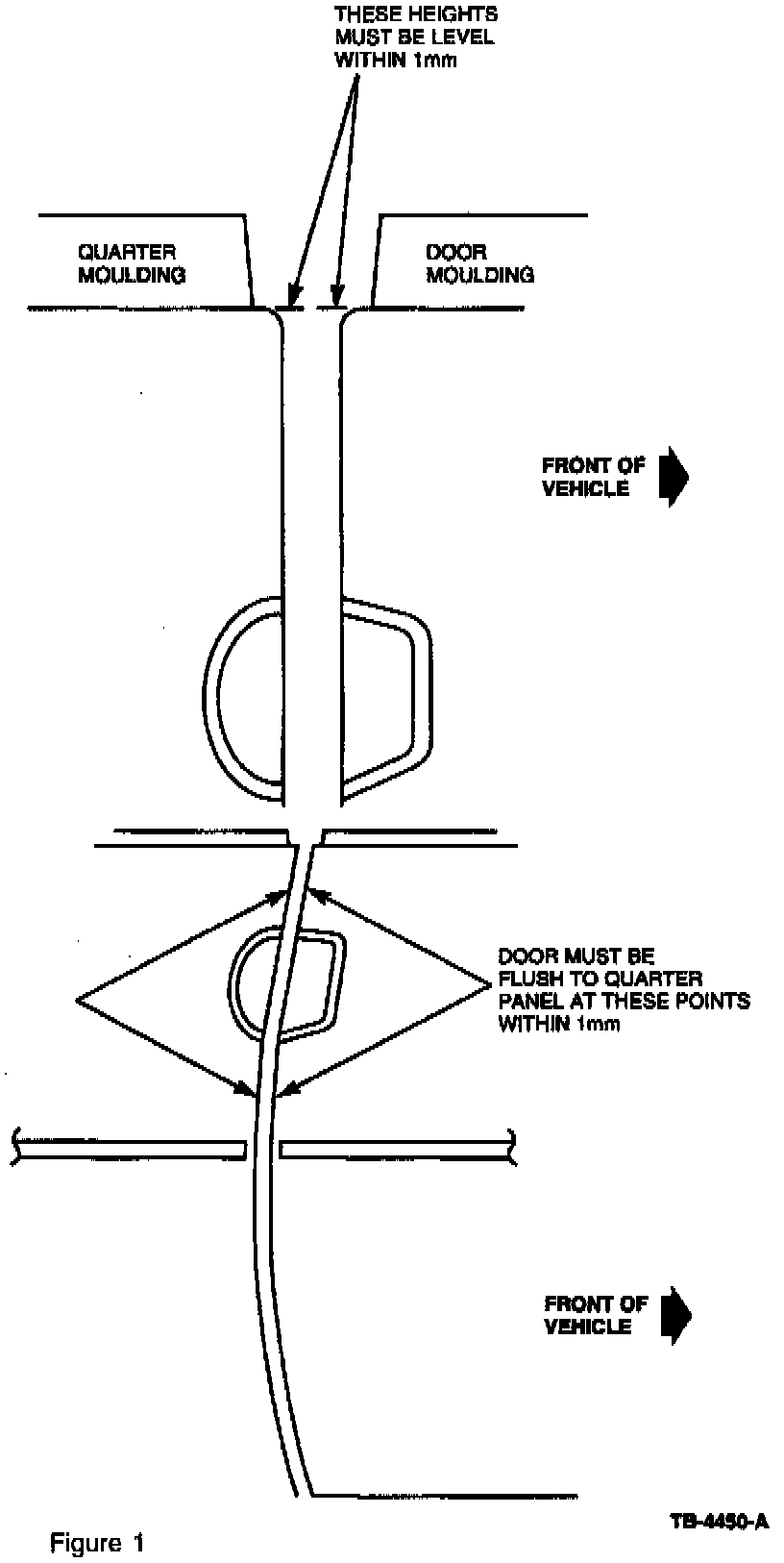

DOOR HEIGHT MUST BE LEVEL WITH QUARTER PANEL AT TOP OF THE DOOR WITHIN 1 mm. DOOR MUST ALSO BE FLUSH WITH QUARTER PANEL WITHIN 1 mm AT POINTS ABOVE DOOR HANDLE AND AT THE MIDDLE OF THE DOOR (FIGURE 1).
