Home >> Ford >> 1996 >> Taurus V6-182 3.0L FF >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests Electronic Climate Control >> A: EATC Inside Temperature Sensor Open/Shorted >> A1

A1

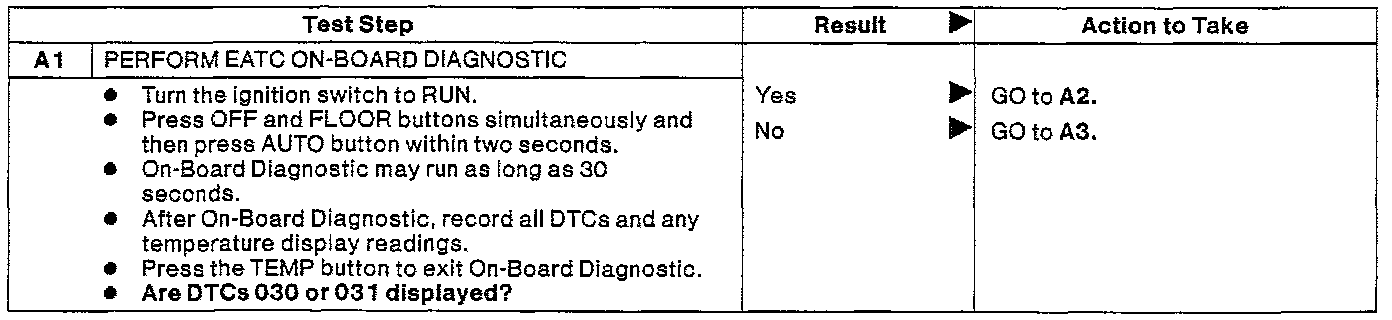

EATC Inside Temperature Sensor Open/Shorted (Test Step A1):
