Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1996
>>
Taurus V6-182 3.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Conventional (Connector)
>>

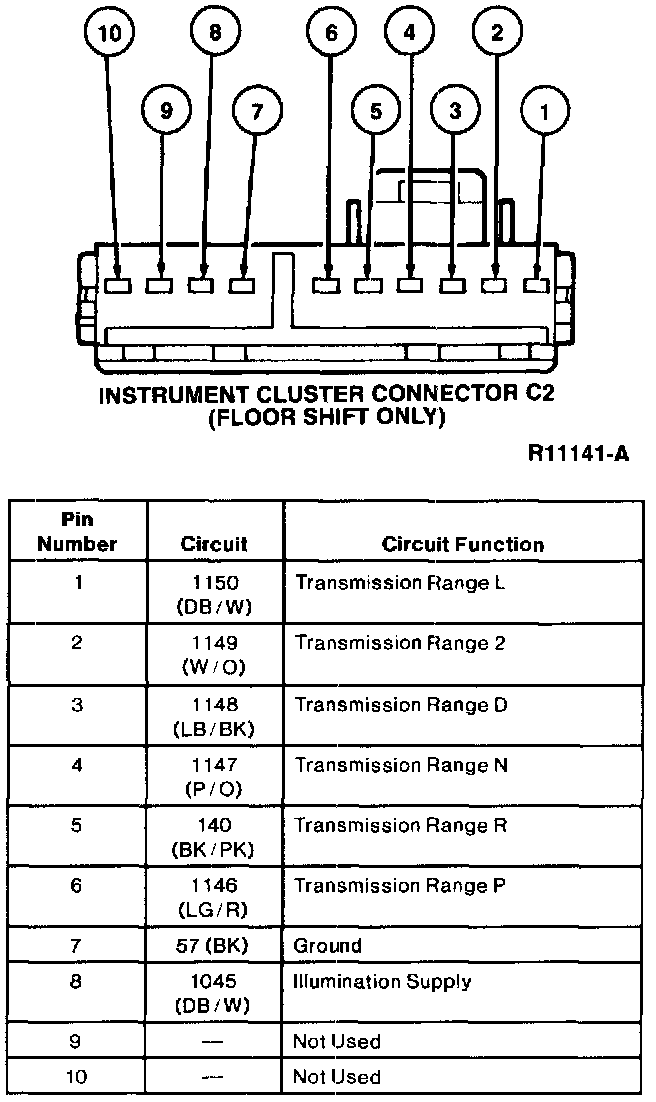

Instrument Cluster Connector C2 (With Floor Shift)
Instrument Cluster Connector C2 (With Floor Shift)
