Emission Control Systems
>>

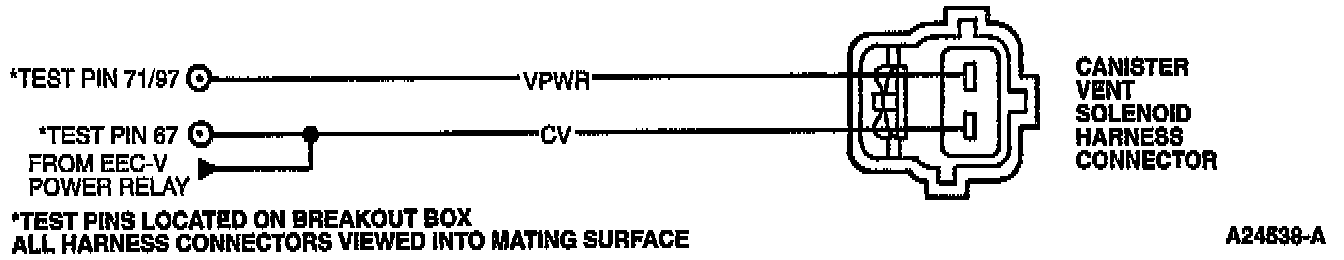

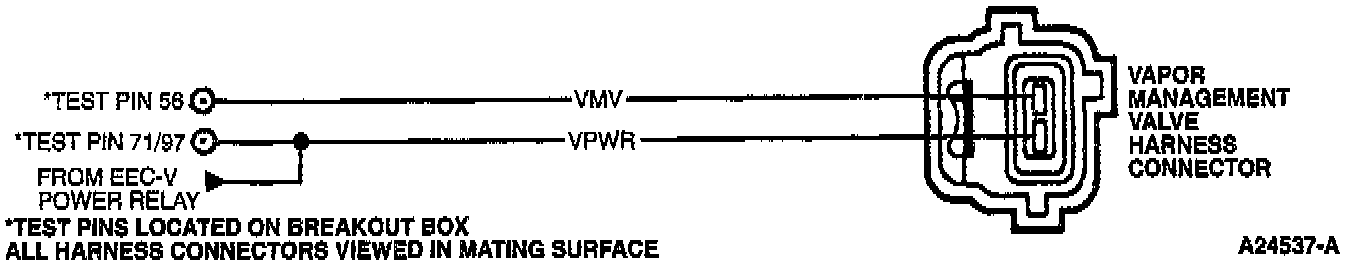

Evaporative Emissions System
Evaporative Emissions System
Taurus/Sable:
All Vehicles:
All Vehicles:
