Air Injection

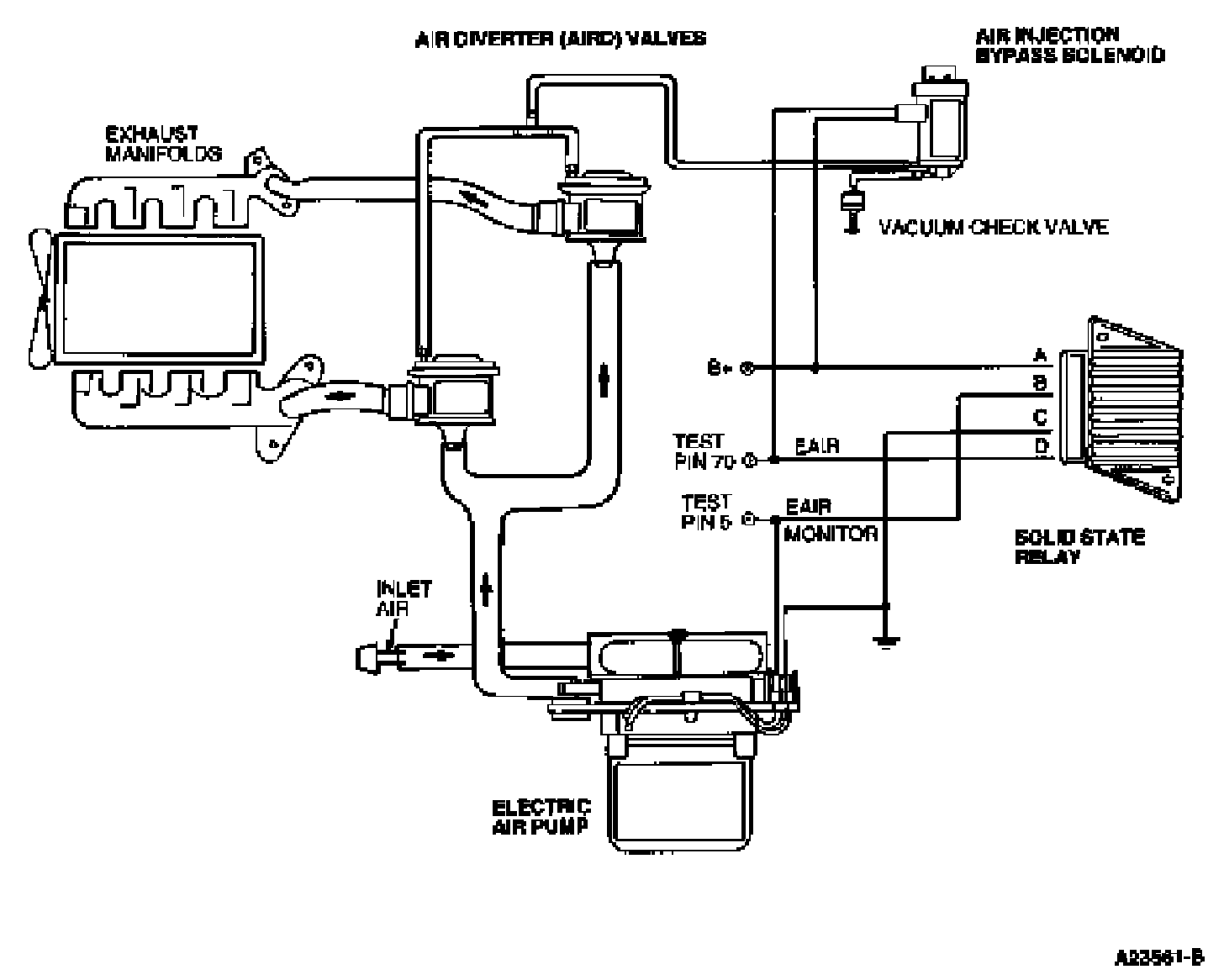

Dual AIRD Valve Secondary Air Injection (AIR) System:

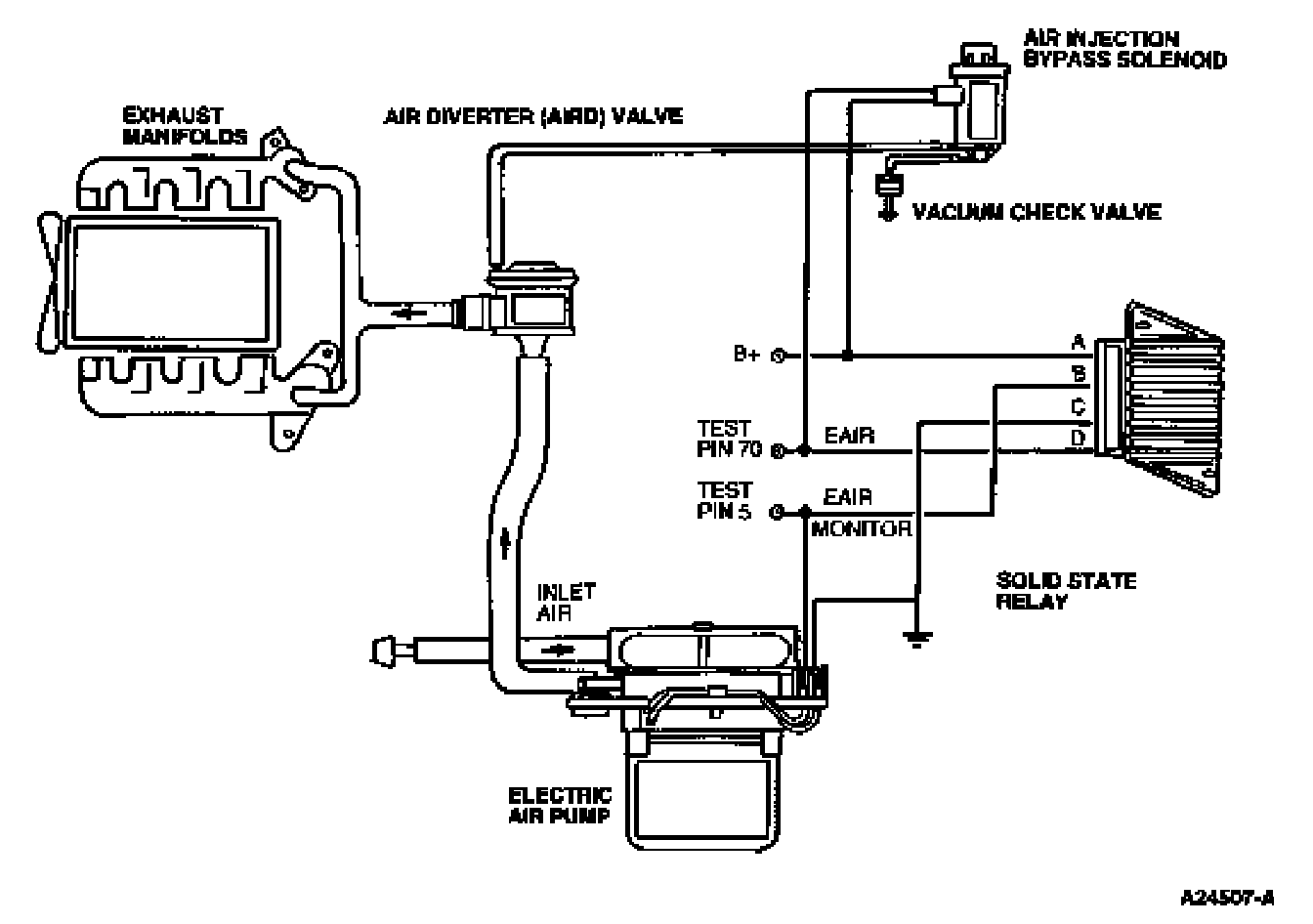

Single AIRD Valve Secondary Air Injection (AIR) System:
