Engine Views

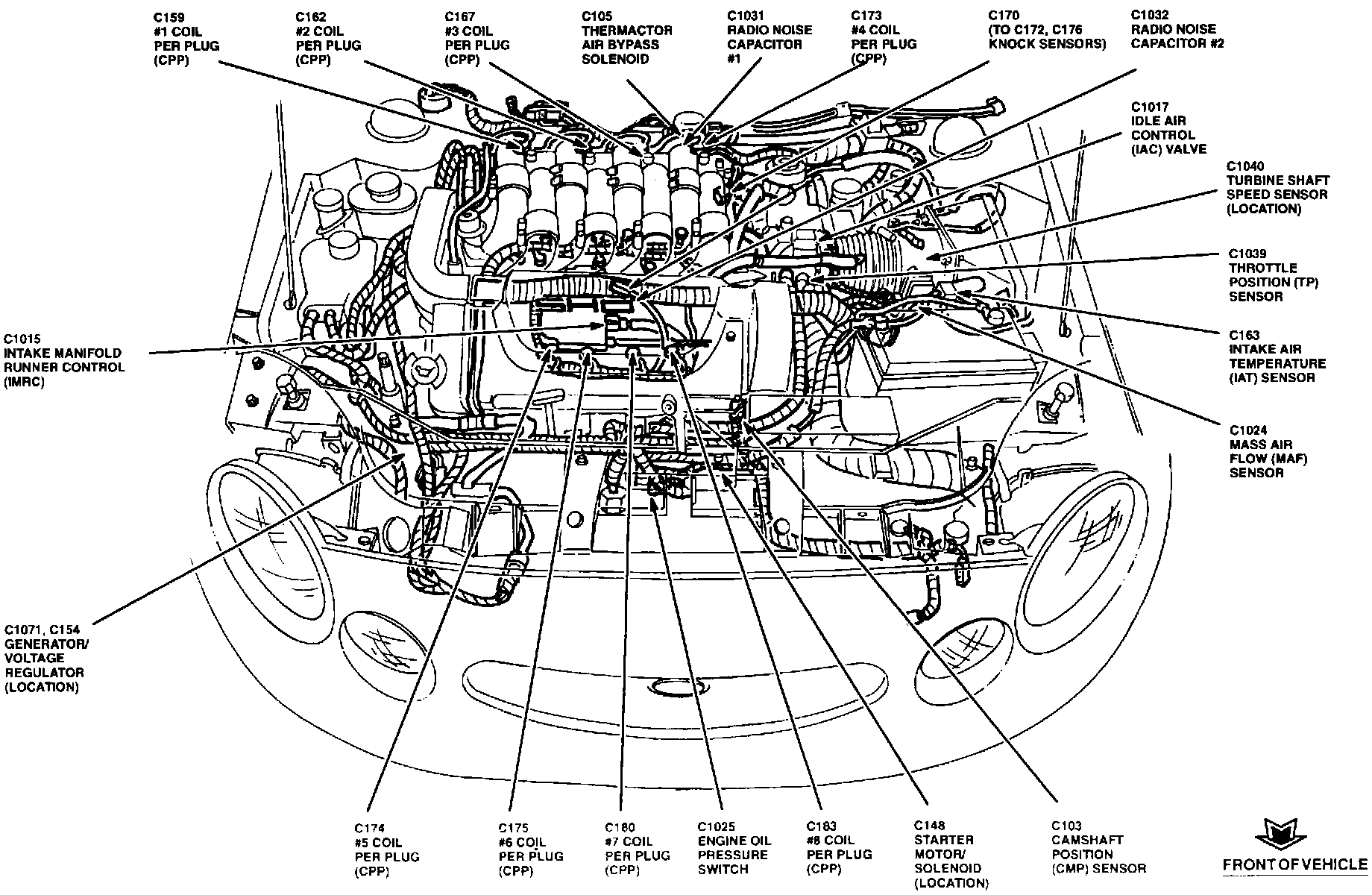

Engine View:

#1 COIL PER PLUG
#2 COIL PER PLUG
#3 COIL PER PLUG
#4 COIL PER PLUG
#5 COIL PER PLUG
#6 COIL PER PLUG
#7 COIL PER PLUG
#8 COIL PER PLUG
CAMSHAFT POSITION SENSOR
ENGINE OIL PRESSURE SWITCH
GENERATOR/VOLTAGE REGULATOR
IDLE AIR CONTROL VALVE
INTAKE AIR TEMPERATURE SENSOR
INTAKE MANIFOLD RUNNER CONTROL
KNOCK SENSORS
MASS AIR FLOW SENSOR
RADIO NOISE CAPACITOR #1
RADIO NOISE CAPACITOR #2
STARTER MOTOR/SOLENOID
THERMACTOR AIR BYPASS SOLENOID
THROTTLE POSITION SENSOR
TURBINE SHAFT SPEED SENSOR

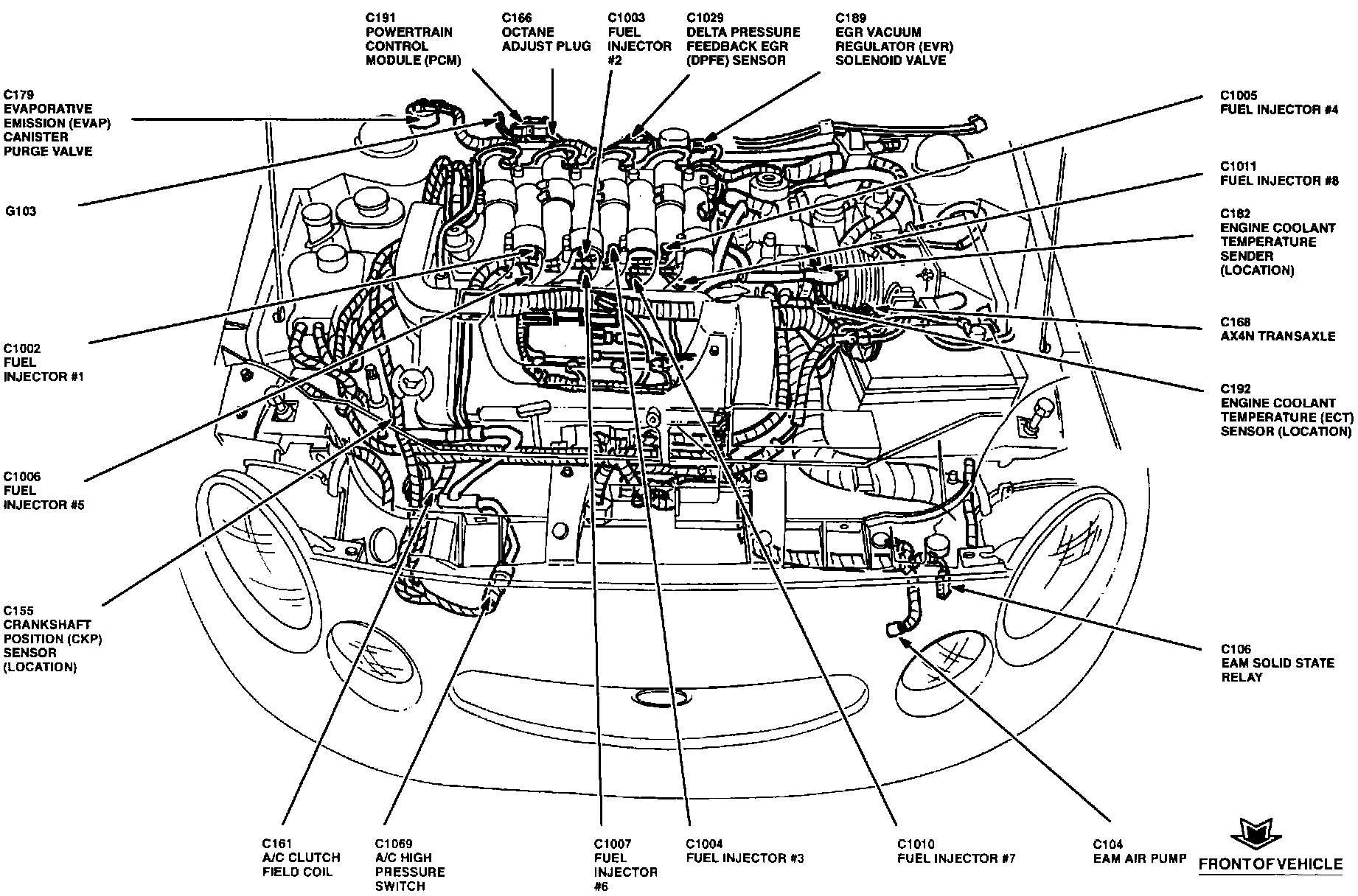

Engine View:

A/C CLUTCH FIELD COIL
A/C HIGH PRESSURE SWITCH
AX4N TRANSAXLE
CRANKSHAFT POSITION SENSOR
DELTA PRESSURE FEEDBACK EGR SENSOR
EAM AIR PUMP
EAM SOLID STATE RELAY
EGR VACUUM REGULATOR SOLENOID VALVE
ENGINE COOLANT TEMPERATURE SENDER
ENGINE COOLANT TEMPERATURE SENSOR
EVAPORATIVE EMISSION CANISTER PURGE VALVE
FUEL INJECTORS
OCTANE ADJUST PLUG
POWERTRAIN CONTROL MODULE
