Transmission Temperature Sensor/Switch, A/T
>>
Temperature Sensor, Transmission Control
Temperature Sensor, Transmission Control

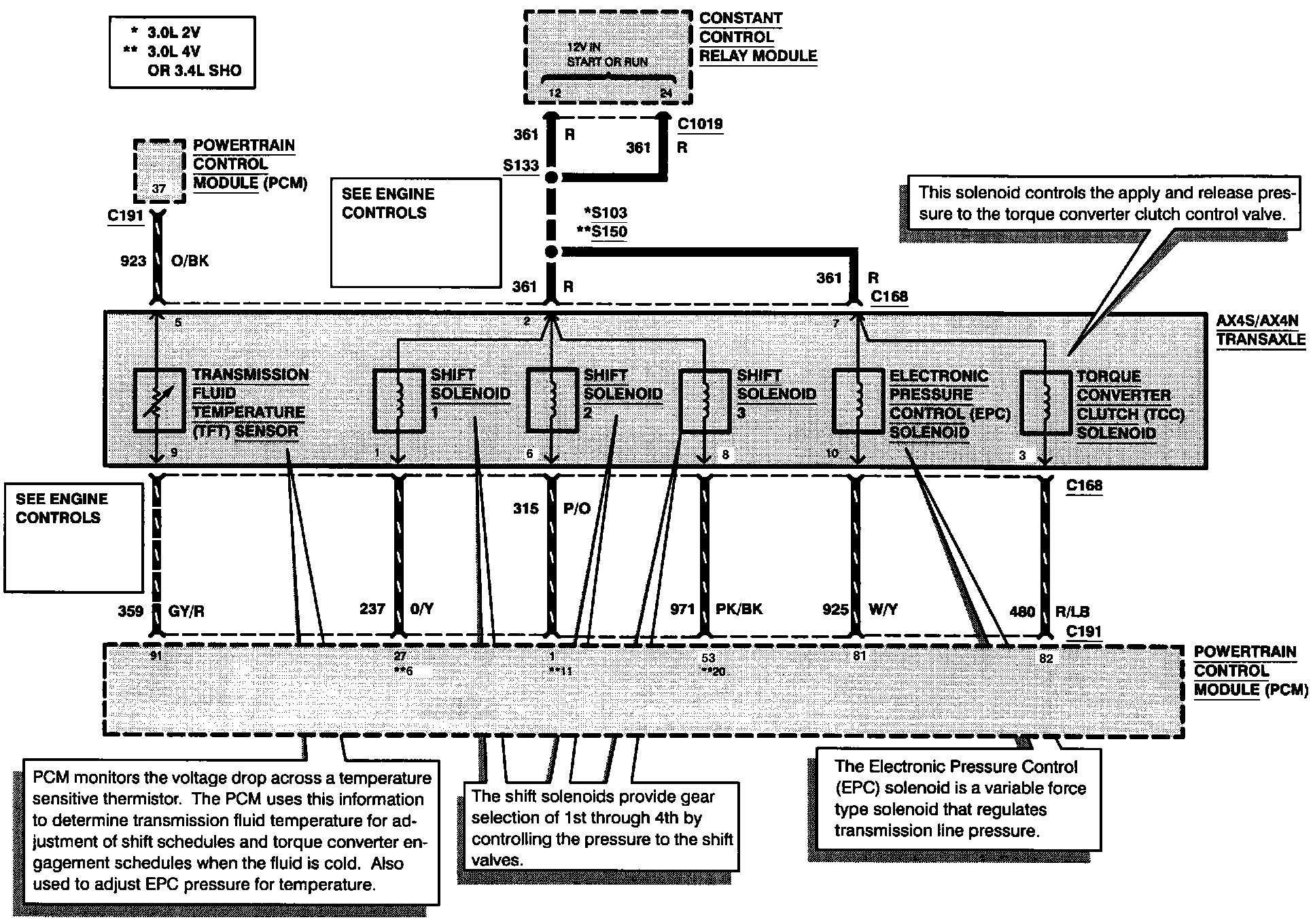

Transmission Controls (AX4S/AX4N) (Part 2 Of 4):
