Transmission Position Sensor/Switch, A/T

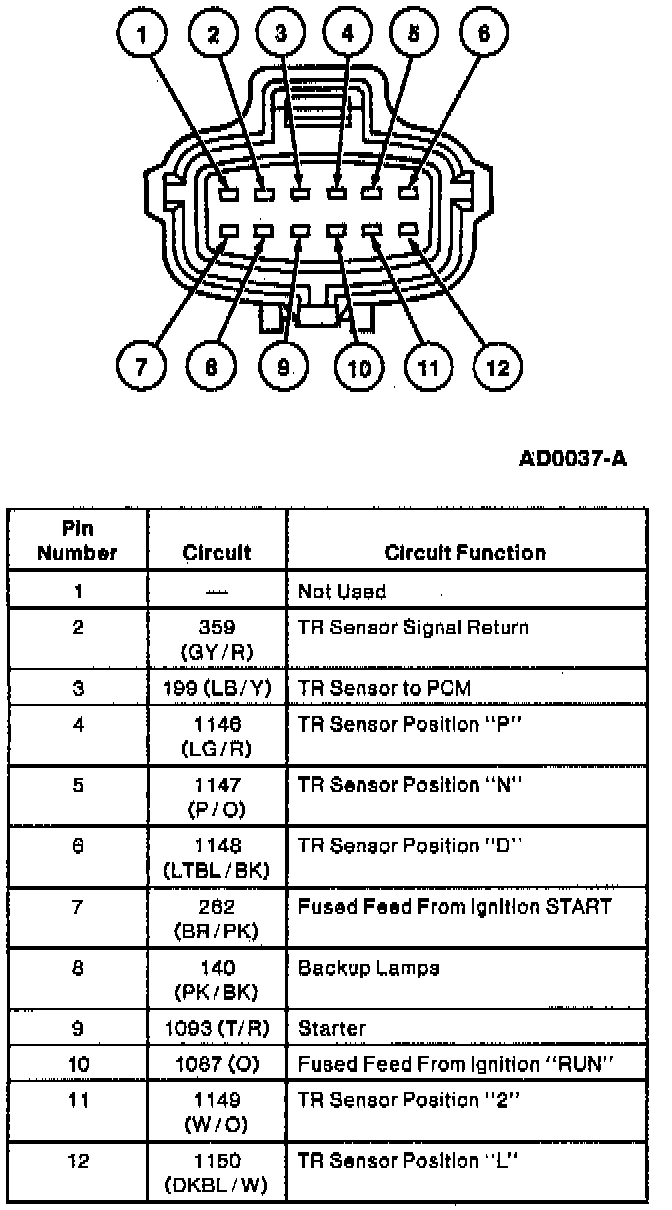

Transmission Range (TR) Sensor Vehicle Harness Connector:



Transmission Range Sensor (AX4N):
