System Diagram

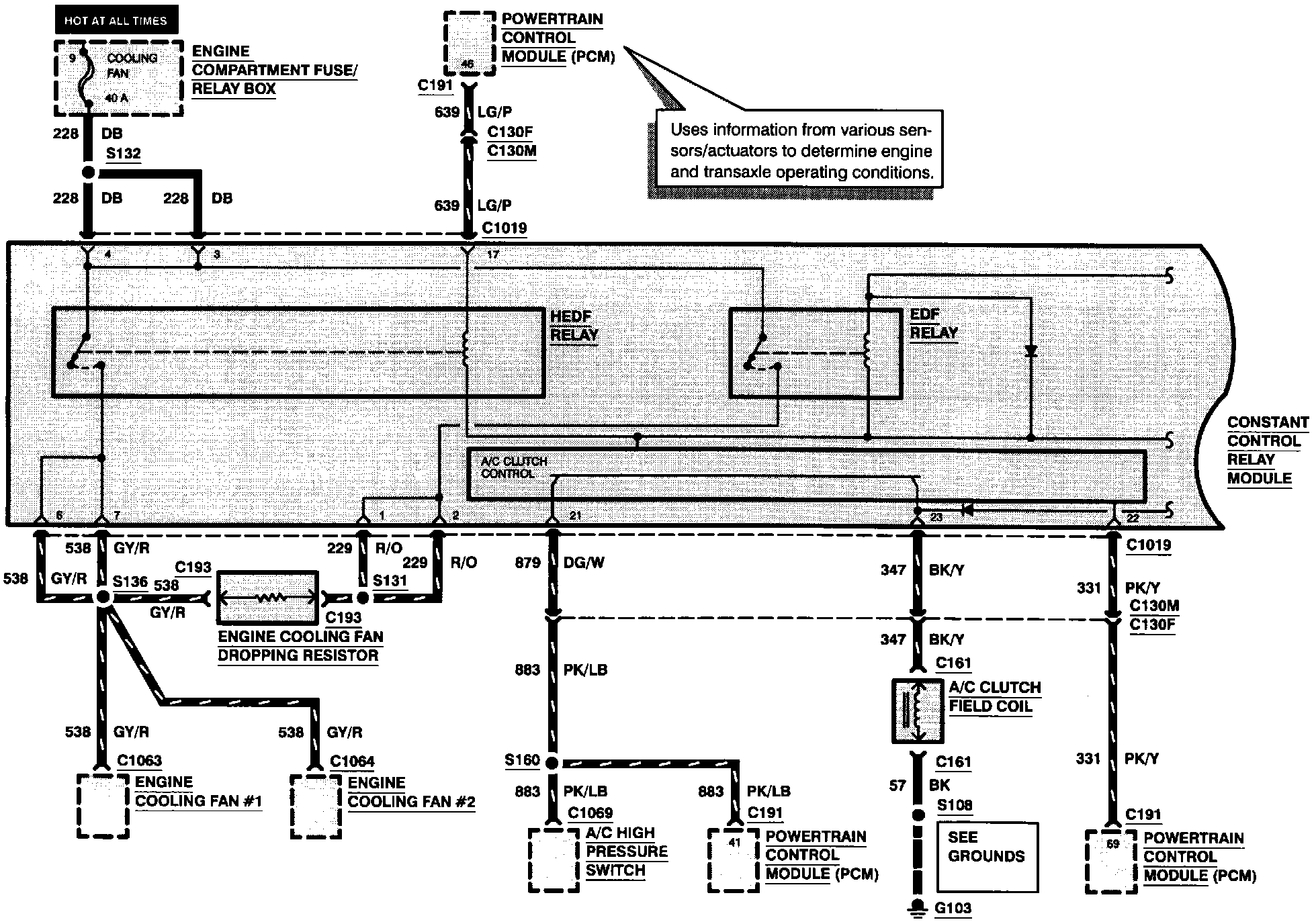

Engine Controls (Part 1 Of 13):

A/C CLUTCH CONTROL
A/C CLUTCH FIELD COIL
A/C HIGH PRESSURE SWITCH
CONSTANT CONTROL RELAY MODULE
EDF RELAY
ENGINE COOLING FAN DROPPING RESISTOR
ENGINE COOLING FANS #1 AND #2
HEDF RELAY

Engine Controls (Part 2 Of 13):

CONSTANT CONTROL RELAY MODULE
EDF RELAY CONTROL
EEEC RELAY
ENGINE COMPARTMENT FUSE/RELAY BOX
FUEL PUMP RELAY
I/P FUSE PANEL

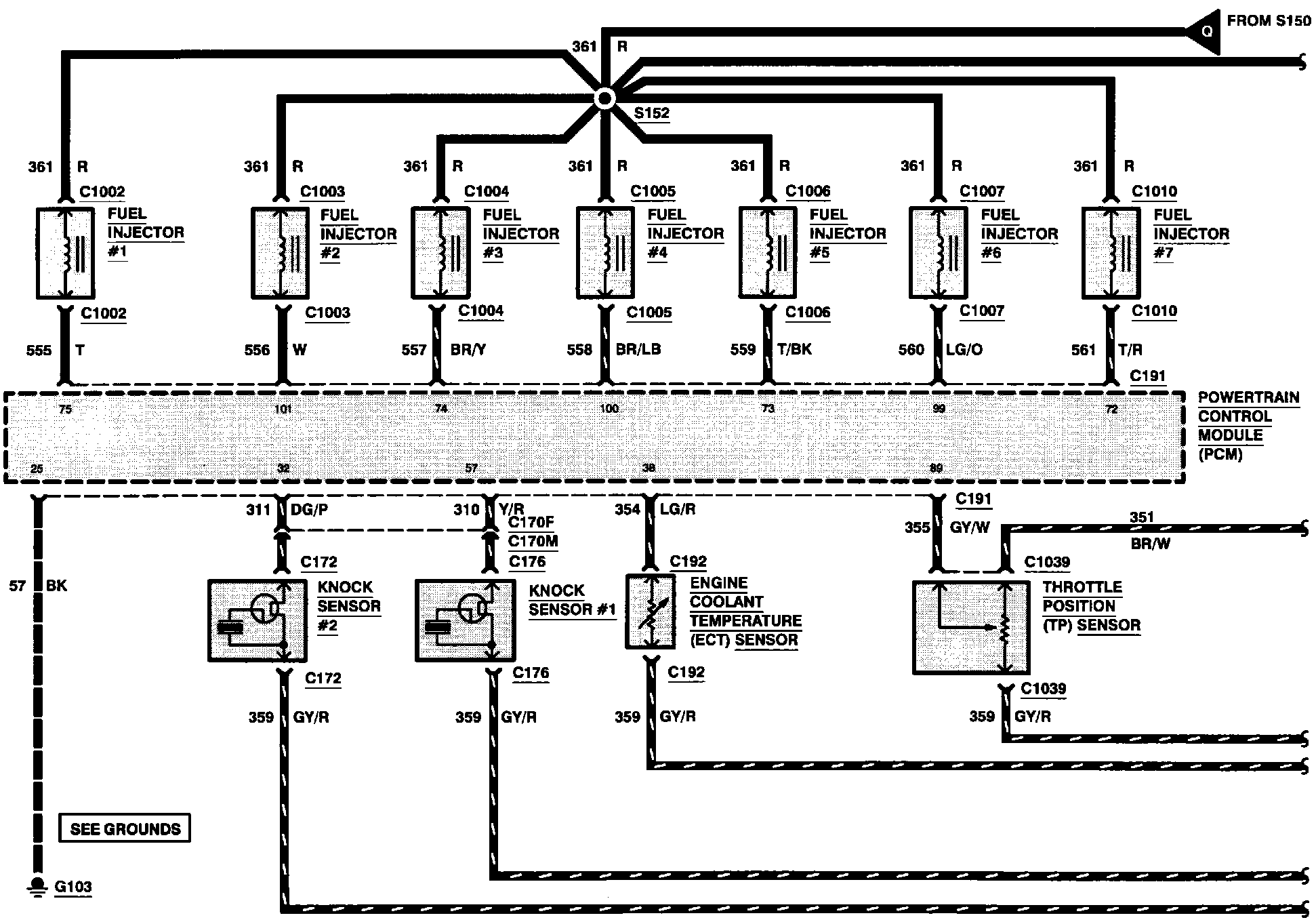

Engine Controls (Part 3 Of 13):

ENGINE COOLANT TEMPERATURE SENSOR
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
FUEL INJECTOR #4
FUEL INJECTOR #5
FUEL INJECTOR #6
FUEL INJECTOR #7
KNOCK SENSOR #1
KNOCK SENSOR #2
THROTTLE POSITION SENSOR

Engine Controls (Part 4 Of 13):

AX4N TRANSAXLE
DELTA PRESSURE FEEDBACK EGR SENSOR
EGR VACUUM REGULATOR SOLENOID VALVE
EVAPORATIVE EMISSION CANISTER PURGE VALVE
FUEL INJECTOR #8
INTAKE AIR TEMPERATURE SENSOR
TURBINE SHAFT SPEED SENSOR

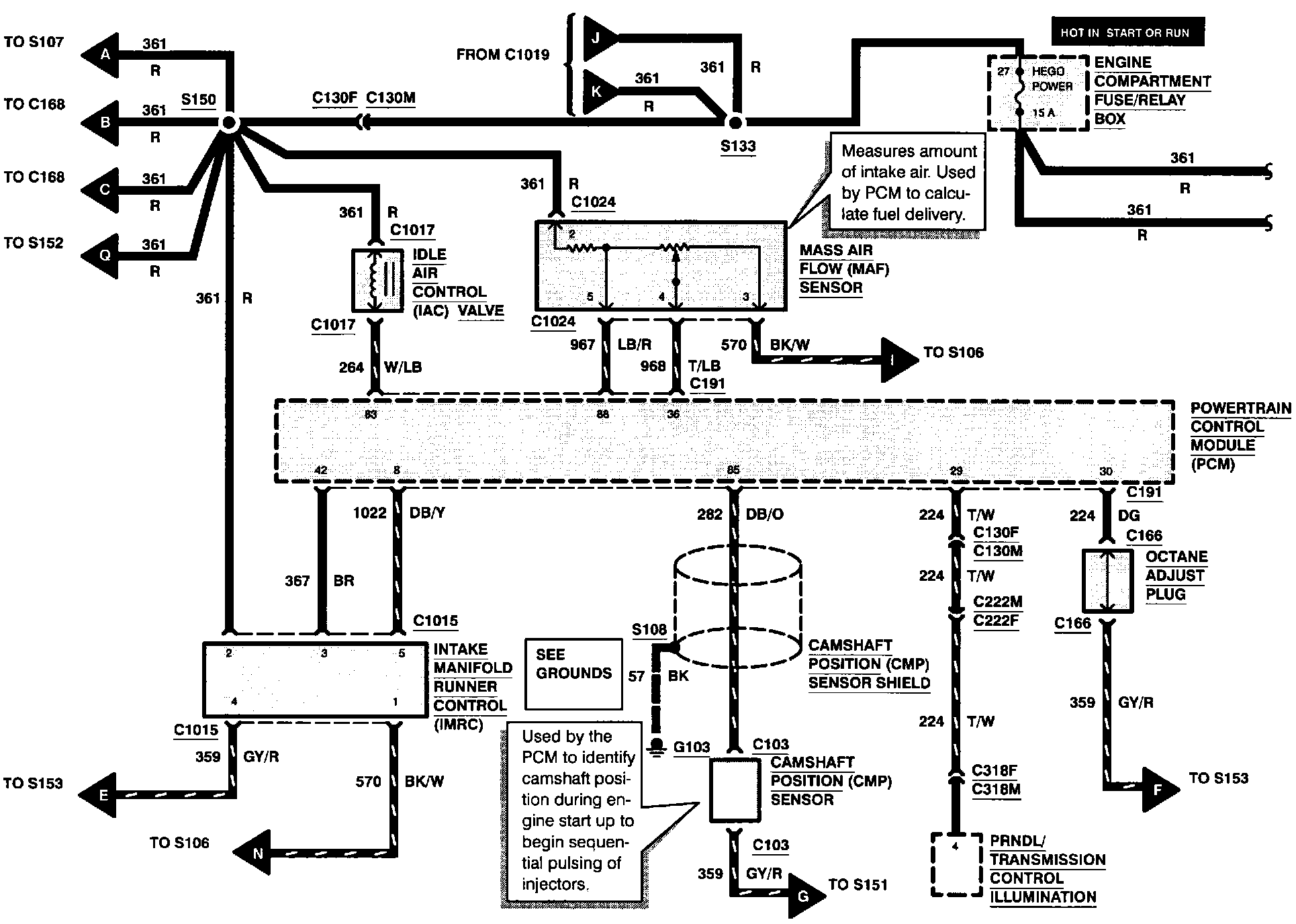

Engine Controls (Part 5 Of 13):

CAMSHAFT POSITION SENSOR
ENGINE COMPARTMENT FUSE/RELAY BOX
IDLE AIR CONTROL VALVE
INTAKE MANIFOLD RUNNER CONTROL
MASS AIR FLOW SENSOR
OCTANE ADJUST PLUG
PRNDL/TRANSMISSION CONTROL ILLUMINATION

Engine Controls (Part 6 Of 13):

CANISTER VENT
HEATED OXYGEN SENSOR #11
HEATED OXYGEN SENSOR #12
HEATED OXYGEN SENSOR #21
HEATED OXYGEN SENSOR #22

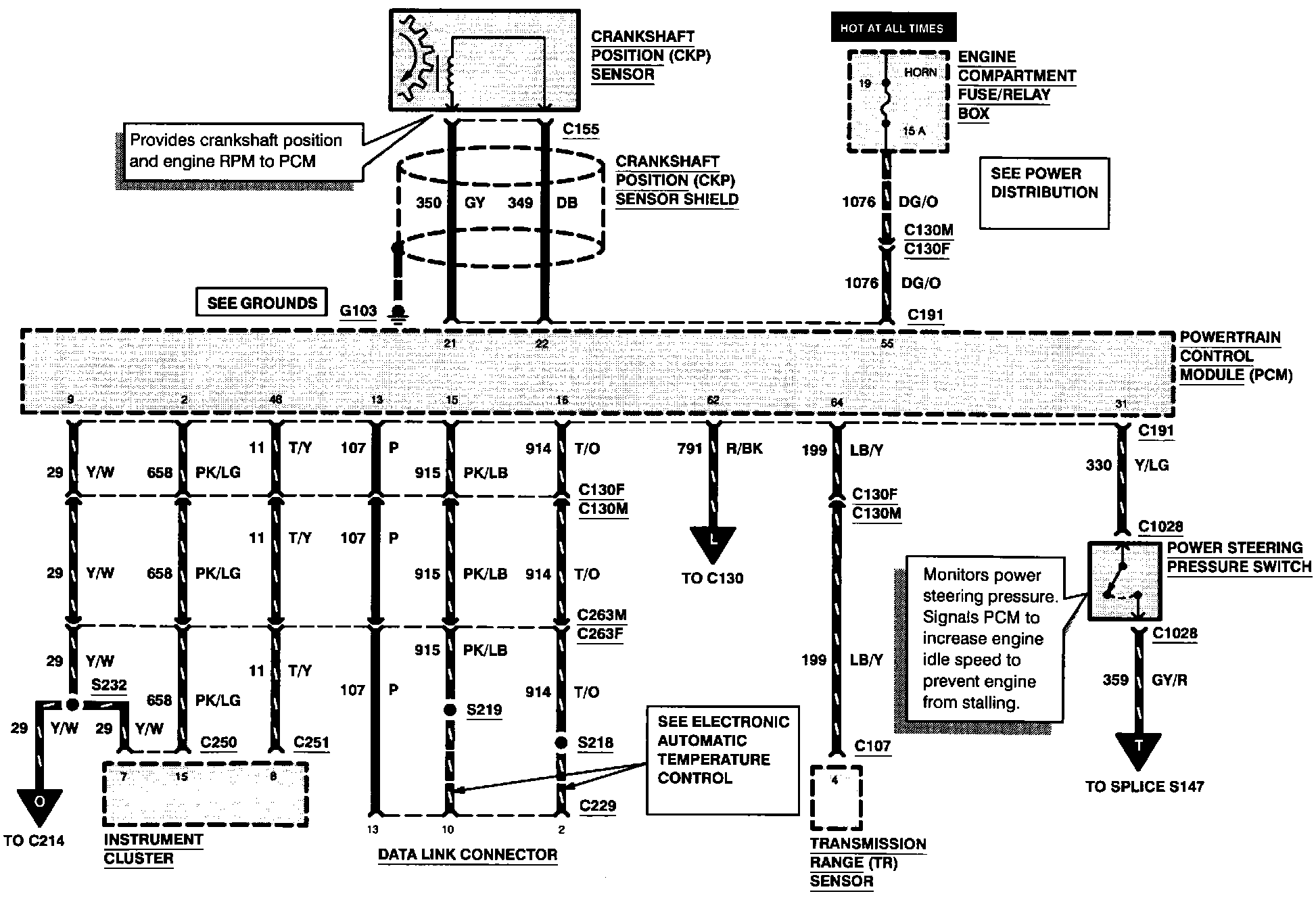

Engine Controls (Part 7 Of 13):

CRANKSHAFT POSITION SENSOR
DATA LINK CONNECTOR
ENGINE COMPARTMENT FUSE/RELAY BOX
INSTRUMENT CLUSTER
POWER STEERING PRESSURE SWITCH
TRANSMISSION RANGE SENSOR

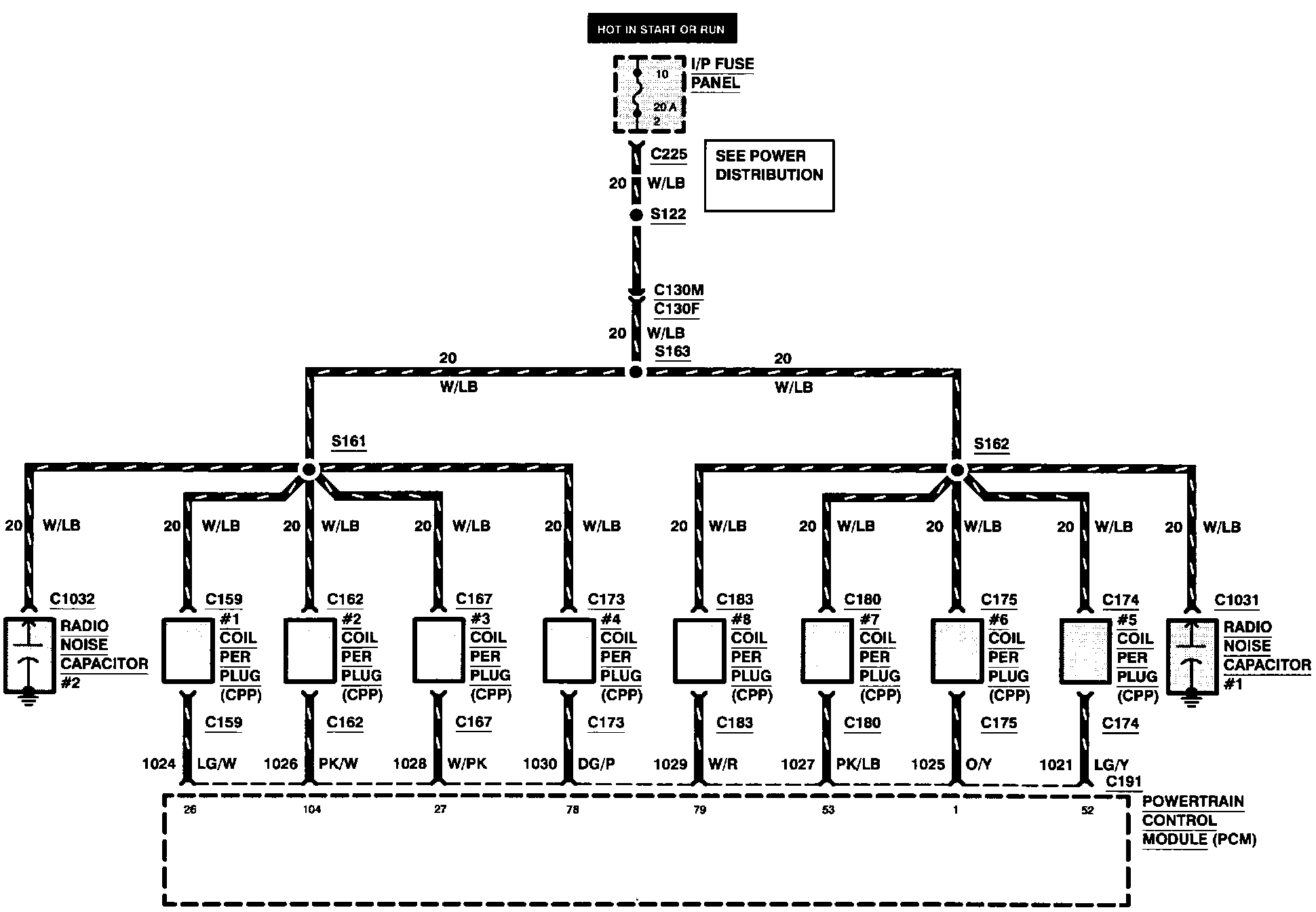

Engine Controls (Part 8 Of 13):

COIL PER PLUG #1
COIL PER PLUG #2
COIL PER PLUG #3
COIL PER PLUG #4
COIL PER PLUG #5
COIL PER PLUG #6
COIL PER PLUG #7
COIL PER PLUG #8
I/P FUSE PANEL
RADIO NOISE CAPACITOR #1
RADIO NOISE CAPACITOR #2

Engine Controls (Part 9 Of 13):

ANTI-LOCK BRAKE CONTROL MODULE
FUEL PUMP/FUEL GAUGE SENDER
GENERIC ELECTRONIC MODULE
INSTRUMENT CLUSTER
I/P FUSE PANEL
SEMI-ACTIVE RIDE CONTROL MODULE
SPEED CONTROL MODULE
VEHICLE SPEED SENSOR

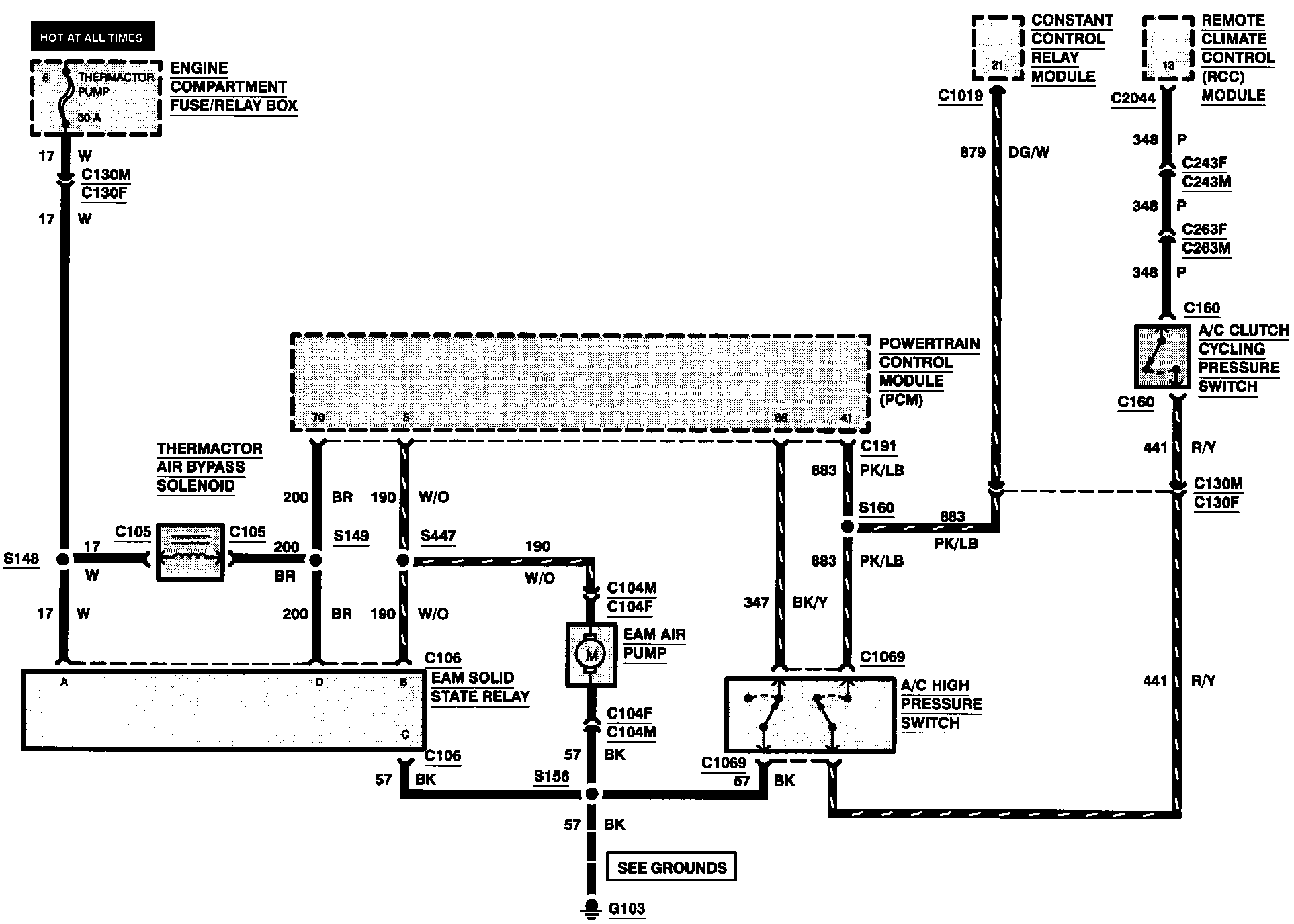

Engine Controls (Part 10 Of 13):

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C HIGH PRESSURE SWITCH
CONSTANT CONTROL RELAY MODULE
ELECTRIC AIR MANAGEMENT AIR PUMP
ELECTRIC AIR MANAGEMENT SOLID STATE RELAY
ENGINE COMPARTMENT FUSE/RELAY BOX
REMOTE CLIMATE CONTROL MODULE
THERMACTOR AIR BYPASS SOLENOID

Engine Controls (Part 11 Of 13):

ANTI-LOCK BRAKE CONTROL MODULE
BRAKE ON/OFF SWITCH
I/P FUSE PANEL
LAMP OUT WARNING MODULE
REMOTE ANTI-THEFT PERSONALITY MODULE
SHIFT LOCK ACTUATOR
SPEED CONTROL MODULE

Engine Controls (Part 12 Of 13):

DATA LINK CONNECTOR
INSTRUMENT CLUSTER
REMOTE ANTI-THEFT PERSONALITY MODULE

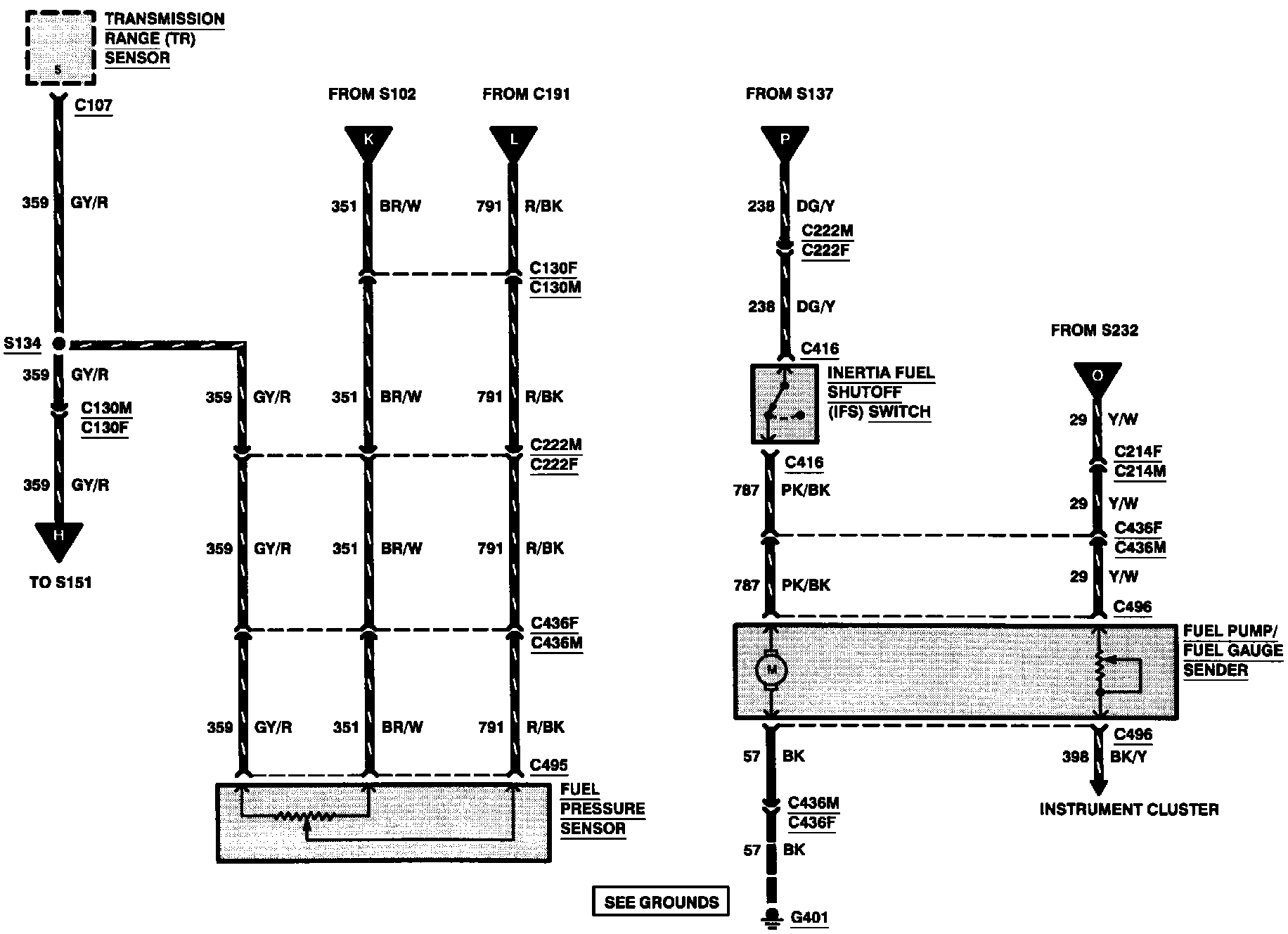

Engine Controls (Part 13 Of 13):

FUEL PRESSURE SENSOR
FUEL PUMP/FUEL GAUGE SENDER
INERTIA FUEL SHUTOFF SWITCH
TRANSMISSION RANGE SENSOR
