Automatic Transmission/Transaxle
>>
Valve Body, A/T
Valve Body, A/T

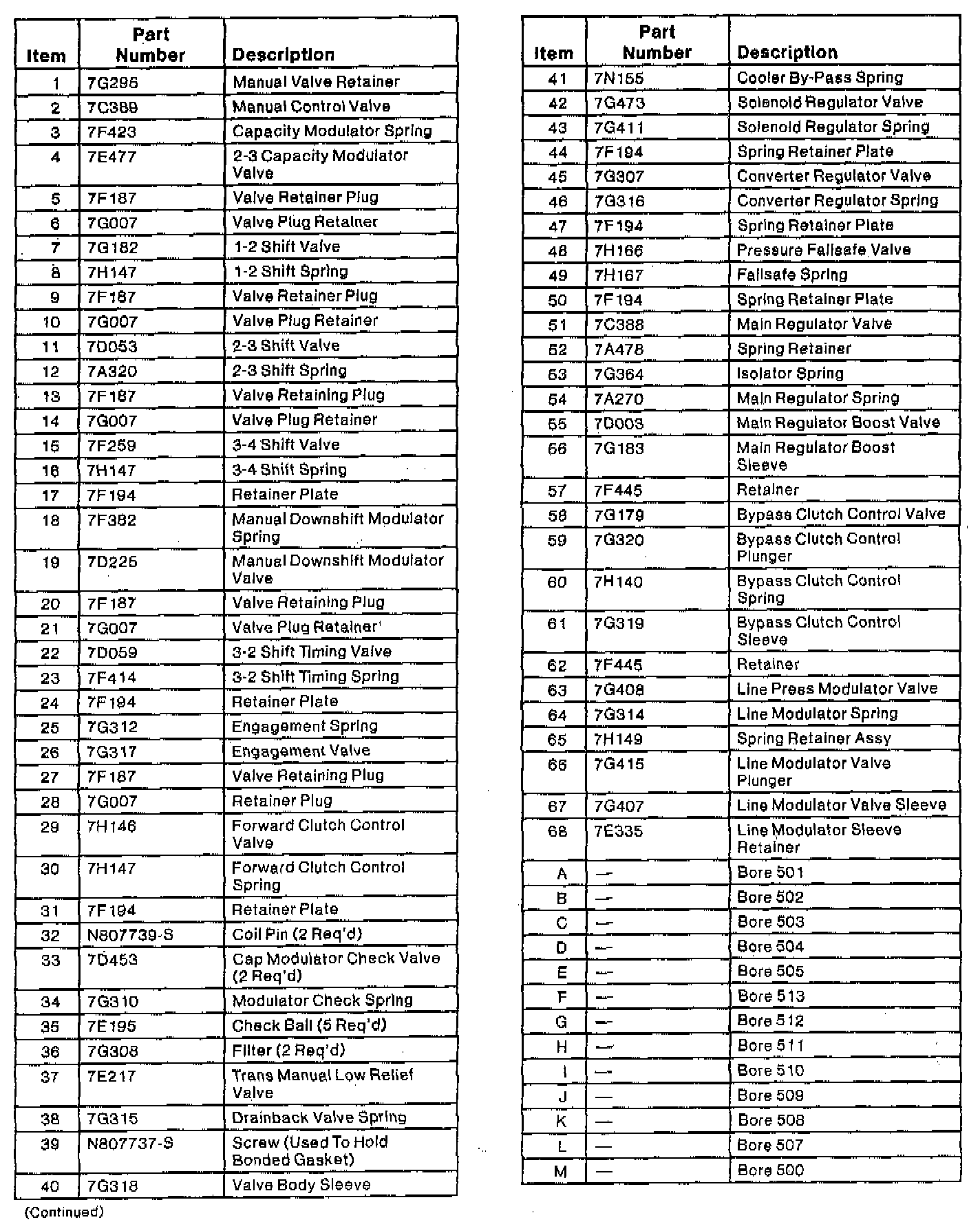

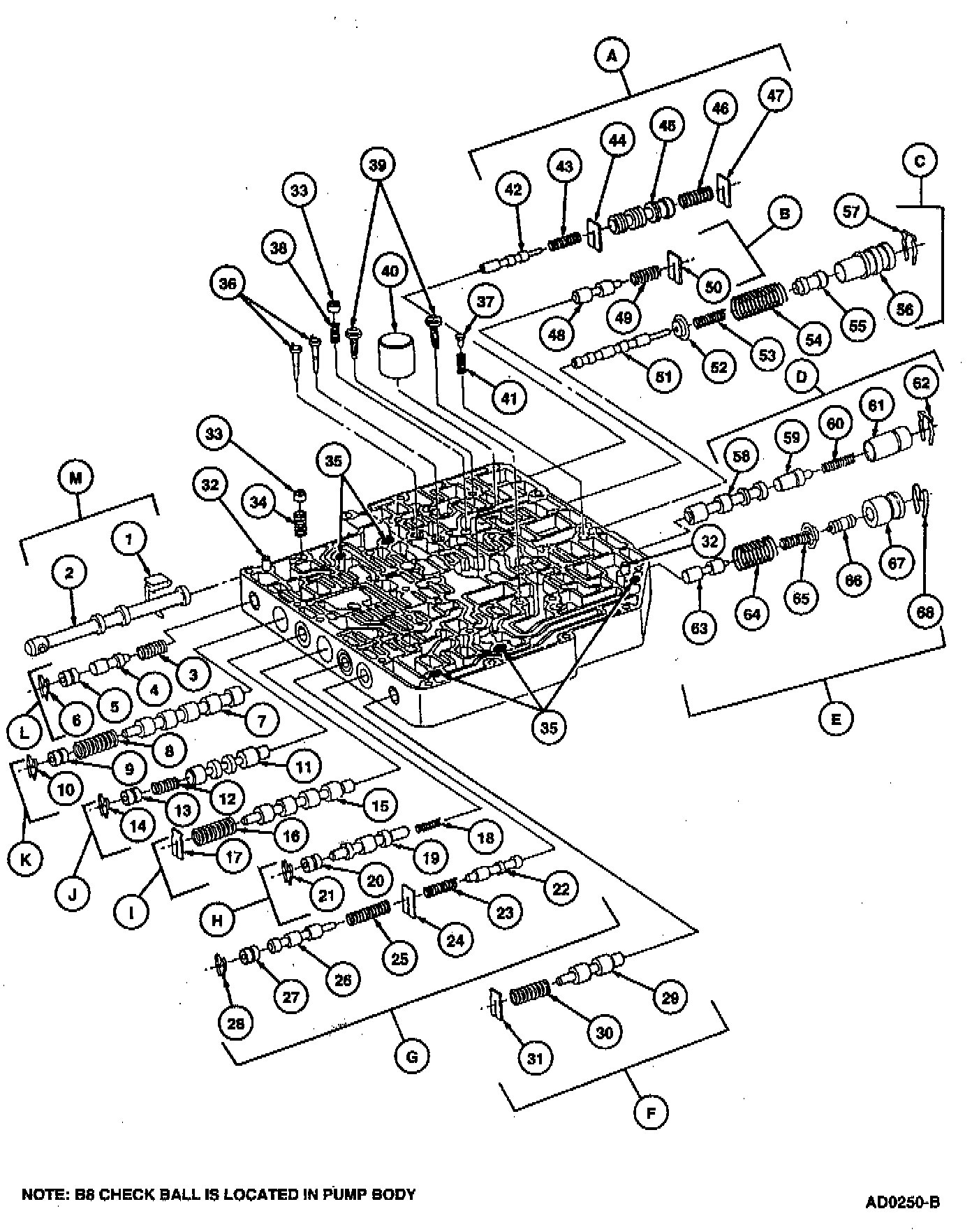

Main Control Valve Body Assembly, (Part 1 Of 2):
Main Control Valve Body Assembly, (Part 2 Of 2):
