Home >> Ford >> 1997 >> Taurus V8-3.4L VIN N SHO >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Specifications >> Tightening Specifications >> Camshaft Bearing Cap

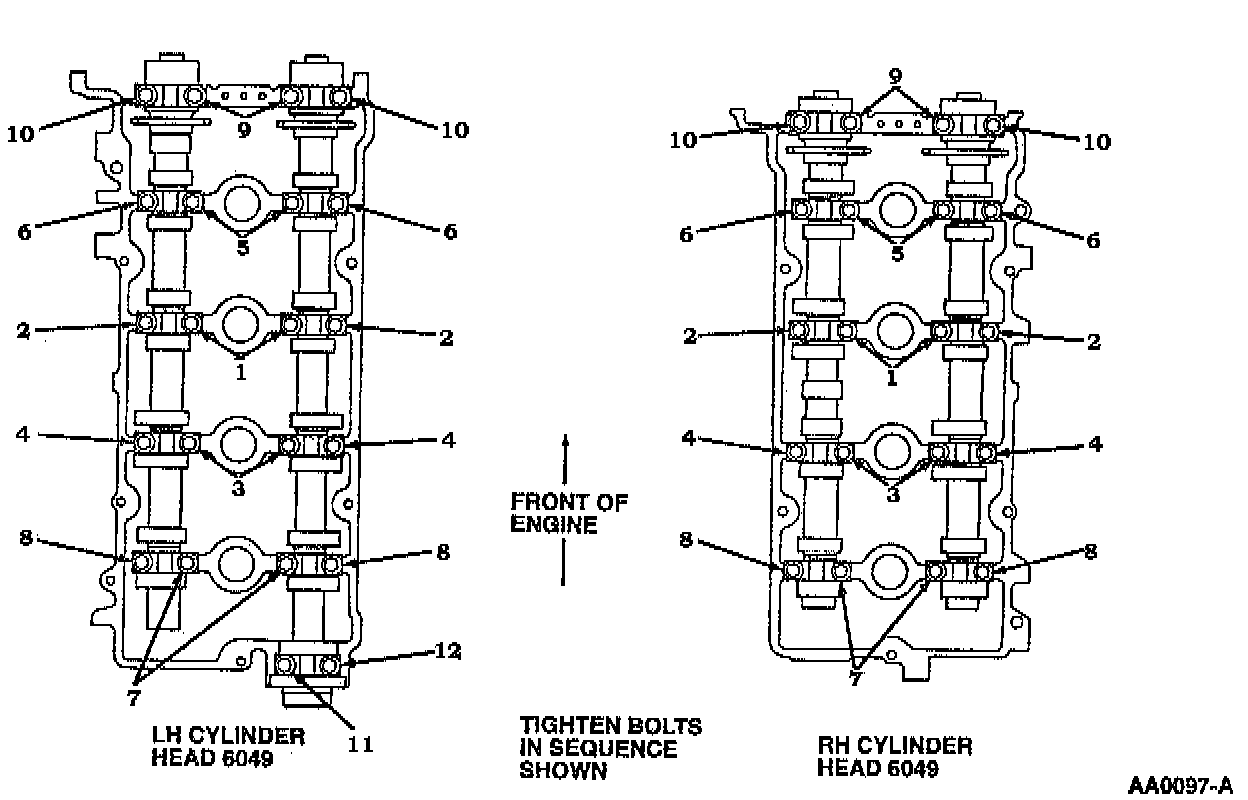

Camshaft Bearing Cap






Tightening Specifications
Step 1: 7-12 Nm (62-106 inch lbs.)
Step 2: 16-21 Nm (12-15 ft. lbs.)
